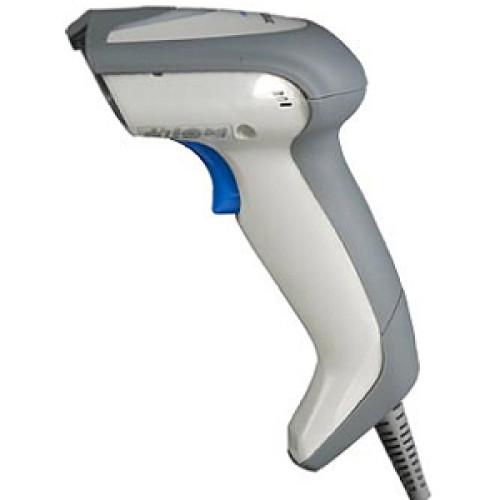

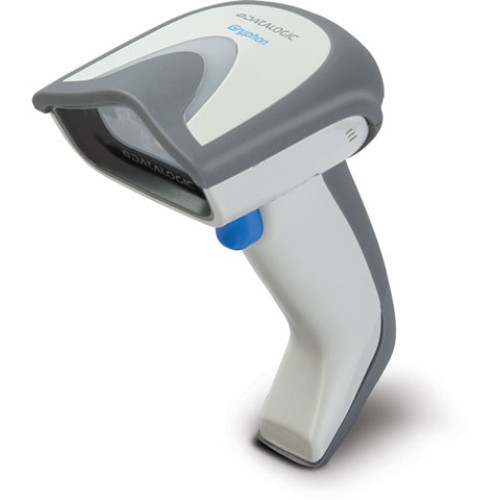

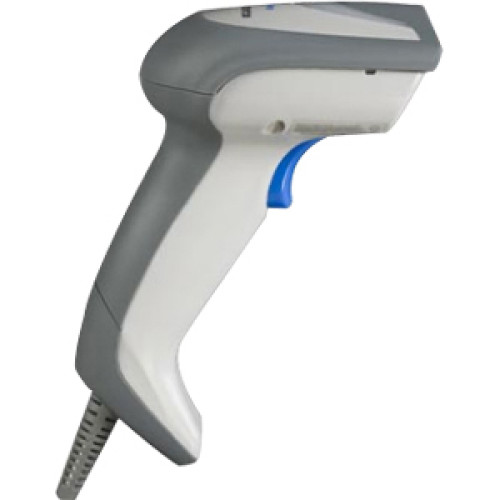

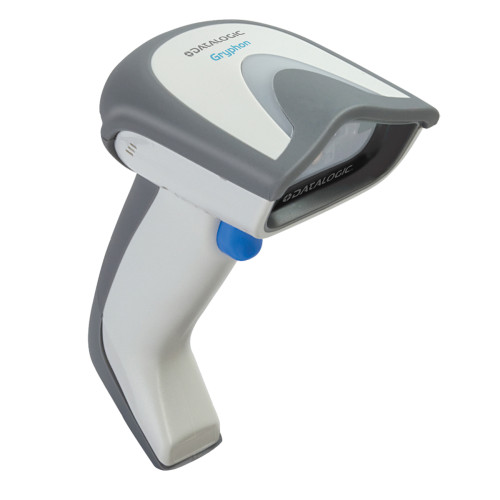

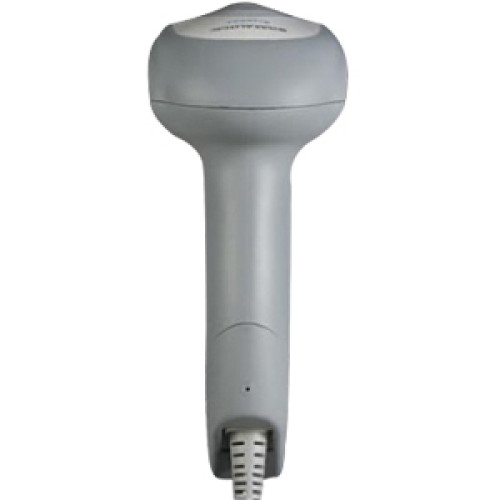

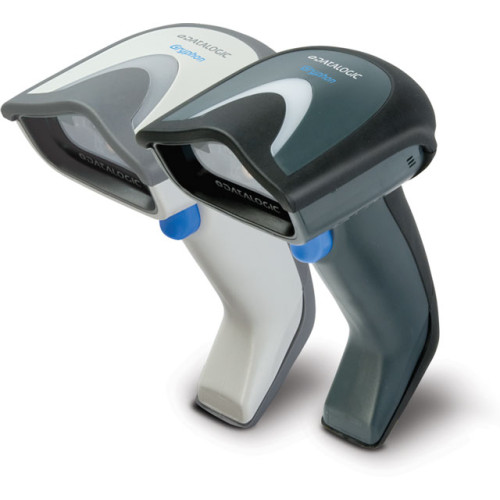

GD4130-WHK1 - Datalogic Gryphon I: GD 4100 Bar code Scanner

The Datalogic Gryphon I: GD 4100 readers' stylish enclosures, reduced weight and physical dimensions together with a 1.8 m / 5.9 ft drop resistance and IP42 sealing rating produce a reliable, ergonomic solution with the combined excellence of ease of use and advanced reading capabilities. The Gryphon I: GD 4100 reader offers a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232. Both interface sets offer configuration flexibility and are easily adapted for migration or future changes to the host system. Remote Host Download lowers the service costs and improves operations allowing for hassle-free field upgrades while the desktop Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, especially for inexperienced users.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
GD4130-WHK1 Gryphon I: GD 4130, USB Kit. Linear Imager, USB/RS-232/Keyboard wedge/Wand Emulation interfaces. Includes USB Cable. Color: White Ships Free Today $142.58
Retail $258
Save 44%

GD4130-WHK1 Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Scan Rate: 325 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 2.36" - 7.09"@5 mil
    • 1.38" - 11.81"@7.50 mil
    • 0.79" - 17.72"@10 mil
    • 1.18" - 23.62"@13 mil
    • 1.18" - 31.50"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 4100
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: Gryphon GD4130
  • Product Name: Gryphon GD4130 Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Color: White
  • Weight (Approximate): 6 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information: Supported Interface:
Part # Description Availability Price Order
W-GD41-3 Datalogic Service Contract - 3 year, Gryphon I GD4100, Ease of Care 2 Days Comprehensive
Ships Free in 3-5 Days
$18.00
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00

The Datalogic GD4130-WHK1 is also known as Data Logic DTL-GD4130-WHK1 or GD4130WHK1 .
