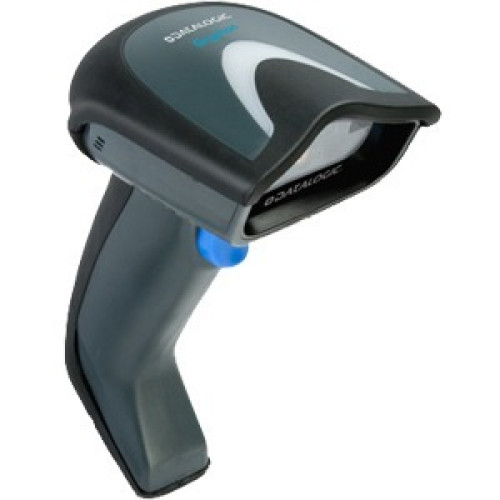

GD4410-BKK20 - Datalogic Gryphon I: GD 4400 B 2D Bar code Scanner

The Datalogic Gryphon I: GD 4400 B 2D imager provides snappy, omnidirectional reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. For mobile marketing or ticketing applications, this scanner also offers excellent reading performance on bar codes from mobile devices. With enhanced optics, the Gryphon I: GD 4400 B 2D imager boasts improved motion tolerance and high speed imaging to read fast moving codes. This reader also eliminates the need for separate equipment for signature capture and document scanning applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
GD4410-BKK20 GD4410, RS-232 Serial Kit for Magellan. 2D imager, IBM46xx/OEM USB/RS-232 interfaces. Includes RS-232 Cable (Part# CAB-362). Color: Black.
Ships Free in 24-48 Hours
$234.55
Retail $417
Save 43%

GD4410-BKK20 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • British Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • British Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 7 mil
  • Depth of Field:
    • 1.60" - 7.50"@5 mil - Code 39
    • 0.40" - 11.80"@10 mil - Code 39
    • 0.80" - 6.30"@10 mil - Data Matrix
    • 0 mil - 9.30"@15 mil - Data Matrix
    • 0.60" - 15.70"@13 mil - EAN-13
    • 0.20" - 8.60"@10 mil - PDF417
    • 1.20" - 4.90"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 4000
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: GD4410
  • Product Name: Gryphon GD4410 Handheld Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 6.90 oz

Interfaces/Ports

  • Host Interface:
    • IBM 46XX
    • Serial
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • China RoHS
    • RoHS
  • Package Contents:
    • Gryphon GD4410 Handheld Barcode Reader
    • RS-232 Cable
    • Gryphon GD4410 Handheld Barcode Reader
    • RS-232 Cable

Warranty

  • Limited Warranty: 5 Year
Part # Description Availability Price Order
STD-G040-BK Datalogic Dark gray gooseneck stand for Gryphon Ships Free Today $23.46
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$48.00
Q-GD43-5 Datalogic Service Contract - 5 year, Gryphon L GD4300, Ease of Care Overnight Replacement Comprehensive
Ships Free in 24-48 Hours
$42.00

The Datalogic GD4410-BKK20 is also known as Data Logic DTL-GD4410-BKK20 or GD4410BKK20 .
