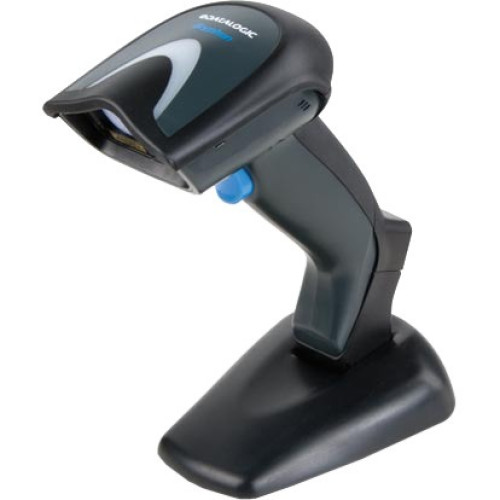

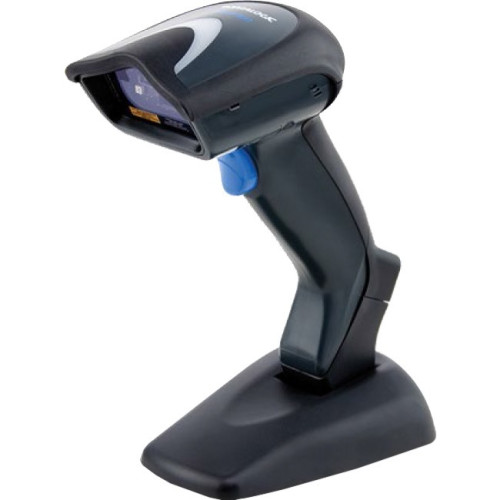

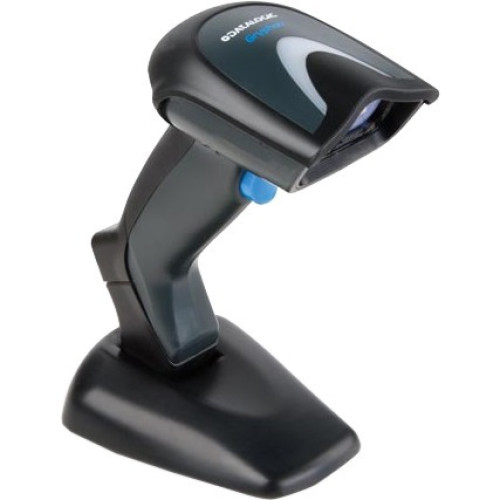

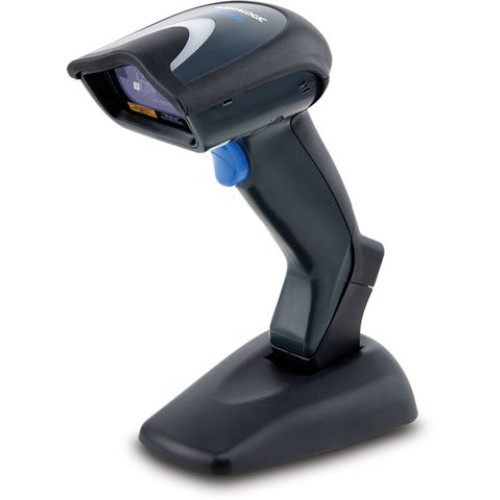

GD4430-BKK1B - Datalogic Gryphon I: GD 4400 B 2D Bar code Scanner

The Datalogic Gryphon I: GD 4400 B 2D imager provides snappy, omnidirectional reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. For mobile marketing or ticketing applications, this scanner also offers excellent reading performance on bar codes from mobile devices. With enhanced optics, the Gryphon I: GD 4400 B 2D imager boasts improved motion tolerance and high speed imaging to read fast moving codes. This reader also eliminates the need for separate equipment for signature capture and document scanning applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
GD4430-BKK1B Gryphon I GD4400-B, Permanent Base Kit. Includes 2D Imager, USB/RS-232/KBW/WE Interfaces. Includes All-in-One permanent base and USB cable. Color: Black. Ships Free Today $317.43
Retail $458
Save 30%

GD4430-BKK1B Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • British Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • British Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.90" - 3.60"@3 mil - Code 39
    • 0.30" - 4.50"@5 mil - Code 39
    • 1.10" - 2.40"@5 mil - Data Matrix
    • 0.40" - 6.80"@13 mil - EAN-13
    • 0.70" - 2.70"@4 mil - PDF417
    • 0 mil - 5.60"@10 mil - PDF417
    • 0.80" - 1.70"@6.70 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 4000
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: GD4430
  • Product Name: Gryphon GD4430 Handheld Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: White
  • Weight (Approximate): 6.88 oz

Interfaces/Ports

  • Host Interface:
    • Serial
    • USB
    • Keyboard Wedge

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS

Warranty

  • Limited Warranty: 5 Year
