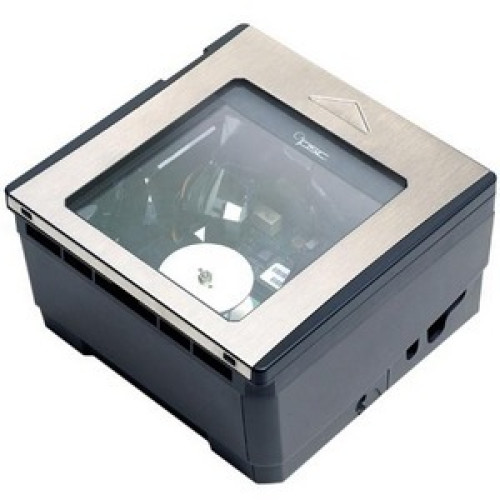

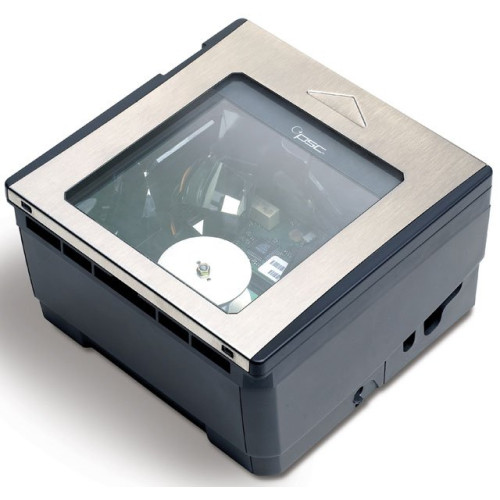

Datalogic Magellan 2300HS Barcode Scanner
Part #: M2303-00111-0104AR | SKU: DAT61765

The Datalogic Magellan 2300HS includes the premiere-level Magellan scan technology to power one of the fastest and user-friendly horizontal scanners on the market. The Magellan 2300HS's large, dense scan area improves both checkout speed (since items scan regardless of their angle) and operator comfort (less twisting of items reduces wrist strain). The Magellan 2300HS not only reads popular barcode symbologies but also Reduced Space Symbology (RSS). Combining the flash memory for software upgrades, system diagnostic reporting, Datalogic's Productivity Index Reporting software and the high-performance FirstStrike decoding, the Magellan 2300HS will perform at a high level in any installation.

Datalogic Magellan 2300HS Barcode Scanner

Part Details: Datalogic Magellan 2300HS Horizontal Bar Code Reader - Wired

Additional Information

Manufacturer Datalogic
Model Name Magellan 2300HS

Technical Information

  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC Versions A&E
    • UPC Supplementals (Bookland & Coupon Code)
    • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
    • Reduced Space Symbology (RSS-14, expanded & stacked)
    • EAN 8, 13
    • JAN 8, 13
    • EAN/JAN two label
    • UCC/EAN 128
    • Code 39 (with full ASCII)
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Italian Pharmacode
    • Codabar/NW7
    • MSI/Plessey
    • UPC Versions A&E
    • UPC Supplementals (Bookland & Coupon Code)
    • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
    • Reduced Space Symbology (RSS-14, expanded & stacked)
    • EAN 8, 13
    • JAN 8, 13
    • EAN/JAN two label
    • UCC/EAN 128
    • Code 39 (with full ASCII)
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Italian Pharmacode
    • Codabar/NW7
    • MSI/Plessey

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 2300HS
  • Product Name: Magellan 2300HS Horizontal Barcode Reader
  • Product Line: Magellan

Physical Characteristics

  • Height: 6"
  • Width: 6"
  • Depth: 3.4"
  • Weight (Approximate): 2.50 lb

Interfaces/Ports

  • Host Interface: Multi-interface

Warranty

  • Limited Warranty: 1 Year

Other

  • Additional Information: Supported Interface:
Extended Details
