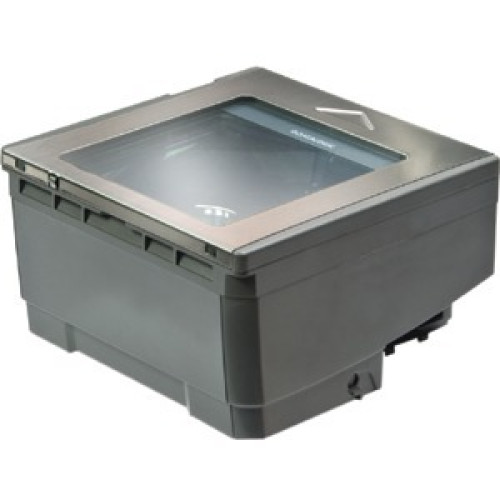

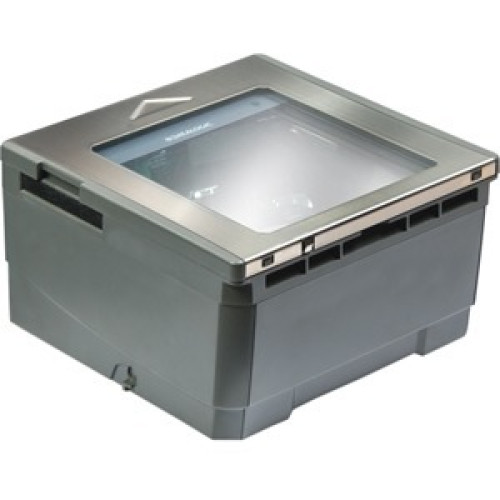

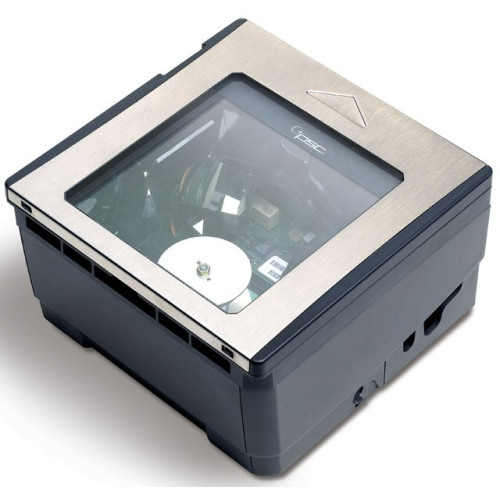

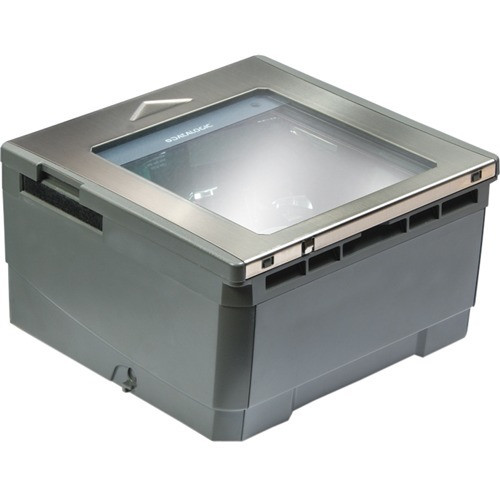

M230B-00101-00000R - Datalogic Magellan 2300 HS Bar code Scanner

The Datalogic Magellan 2300 HS includes the premiere-level Magellan scan technology to power one of the fastest and user-friendly horizontal scanners on the market. The Magellan 2300 HS's large, dense scan area improves both checkout speed (since items scan regardless of their angle) and operator comfort (less twisting of items reduces wrist strain). The Magellan 2300 HS not only reads popular bar code symbologies but also Reduced Space Symbology (RSS). Combining the flash memory for software upgrades, system diagnostic reporting, Datalogic's Productivity Index Reporting software and the high-performance FirstStrike decoding, the Magellan 2300 HS will perform at a high level in any installation.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
M230B-00101-00000R Magellan 2300 HS, , Horizontal Scanner, 1D Laser Scanner, Multi-Interface, Sapphire Glass, Standard Counter Mount, Interface Cable and Power Supply Sold Separately. Ships Free Today $586.93
Retail $1047
Save 43%
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Datalogic Magellan 2300 HS service contract  |

M230B-00101-00000R Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Scanning Distance: 6"
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 2300HS
  • Product Name: Magellan 2300HS In-Counter Barcode Reader
  • Product Line: Magellan

Physical Characteristics

  • Height: 6"
  • Width: 3.4"
  • Depth: 6"
  • Weight (Approximate): 2.50 lb

Interfaces/Ports

  • Host Interface:
    • Keyboard Wedge
    • Powered USB
    • Serial
    • USB
    • IBM 46XX
Part # Description Availability Price Order
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$48.00
Q-MGL2300HS-5 Datalogic Service Contract - 5 year, Magellan 2300HS, Ease of Care Overnight Replacement Comprehensive
Ships Free in 24-48 Hours
$165.00

The Datalogic M230B-00101-00000R is also known as Data Logic DTL-M230B0010100000R or M230B0010100000R .
