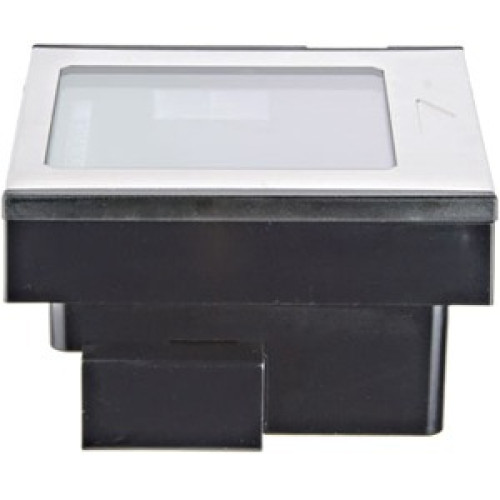

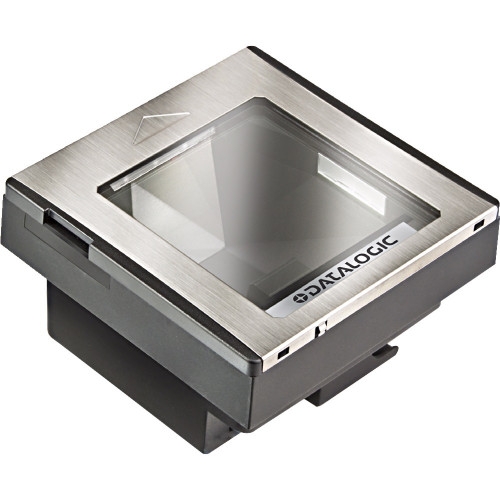

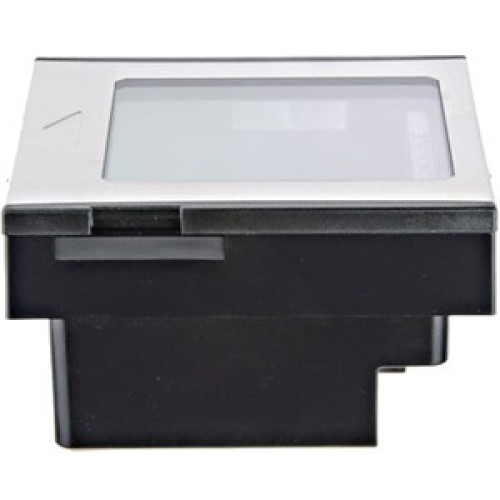

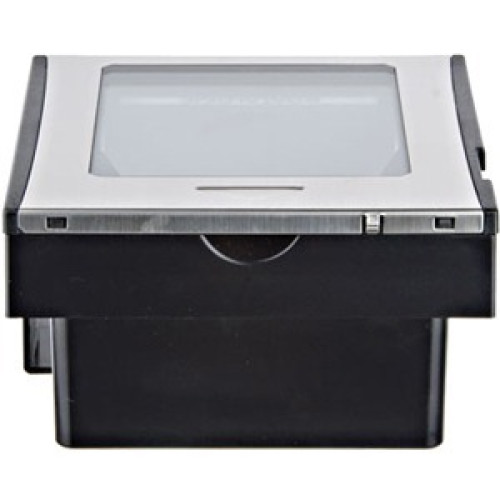

M3301-010210-01604 - Datalogic Magellan 3300 HSi Bar code Scanner

The Datalogic Magellan 3300 HSi bar code reader brings Datalogic's imaging technology to the high-volume point-of-sale. Along with the 3200VSi vertical reader, they are the first bar code scanners to duplicate the speed and wide field-of-view of high-performance omnidirectional laser scanners while adding the benefits associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read bar codes such as truncated (short), out-of-spec, poorly printed and GS1 DataBar codes, and provides support for both linear (1D) and 2D label decoding. The Magellan 3300 HSi imager enables both sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
M3301-010210-01604 Magellan 3300 HSi, Barcode Reader Kit (USB 1D/2D LLT Mount, Power supply, Power cord, 15 ft. Cable)
Ships Free in 3-5 Days
$674.38
Retail $1203
Save 43%
Information:   |  Specifications  |  Datalogic's Magellan 3300 HSi page  |
Accessories:   |  Accessories/Options  |  Datalogic Magellan 3300 HSi service contract  |

M3301-010210-01604 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Scanning Distance: 4"
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • 2D Codes:
    • Aztec Code
    • Data Matrix (ECC200 Only)
    • MaxiCode
    • QR Code
    • Stacked Codes:
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MicroPDF417
    • PDF417
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • 2D Codes:
    • Aztec Code
    • Data Matrix (ECC200 Only)
    • MaxiCode
    • QR Code
    • Stacked Codes:
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MicroPDF417
    • PDF417
  • Maximum Scan Resolution: 5 mil

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 3300HSi
  • Product Name: Magellan 3300HSi In-Counter Barcode Reader
  • Product Line: Magellan

Physical Characteristics

  • Height: 6"
  • Width: 6"
  • Depth: 3.4"
  • Weight (Approximate): 1.75 lb

Interfaces/Ports

  • Host Interface:
    • USB
    • Keyboard Wedge

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
  • Package Contents:
    • Magellan 3300HSi In-Counter Barcode Reader
    • Sapphire Glass
    • Counter/Wall Mount
    • Power Brick/Cord
    • 15 ft Cable
    • Magellan 3300HSi In-Counter Barcode Reader
    • Sapphire Glass
    • Counter/Wall Mount
    • Power Brick/Cord
    • 15 ft Cable

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
Q-MGL3300HSI-3 Datalogic Service Contract - 3 year, Magellan 3300HSi, Ease of Care Overnight Replacement Comprehensive
Ships Free in 3-5 Days
$91.00

The Datalogic M3301-010210-01604 is also known as Data Logic DTL-M330101021001604 or M330101021001604 .
