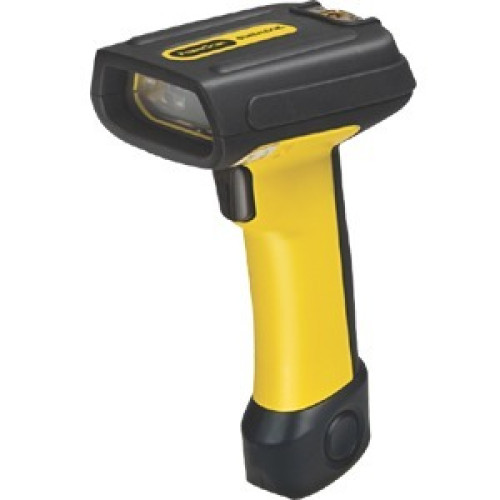

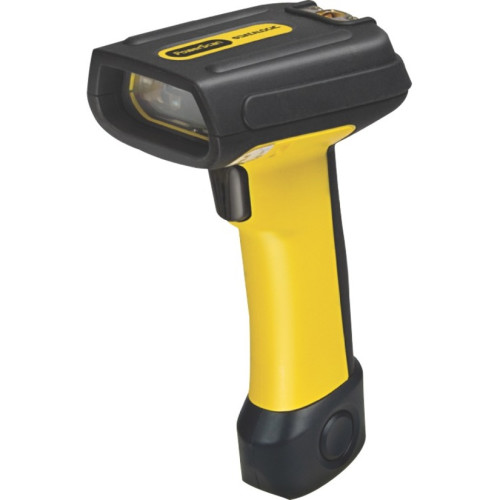

PBT7100-BBK22-US - Datalogic Power Scan PBT 7100 Bar code Scanner

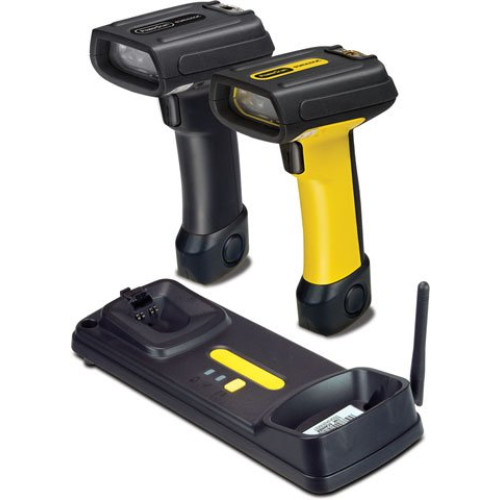

The Datalogic Power Scan PBT 7100 features the fastest speed-to-read on the market - 390 scans/second. The Power Scan PBT 7100 also features the Datalogic "Green Spot" and loud beeper for good read feedback, Bluetooth Wireless Technology with up to 100 m / 328 ft range and connectivity through the Base Station or directly to other Bluetooth devices. Durability is paramount, with water and particulate sealing rating of IP65, a drop resistance to 2.0 m / 6.5 ft and a 25kV electrostatic protection (air discharge), making the Power Scan PBT 7100 ideal for tough environments.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
PBT7100-BBK22-US Power Scan PBT 7100, PowerScan 7100BT Industrial Handheld Linear Imager Barcode Reader (RS-232, US Power supply, Power cord, Cable and No Pointer) - Color: Black/Black

PBT7100-BBK22-US Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 0.60" - 5.50"@5 mil
    • 0 mil - 17.30"@7.50 mil
    • 0 mil - 23.60"@10 mil
    • 0 mil - 31.50"@13 mil
    • 0 mil - 46.90"@20 mil
    • 0.80" - 94.50"@40 mil
    • 2" - 118.10"@55 mil - Reflective
    • 5.10" - 17.39 ft@100 mil - Reflective

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PBT7100
  • Product Name: PBT7100 Handheld Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8"
  • Width: 3"
  • Depth: 4.5"
  • Color: Black
  • Weight (Approximate): 12.50 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS

Battery Information

  • Maximum Number of Scans per Full Charge: 22000
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
Q-PBT71-3 Datalogic Service Contract - 3 year, PS 7100BT QUICK REPLACEMENT 3 Year EXT
Ships Free in 3-5 Days
$72.00

The Datalogic PBT7100-BBK22-US is also known as Data Logic DTL-PBT7100-BBK22-US or PBT7100BBK22US .
