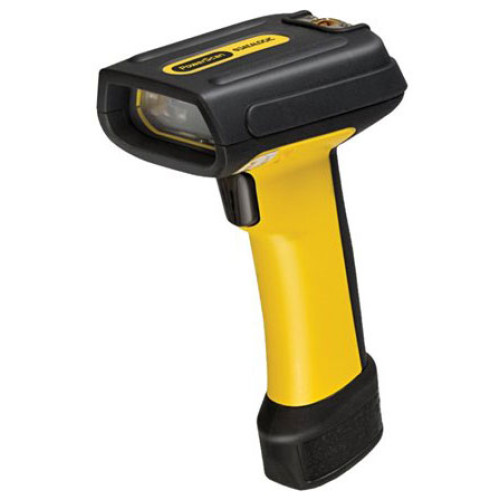

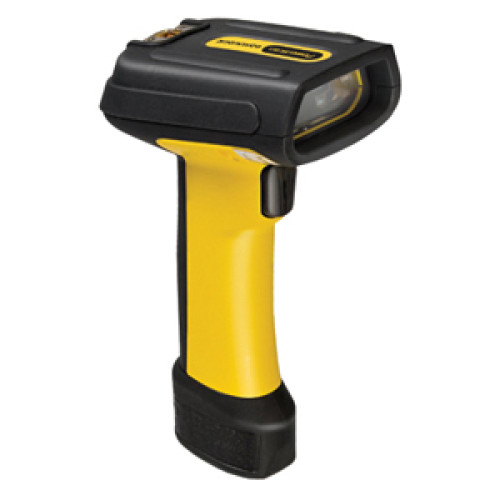

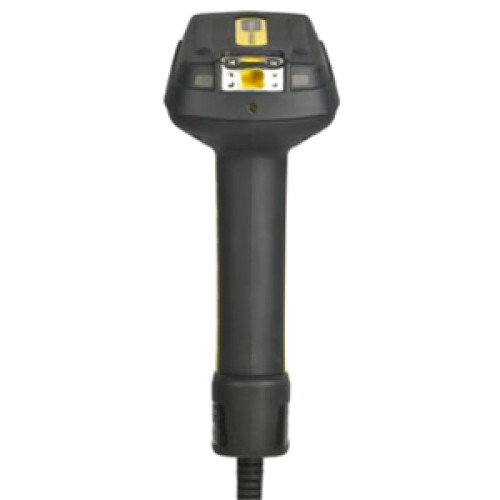

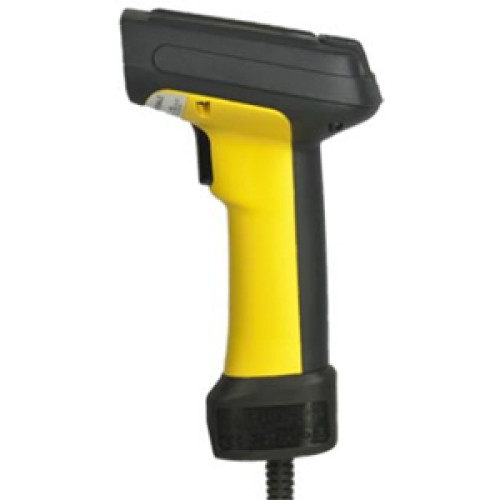

PD7130-YBK1 - Datalogic Power Scan PD 7100 Bar code Scanner

The Datalogic Power Scan PD 7100 is a rugged industrial linear imager that offers the highest standards of reliability, robustness and performance plus exceptional value. The unit is 2-meter drop-tested to concrete, IP65 rated against water and dust, and capable of operating in the most extreme temperature conditions. Three year standard warranty ensures low total cost of ownership. The Power Scan PD 7100 features advanced code stitching capabilities, making it easier to read poorly printed and damaged codes the first time. The Power Scan PD 7100 is available with two multiple interfaces, depending on application requirements: industrial applications and harsh environments: RS-232, Wedge, Wand Emulation and USB and for POS checkouts: RS-232, IBM 46xx and USB.

Part # Description Availability Price Order
PD7130-YBK1 Power Scan PD 7100, PowerScan PD7130 (USB Kit, CAB-439) - Color: Yellow/Black Ships Free Today $290.74
Retail $589
Save 50%
Information:   |  Datalogic's Power Scan PD 7100 page  |
Accessories:   |  Accessories/Options  |  Datalogic Power Scan PD 7100 service contract  |

PD7130-YBK1 Details

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 390 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Auto discriminates all standard 1D codes
    • GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omni directional
    • 1D / Linearcodes:
    • Auto discriminates all standard 1D codes
    • GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omni directional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 0.60" - 5.50"@5 mil
    • 0 mil - 17.30"@7.50 mil
    • 0 mil - 23.60"@10 mil
    • 0 mil - 31.50"@13 mil
    • 0 mil - 46.90"@20 mil
    • 0.80" - 94.50"@40 mil
    • 2" - 118.20"@55 mil - Reflective
    • 5.10" - 17.39 ft@100 mil - Reflective

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PD7130
  • Product Name: PowerScan PD7130 Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8"
  • Width: 3"
  • Depth: 4.5"

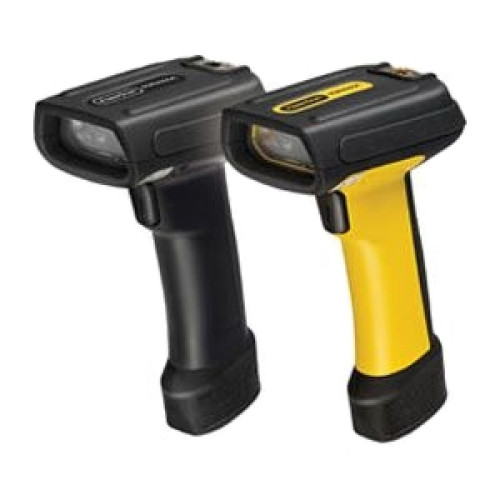

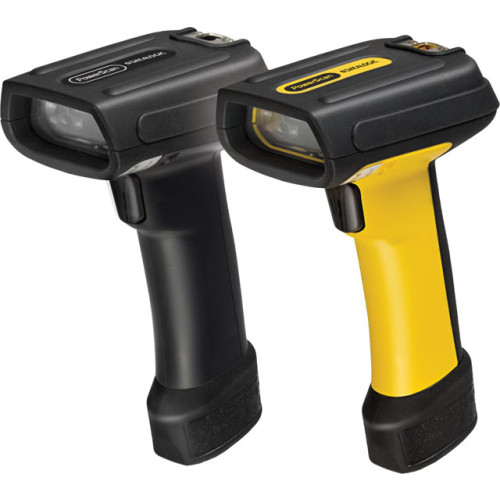

  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 9.90 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
11-0111 Datalogic Universal mounting kit for PD7100 series Ships Free Today $19.73
11-0110 Datalogic Hands-free stand for PBT7100 and PD7100 Ships Free Today $30.00
Retail $40
Save 25%
BCISC-PowerScan-PD7100 BCI 3-Year Extended Warranty Plus, Rest easy with 3 years of technical support and quick replacements on your purchase. You get dedicated technical support specialists 8am-6pm CT, Monday-Friday and quick (overnight turnaround) replacements for products damaged by regular use or accidental breakage. Ships Free Today $64.00

The Datalogic PD7130-YBK1 is also known as Data Logic DTL-PD7130-YBK1 or PD7130YBK1 .
