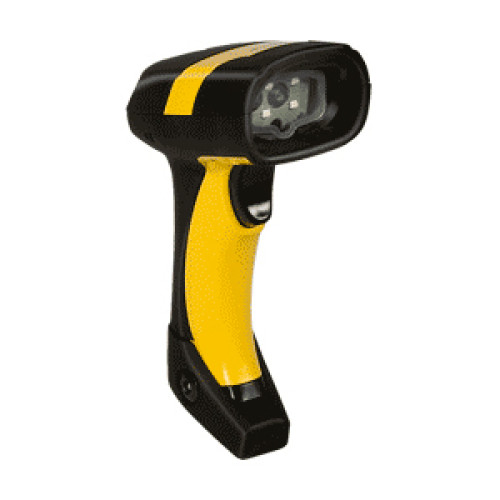

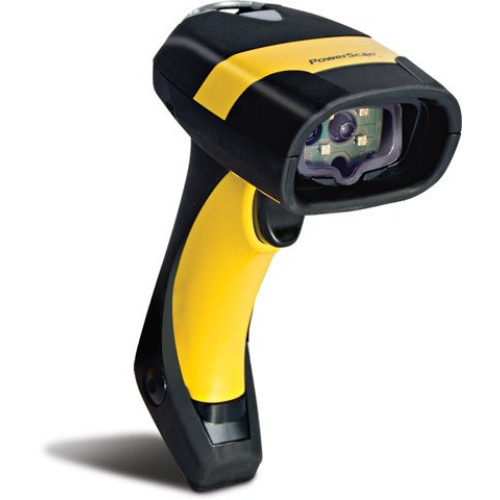

PD8530-HD - Datalogic Power Scan D 8500 Bar code Scanner

Datalogic Scanning's PowerScan readers are the top rated industrial handheld data collection products on the market. Long known for outstanding durability and performance, the PowerScan brand of products continues to offer the ultimate solution for demanding industrial applications. The PowerScan 8500 reader offers the richest feature set of Datalogic Scanning's industrial handheld products for the omnidirectional reading of one-dimensional (1D) and reading of two-dimensional (2D) codes as well as the capability of multiple code reading in a single read.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
PD8530-HD Power Scan D 8500, High-density version. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CAB-441), PS/2 (Part# CAB-442), or RS-232 Serial cables (Part# CAB-433) and a Power supply (Part# 90ACC1920).
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Datalogic Power Scan D 8500 service contract  |

PD8530-HD Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • Interleaved 2 of 5
    • Code 39
    • Code 32
    • Code 128
    • EAN-128
    • Code 93
    • UPC/EAN/JAN
    • Codabar
    • RSS
    • PDF 417
    • DataMatrix
    • QR Code
    • Composite Code
    • MacroPDF
    • Micro PDF
    • Aztec
    • Postnet
    • PLANET
    • Japan Postal
    • Australian Post
    • Kix
    • Royal Mail Code (RM4SCC)
    • Interleaved 2 of 5
    • Code 39
    • Code 32
    • Code 128
    • EAN-128
    • Code 93
    • UPC/EAN/JAN
    • Codabar
    • RSS
    • PDF 417
    • DataMatrix
    • QR Code
    • Composite Code
    • MacroPDF
    • Micro PDF
    • Aztec
    • Postnet
    • PLANET
    • Japan Postal
    • Australian Post
    • Kix
    • Royal Mail Code (RM4SCC)
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 1.70" - 3.10"@3 mil - Code 39
    • 1.30" - 3.80"@5 mil - Code 39
    • 1.50" - 5"@10 mil - Code 39
    • 2.30" - 7.30"@20 mil - Code 39
    • 1.90" - 5.50"@13 mil - 100% UPC
    • 1.90" - 3.40"@3 mil - PDF417
    • 1.70" - 3.40"@5 mil - PDF417
    • 1.10" - 5.20"@10 mil - PDF417
    • 2" - 3"@4 mil - Data Matrix
    • 1.90" - 3.10"@5 mil - Data Matrix
    • 1.70" - 3.40"@7.50 mil - Data Matrix
    • 1.50" - 4.10"@10 mil - Data Matrix
    • 1.70" - 3.40"@7.50 mil - QR Code
    • 1.50" - 4.10"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: D8530
  • Product Name: PowerScan D8530 HD Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Weight (Approximate): 10.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Electrical:
    • C-CSA-US (60950 to Canada and USA)
    • Emissions:
    • FCC-A
    • EN 55022-A
    • AS/NZS 3548
    • Laser Classification (Aiming System):
    • Class 2 IEC 825-1
    • Class 2 CDRH
    • Restriction of Hazardous Substances:
    • EU RoHS
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeUSB

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 30 V DC
Part # Description Availability Price Order
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00

The Datalogic PD8530-HD is also known as Data Logic DTL-PD8530-HD or PD8530HD .
