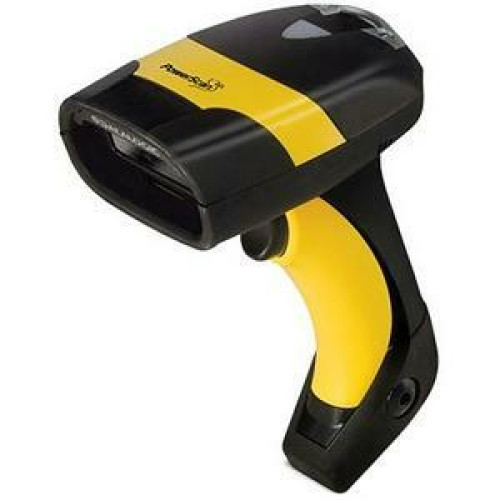

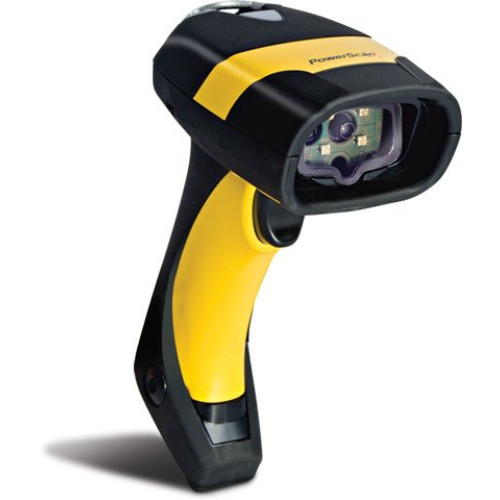

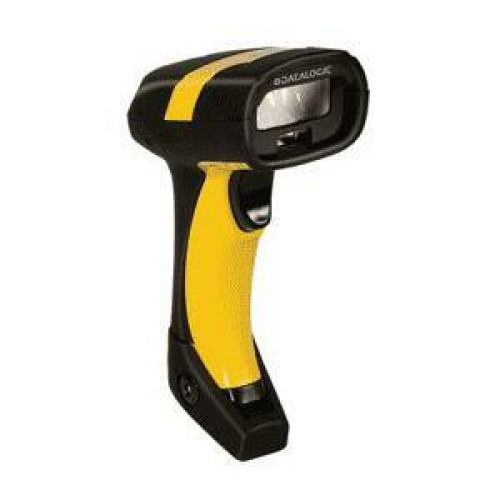

Datalogic PowerScan PD8500 Barcode Scanner
Part #: PD8530-WA | SKU: DAT36636

Datalogic Scanning's PowerScan readers are the top rated industrial handheld data collection products on the market. Long known for outstanding durability and performance, the PowerScan brand of products continues to offer the ultimate solution for demanding industrial applications. The PowerScan 8500 reader offers the richest feature set of Datalogic Scanning's industrial handheld products for the omni-directional reading of one-dimensional (1D) and reading of two-dimensional (2D) codes as well as the capability of multiple code reading in a single read.

Datalogic PowerScan PD8500 Barcode Scanner

Part Details: Datalogic PowerScan D8530 Wide Angle Bar Code Reader - Wired

Additional Information

Manufacturer Datalogic
Model Name PowerScan PD8500

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Interleaved 2 of 5
    • Code 39
    • Code 32
    • Code 128
    • EAN-128
    • Code 93
    • UPC/EAN/JAN
    • Codabar
    • GS1 Databar
    • PDF 417
    • DataMatrix
    • QR Code
    • Composite Code
    • Micro PDF
    • MacroPDF
    • Aztec
    • Postnet
    • PLANET
    • Japanese Post
    • Australian Post
    • Kix
    • Royal Mail Code (RM4SCC)
    • Interleaved 2 of 5
    • Code 39
    • Code 32
    • Code 128
    • EAN-128
    • Code 93
    • UPC/EAN/JAN
    • Codabar
    • GS1 Databar
    • PDF 417
    • DataMatrix
    • QR Code
    • Composite Code
    • Micro PDF
    • MacroPDF
    • Aztec
    • Postnet
    • PLANET
    • Japanese Post
    • Australian Post
    • Kix
    • Royal Mail Code (RM4SCC)
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 1" - 3.90"@5 mil - Code 39
    • 0.80" - 6.30"@10 mil - Code 39
    • 0.60" - 12.60"@20 mil - Code 39
    • 0.60" - 10.20"@13 mil - Code 39
    • 1.20" - 4.10"@5 mil - PDF417
    • 0.60" - 8.40"@10 mil - PDF417
    • 2.10" - 3.40"@7.50 mil - Data Matrix
    • 1.20" - 4.90"@10 mil - Data Matrix
    • 2.10" - 3.40"@7.50 mil - QR Code
    • 1.20" - 4.90"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: D8530
  • Product Name: PowerScan D8530 Wide Angle Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Weight (Approximate): 10.41 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Complaint
    • Environmental Protection IP65
    • Electrical:
    • C-CSA-US (60950 to Canada and USA)
    • Emissions:
    • FCC-A
    • EN 55022-A
    • AS/NZS 3548
    • Laser Classification:
    • Class 2 IEC 825-1
    • Class 2 CDRH
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeUSB

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 30 V DC
