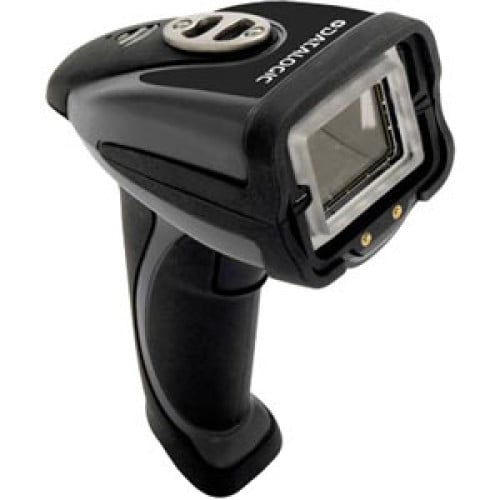

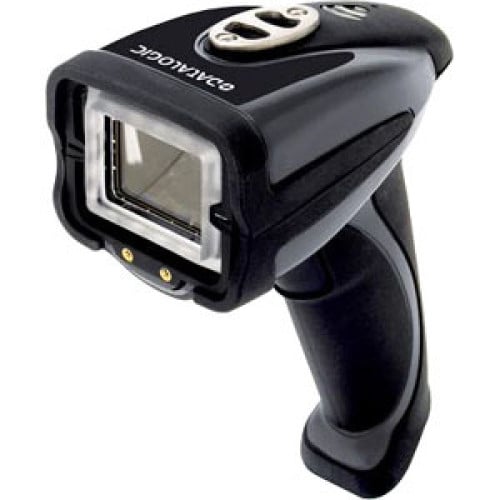

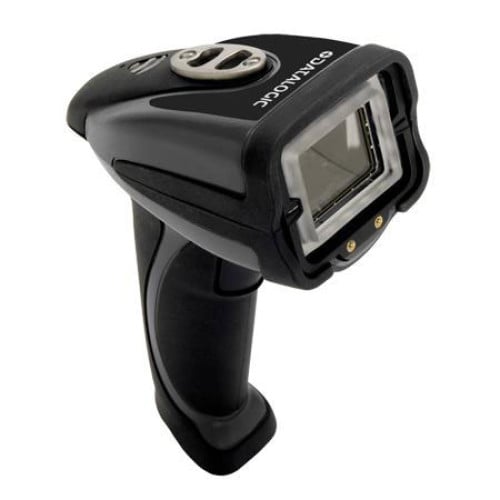

PD8590-DPM - Datalogic PowerScan PD8590-DPM Bar code Scanner

Datalogic's PowerScan PD8590-DPM imager is an ultra-high performance rugged handheld reader specifically designed for and capable of reading codes marked with DPM. With a perfect combination of embedded multiple lighting systems and aggressive decoding algorithms, the PD8590-DPM imager is able to read any challenging code marked with DPM.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
PD8590-DPM PowerScan PD8590-DPM, USB Kit, 2D Imager, Direct Part Marking Scanner. Includes USB cable.
Ships Free in 3-5 Days
$1,399.83
Retail $2541
Save 44%
Information:   |  Specifications  |  Datalogic's PowerScan PD8590-DPM page  |
Accessories:   |  Accessories/Options  |

PD8590-DPM Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Image Sensor: CMOS
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • 2D Codes:
    • Data Matrix
    • Micro QR Code
    • QR Code
    • Stacked Codes:
    • GS1 DataBar Composites
    • GS1 DataBar Stacked
    • PDF417
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • 2D Codes:
    • Data Matrix
    • Micro QR Code
    • QR Code
    • Stacked Codes:
    • GS1 DataBar Composites
    • GS1 DataBar Stacked
    • PDF417
  • Maximum Scan Resolution: 4 mil
  • Depth of Field: 0 mil - 2"@

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PD8590-DPM
  • Product Name: PowerScan PD8590-DPM Handheld Barcode Scanner
  • Product Line: PowerScan

Physical Characteristics

  • Height: 7"
  • Width: 2.5"
  • Depth: 4.3"
  • Color:
    • Black
    • Gray
  • Weight (Approximate): 7.20 oz

Interfaces/Ports

  • Host Interface:
    • USB
    • Serial

The Datalogic PD8590-DPM is also known as Data Logic DTL-PD8590DPM or PD8590DPM .
