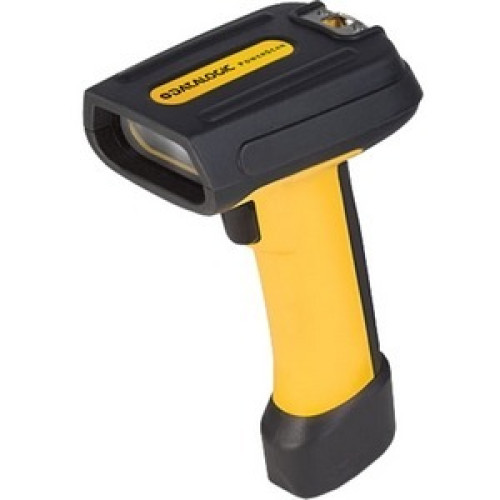

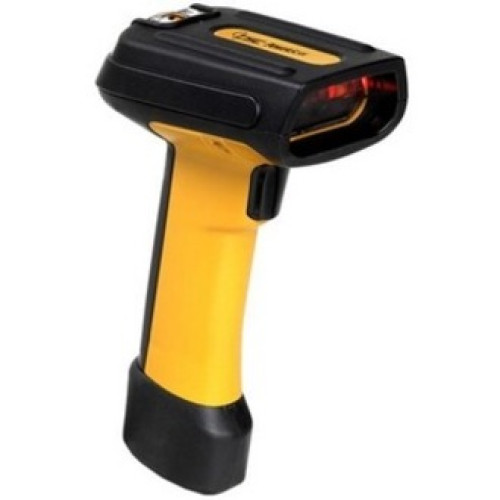

PS72-2100-0200-201 - Datalogic Power Scan 7000 Bar code Scanner

The Power Scan 7000 is one of the lowest-priced full performance industrial handheld scanners on the market. It was designed to be both rugged and durable to fit demanding applications such as the manufacturing shop floor, warehousing, package handling and tracking and more. The strong overmold gives the Power Scan 7000 an extra degree of shock protection that allows the scanner to withstand 50 drops of 6.5 feet to concrete. It can operate in extreme temperatures and seals out dust and water. Due to an innovative Datalogic optical design, the Power Scan 7000 has a depth of field that is unsurpassed by other scanners. An integrated laser aiming beam is also available for applications that need more precise or brighter aiming cues. The advanced decoding algorithms allow read rates up to 500 scans per second-the fastest industrial scanner available. Additionally, the Power Scan 7000 features a multiple interface architecture that allows connection to the majority of the host terminals on the market, including RS-232, USB, Wand Emulation and IBM POS interfaces.

Part # Description Availability Price Order
PS72-2100-0200-201 PowerScan 7000 SRI, Industrial Strength Imaging Scanner (2D, USB, High Density and POT Cable) - Color: Yellow/Black
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Datalogic Power Scan 7000 service contract  |

PS72-2100-0200-201 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Linear
  • Connectivity Technology: Cable
  • Light Source: LED
  • Barcode Symbology Supported:
    • Code 11
    • Code 128
    • UPC/EAN/JAN
    • RSS
    • Code 39
    • Codabar
    • Interleaved 2 of 5
    • Code 93
    • Code 2 of 5
    • PDF-417 2D Barcode
    • MaxiCode
    • Aztec Mesas
    • Aztec
    • Micro PDF
    • DataMatrix
    • EAN-UCC Composite
    • Code 49
    • QR Code
    • Postnet
    • Canadian Post
    • British Post
    • China Postal Code
    • Japanese Post
    • Kix
    • Planet Code
    • OCR-A
    • OCR-B
    • Code 11
    • Code 128
    • UPC/EAN/JAN
    • RSS
    • Code 39
    • Codabar
    • Interleaved 2 of 5
    • Code 93
    • Code 2 of 5
    • PDF-417 2D Barcode
    • MaxiCode
    • Aztec Mesas
    • Aztec
    • Micro PDF
    • DataMatrix
    • EAN-UCC Composite
    • Code 49
    • QR Code
    • Postnet
    • Canadian Post
    • British Post
    • China Postal Code
    • Japanese Post
    • Kix
    • Planet Code
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.60" - 4.20"@5 mil - Code 39
    • 1.80" - 5"@6.60 mil - PDF417
    • 1" - 7.90"@8.30 mil - Code 39
    • 2.40" - 4.70"@8.30 mil - Data Matrix
    • 1.20" - 6.60"@10 mil - PDF417
    • 1" - 7.90"@13 mil - UPC

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 7000
  • Product Name: PowerScan 7000 Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 7.5"
  • Width: 3"
  • Depth: 4.5"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 10 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • PowerScan 7000 Barcode Reader
    • 12ft. USB Type A POT Cable
    • PowerScan 7000 Barcode Reader
    • 12ft. USB Type A POT Cable
  • Certifications & Standards:
    • MIL-STD-810E
    • RoHS Compliant
    • IEC529 Rating IP65DW
    • Electrical:
    • TUV
    • UL
    • cUL
    • Emissions:
    • FCC
    • EN 55022-B
    • CNS 13438
    • AS/NZS 3548
    • VCCI
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • USB
    • Keyboard Wedge

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 14 V DC
Part # Description Availability Price Order
TSP-US-SC-3 Barcodes True Support Contract 3-year, $48 per year for 3 years, billed annually. True Support contract 3-year- Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading Ships Free Today $48.00
Q-PS7K-2D-3 Datalogic Service Contract - 3 year, EXT WARRANTY FOR PS7000 2D QUICK REPLACEMENT 3 year Ships Free Today $91.00

The Datalogic PS72-2100-0200-201 is also known as Data Logic PSC-PS7221000200201 or PS7221000200201 .
