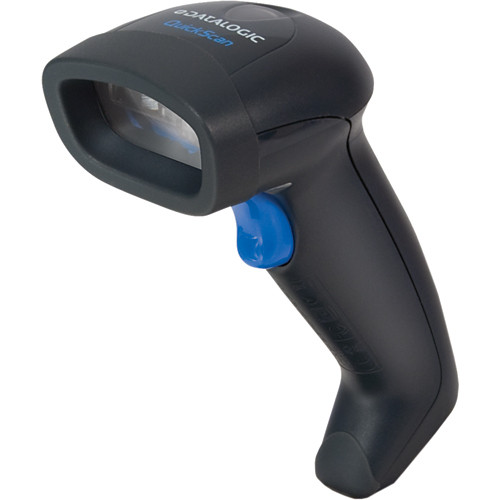

QD2130-BK - Datalogic QuickScan I: QD 2100 Bar code Scanner

The Datalogic QuickScan I: QD 2100 has been designed with durability in mind. One of the most vulnerable features of any scanner is damage to the scan window. When such incidents happen, the scanner may have to be replaced. The QuickScan I: QD 2100 was specifically designed so that a replacement window pack can be ordered to replace damaged or scratched windows without having to send the scanner away for repairs. This helps to reduce the total cost of ownership during the life of the scanner and helps to ensure that it is always available for use. The QuickScan I: QD 2100 is available with two multi-interface options: RS-232 / IBM 46XX / USB and RS-232 / USB / Keyboard Wedge / Wand and includes various packaging options so that it can be ordered as the scanner only or as a kit equipped with a scanner, cable and stand to facilitate hand-free reading options. The Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, even for inexperienced users.

Part # Description Availability Price Order
QD2130-BK QuickScan I: QD 2100, SCANNER ONLY. 1D Linear Imager, PS/2/USB/Wand/RS-232 interfaces. Interface and power cables not included. Color: Black. For the full kit see (Part# QD2130-BKK1S). Ships Free Today $86.20
Retail $170
Save 49%

QD2130-BK Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 0.80" - 4.30"@4 mil
    • 0.60" - 6"@5 mil
    • 0.30" - 10"@7.50 mil
    • 0.30" - 15"@10 mil
    • 0.70" - 18"@13 mil
    • 1" - 26"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QD2130
  • Product Name: QuickScan QD2130 Handheld Barcode Reader
  • Product Line: QuickScan

Physical Characteristics

  • Height: 6.7"
  • Width: 2.6"
  • Depth: 2.8"
  • Color: Black
  • Weight (Approximate): 4.30 oz

Interfaces/Ports

  • Host Interface: Multi-interface
Part # Description Availability Price Order
TSP-US-SC-3 Barcodes True Support Contract 3-year, $48 per year for 3 years, billed annually. True Support contract 3-year- Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading Ships Free Today $48.00
Q-QD21-5 Datalogic Service Contract - 5 year, QuickScan I QD2100, Ease of Care Overnight Replacement Comprehensive Ships Free Today $29.00

The Datalogic QD2130-BK is also known as Data Logic DTL-QD2130-BK or QD2130BK .
