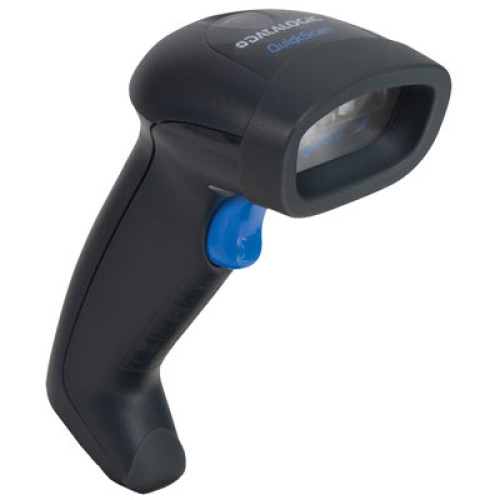

Photo of Datalogic QD2330-BK Datalogic logo

Datalogic Quick Scan L: QuickScan Desk

Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 90A052044), PS/2 (Part# 90A051360), or RS-232 Serial cables (Part# 90G001070) and a Power supply (Part# 4004-0837).

$110.26

Free Shipping

Ships in 24-48 hours



Datalogic Quick Scan L: QuickScan Desk Scanner

The Datalogic Quick Scan L: QuickScan Desk barcode reader is a barcode scanner with laser technology at an affordable price. The Quick Scan L: QuickScan Desk reader is the perfect solution for general purpose users who prefer laser scanning technology and need to read barcodes at nominal distances. This scanner is lightweight and small with an ergonomic form factor which provides the user with ease of scanning during daily operations. The wider than usual scan angle allows users to read a longer barcode from a shorter distance. The gun shaped ergonomic design fits most users' hands comfortably and the scanner only weighs 4.5 oz / 128 gr (without the cable).

Full specifications (PDF)

Manufacturer part number: QD2330-BK

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Interleaved 2 of 5
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Discrete 2 of 5
    • UPC/EAN with supplementals
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar
    • Code MSI
    • Code 11
    • IATA
    • GS1 Databar
    • Chinese 2 of 5
    • Interleaved 2 of 5
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Discrete 2 of 5
    • UPC/EAN with supplementals
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar
    • Code MSI
    • Code 11
    • IATA
    • GS1 Databar
    • Chinese 2 of 5
  • Maximum Scan Resolution: 5 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: L
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Name: QuickScan L Barcode Reader
  • Product Line: QuickScan

Physical Characteristics

  • Color: Black
  • Weight (Approximate): 4.52 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Water and Dust Resistance IP42
    • Electrical:
    • UL60950 (USA)
    • CAN/CSA-22.2 No 60950 (Canada)
    • EN60960 (TUV Europe)
    • Emissions:
    • FCC part 15 ,Class B (USA)
    • EN 55022-B (Europe)
    • AS/NZS CISPR 22-B (Australia/New Zealand)
    • VCCI-B (Japan)
    • CNS 13438-B (Taiwan)
    • ICES-003 - B (Canada)
    • Laser Safety:
    • Class 2 Laser Product
    • 21 CFR 1040.10 and 1040.11
    • IEC/EN60825-1:2007
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeUSB

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 5 V DC
