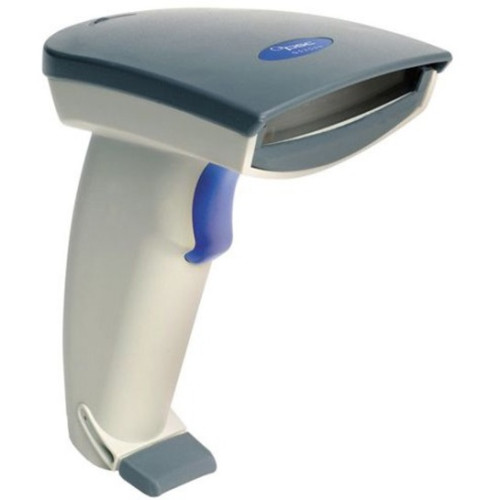

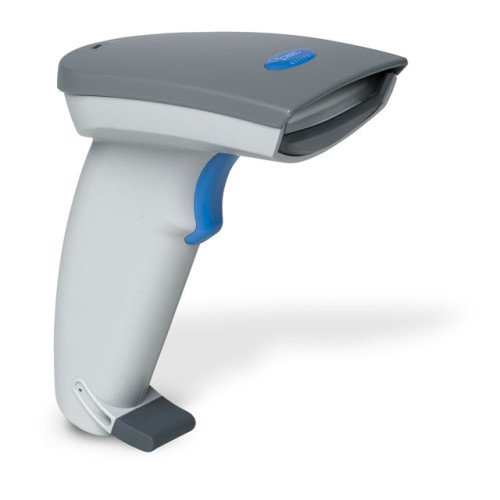

QS25-2105-01 - Datalogic QuickScan 2500 Bar code Scanner

The QuickScan QS2500 Linear Imager Handheld scanner is the newest member of the QuickScan product family. For retail office and light-industrial applications the QS2500's 200 scans-per-second linear imager scan engine provides snappy reading performance and a mid-range depth-of- field. And the QS2500 also reads poorly printed barcode labels quickly and easily.Loaded with Features for Today and TomorrowThe QS2500 is capable of reading a wide range of barcode symbologies including Reduced Space Symbology (RSS) and PDF417 allowing you flexibility in reading now and in the future. It also features flash memory for easy software upgrades along with programming and label editing. Its enclosure is lightweight and ergonomic and has an available hands-free tabletop stand.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
QS25-2105-01 QuickScan 2500, EZ kit, hands-free stand, Keyboard wedge (8-0424-03)
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

QS25-2105-01 Details

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • UPC-A
    • UPC-E
    • JAN-8
    • JAN-13
    • EAN-13
    • EAN-8
    • Code 128
    • Codabar
    • Pharmacode 39
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • Code 16K
    • Code 11
    • UK Plessey
    • MSI/PLESSEY
    • Telepen
    • RSS-14
    • RSS-14 Expanded
    • RSS-14 Limited
    • RSS-14 Stacked
    • PDF417 with Audio Assist
  • Scanner Type: Linear Imager
  • Scan Rate: 200 scans/sec
  • Interface Options:
    • RS-232
    • Keyboard Wedge
    • Wand Emulation
    • USB
    • IBM 46XX
    • IBM USB
  • Interface Connectivity: Corded
  • Input Voltage Range: 5 V DC
  • Depth of Field:
    • 1.0 - 4.5"@5mils
    • 0.5 - 8.5"@10mils
    • 0.5 - 11.0"@13mils - 100% UPC
    • 1.0 - 16.0"@20mils
    • 2.0 - 28.0"@40mils

General Information

  • Manufacturer: PSC Inc.
  • Product Line: QuickScan
  • Product Name: QuickScan QS2500 Barcode Scanner

Physical Characteristics

  • Dimensions: 7.3" (185.42mm) x 2.9" (73.66mm) x 4.5" (114.3mm)
  • Weight: 6.3 oz - Without Cable

Agency Approvals

  • Agency Approvals:
    • UL
    • cUL
    • FCC-A
    • EN 55022-B
    • VCCI-B
    • IEC 60825 Class 1 & 2
    • Complies to EU RoHS

Other

  • Package Contents:
    • QuickScan QS2500 Barcode Scanner
    • 8' Coiled Assembly Cable-RS-232
    • Grey Stand Only
  • Cables Included: RS-232

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 45°C (113°F) Operating
    • -30°C (-22°F) to 65°C (149°F) Storage

Warranty

  • Manufacturer Warranty: 5 Year(s)

The Datalogic QS25-2105-01 is also known as Data Logic PSC-QS25210501 or QS25210501 .
