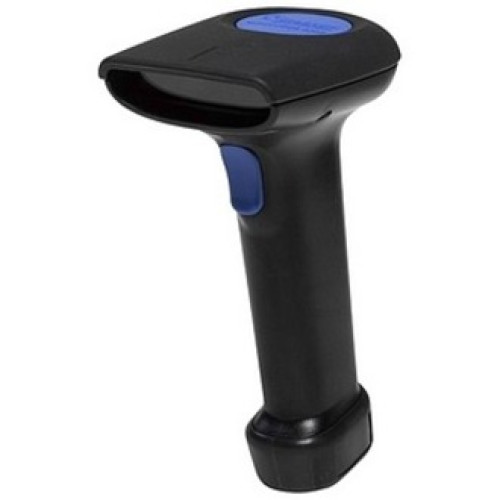

QS65B-1010100-105 - Datalogic QuickScan 6500BT Bar code Scanner

The QuickScan 6500BT reads almost all 1D barcode symbologies at an extremely fast 450 scans per second while offering excellent reading performance on hard-to-read barcodes. The QuickScan 6500BT also reads most stacked 2D codes like PDF-417 and Micro PDF. This aggressive linear imaging performance is enhanced by Bluetooth cordless communication with up to a 33' range. The innovative charging-base station allows the product to scan barcodes while its lithium ion battery is charging. The base station also supports all popular host terminal interfaces and supports RSS and PDF-417 for future industry compatibility. Additionally, QuickScan 6500BT's flash memory allows for easy software upgrades.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order

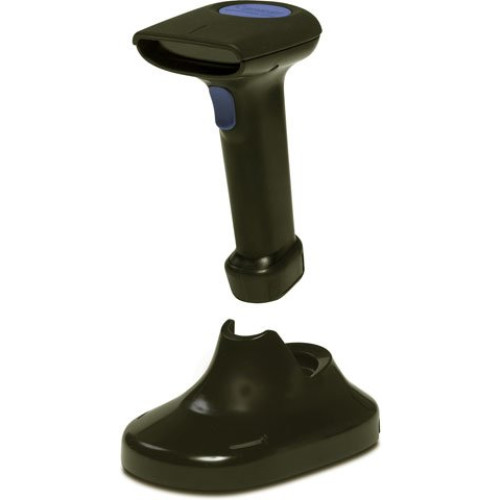

QS65B-1010100-105 QuickScan 6500BT, RS-232 serial kit, includes base station, RS-232 cable and power supply. Color: Gray
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

QS65B-1010100-105 Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Scan Rate: 450 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 32.81 ft
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • JAN-8
    • Codabar (NW7)
    • Code 39 Full ASCII
    • Code 11
    • RSS-14
    • RSS-Expanded
    • RSS-Limited
    • RSS-Stacked
    • Code 16K
    • ISBN / Bookland EAN
    • Pharmacode 39
    • Code 128
    • Interleaved 2 of 5
    • UK Plessey
    • Standard 2 of 5
    • MSI/PLESSEY
    • IATA
    • PDF 417
    • Micro PDF
    • RSS Composite
    • JAN13 Add-ons sub 2 or P2, sub 5 or P5 & C128
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • JAN-8
    • Codabar (NW7)
    • Code 39 Full ASCII
    • Code 11
    • RSS-14
    • RSS-Expanded
    • RSS-Limited
    • RSS-Stacked
    • Code 16K
    • ISBN / Bookland EAN
    • Pharmacode 39
    • Code 128
    • Interleaved 2 of 5
    • UK Plessey
    • Standard 2 of 5
    • MSI/PLESSEY
    • IATA
    • PDF 417
    • Micro PDF
    • RSS Composite
    • JAN13 Add-ons sub 2 or P2, sub 5 or P5 & C128
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2" - 4.50"@5 mil
    • 1" - 6"@7.50 mil
    • 0 mil - 10.50"@10 mil
    • 0 mil - 13"@13 mil - 100% UPC
    • 21"@20 mil
    • 35"@40 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QS6500BT
  • Product Name: QuickScan QS6500BT Barcode Reader
  • Product Line: QuickScan

Physical Characteristics

  • Height: 7.1"
  • Width: 2.9"
  • Depth: 4.4"
  • Color: Gray
  • Weight (Approximate): 8 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • QuickScan QS6500BT Barcode Reader
    • Base Station
    • Power Supply
    • 12ft RS-232 Cable
    • QuickScan QS6500BT Barcode Reader
    • Base Station
    • Power Supply
    • 12ft RS-232 Cable
  • Certifications & Standards:
    • Electrical:
    • Gost R
    • UL
    • cUL
    • IEC60950
    • Emissions:
    • FCC-A
    • EN 55022-B
    • CISPR-22
    • VCCI-B
    • Radio:
    • FCC Part 15C
    • FCC Part 15RFCC Part TTE
    • FCC Part IC
    • FCC Part IDA
    • Laser Classification:
    • IEC 60825 Class 1 LED
    • Restriction of Hazardous Substances:
    • EU RoHS
  • Additional Information:
    • Interface Option:
    • SerialKeyboard WedgeUSBWand EmulationISB 46XX

Power Description

  • Input Voltage: 14 V DC
  • Power Source: Battery

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes

The Datalogic QS65B-1010100-105 is also known as Data Logic PSC-QS65B1010100105 or QS65B1010100105 .
