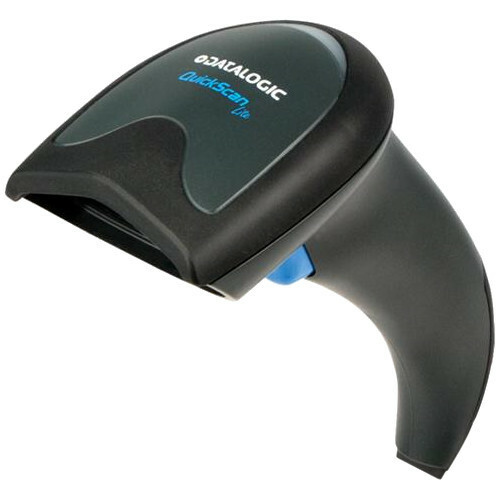

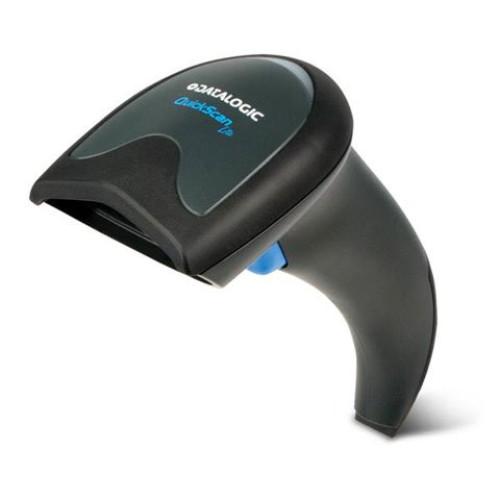

QW2120-BKK13 - Datalogic QW2100 Bar code Scanner

The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D barcodes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider barcodes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
QW2120-BKK13 QW2100, USB Kit, Linear 1D Imager. Includes USB straight cable. Color: Black.
Ships Free in 3-5 Days
$105.23
Retail $183
Save 42%
Information:   |  Specifications  |  Datalogic's QW2100 page  |
Accessories:   |  Accessories/Options  |

QW2120-BKK13 Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Scan Rate: 400 scan/s
  • Connectivity Technology: Cable
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 1" - 6"@5 mil
    • 0 mil - 9.40"@7.50 mil
    • 0 mil - 13.80"@10 mil
    • 0 mil - 15.70"@13 mil
    • 0 mil - 23.60"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: QW2100
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QW2120
  • Product Name: Quickscan I QW2120 Handheld Barcode Scanner
  • Product Line: QuickScan I

Physical Characteristics

  • Height: 6.7"
  • Width: 2.5"
  • Depth: 2.7"
  • Color: Black
  • Weight (Approximate): 4.20 oz

Interfaces/Ports

  • Host Interface: USB

The Datalogic QW2120-BKK13 is also known as Data Logic QW2120-BKK13 or QW2120BKK13 .
