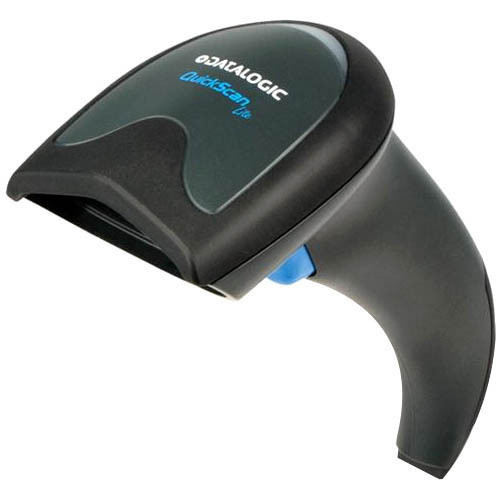

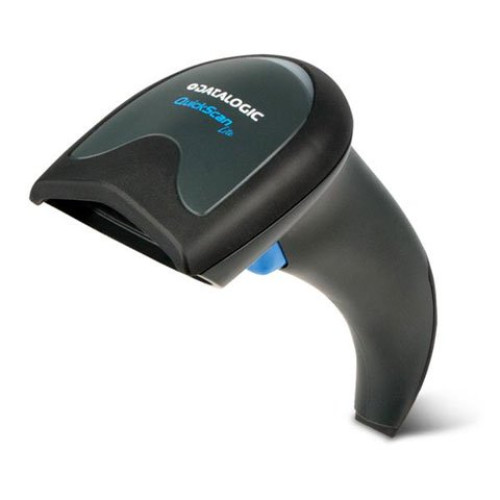

QW2120-BKK1S - Datalogic QW2100 Bar code Scanner

The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D barcodes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider barcodes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order

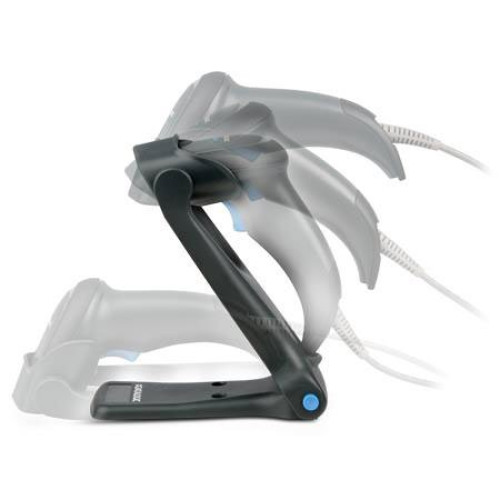

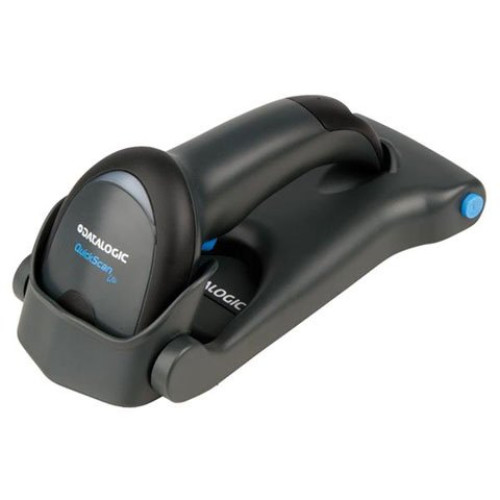

QW2120-BKK1S QuickScan I Lite QW2100, USB Kit, Linear 1D Imager. Includes USB 6' straight cable and stand. Color: Black. Ships Free Today $95.88
Retail $173
Save 44%
Information:   |  Specifications  |  Datalogic's QW2100 page  |
Accessories:   |  Accessories/Options  |

QW2120-BKK1S Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Scan Rate: 400 scan/s
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 1" - 6"@5 mil
    • 0 mil - 9.40"@7.50 mil
    • 0 mil - 13.80"@10 mil
    • 0 mil - 15.70"@13 mil
    • 0 mil - 23.60"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QW2120-BK
  • Product Name: General Purpose Corded Handheld Linear Imager Barcode Reader
  • Product Line: QuickScan

Physical Characteristics

  • Height: 6.7"
  • Width: 2.5"
  • Depth: 2.7"
  • Color: Black
  • Weight (Approximate): 4.20 oz

Interfaces/Ports

  • Host Interface: USB

The Datalogic QW2120-BKK1S is also known as Data Logic DTL-QW2120BKK1S or QW2120BKK1S .
