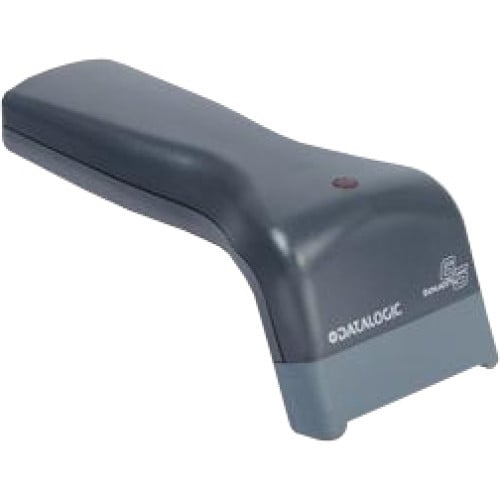

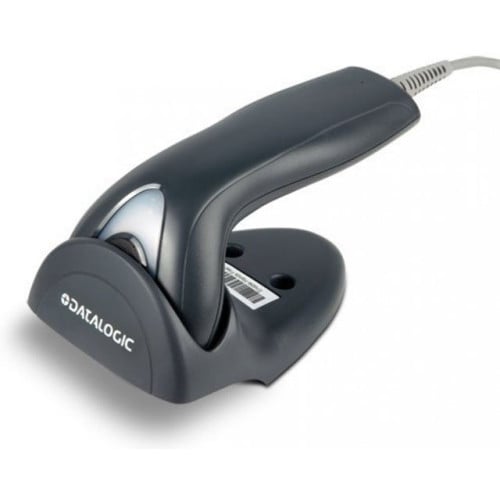

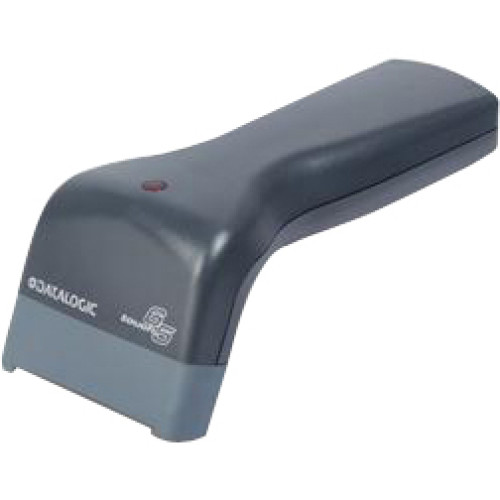

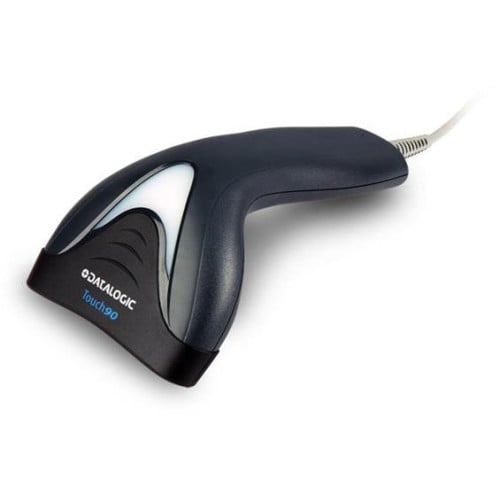

TD1170-BK-65 - Datalogic TD1100 Bar code Scanner

The Datalogic TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 inch for reading standard bar codes or 9.0 cm / 3.5 inch for reading wide bar codes. Both options will be provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge and with USB or RS-232 / Keyboard Wedge interfaces.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
TD1170-BK-65 Touch TD1100, SCANNER ONLY, Touch 65 Lite, RS-232/Keyboard wedge Interface. Cables sold separately. Color: Black
Ships Free in 3-5 Days
$59.76
Retail $107
Save 44%
Information:   |  Specifications  |  Datalogic's TD1100 page  |
Accessories:   |  Accessories/Options  |  Datalogic TD1100 service contract  |

TD1170-BK-65 Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor:
    • Imager
    • Linear
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 0 mil - 3.20"@7.50 mil - Code 39
    • 0 mil - 4.70"@10 mil - Code 39
    • 0 mil - 6"@13 mil - EAN13

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: TD1100
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 65 Lite
  • Product Name: General Purpose Corded Handheld Contact Linear Imager Barcode Reader
  • Product Line: Touch

Physical Characteristics

  • Height: 6.3"
  • Width: 2.3"
  • Depth: 3.3"
  • Color: Black
  • Weight (Approximate): 4.60 oz

Interfaces/Ports

  • Host Interface:
    • Serial
    • Keyboard Wedge
Part # Description Availability Price Order
ZSC1TD11X51 Datalogic Service Contract - 5 year, TD1100, Ease of Care Overnight Replacement Comprehensive
Ships Free in 3-5 Days
$16.00
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00

The Datalogic TD1170-BK-65 is also known as Data Logic DTL-TD1170-BK-65 or TD1170BK65 .
