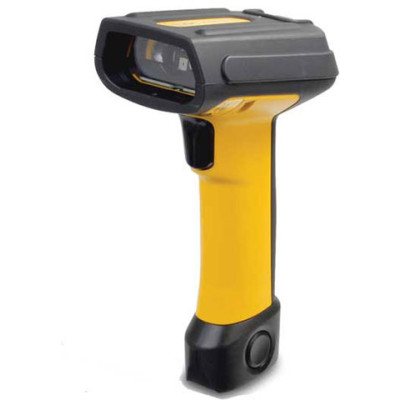

Photo of Datalogic Power Scan PBT 7100
Datalogic logo

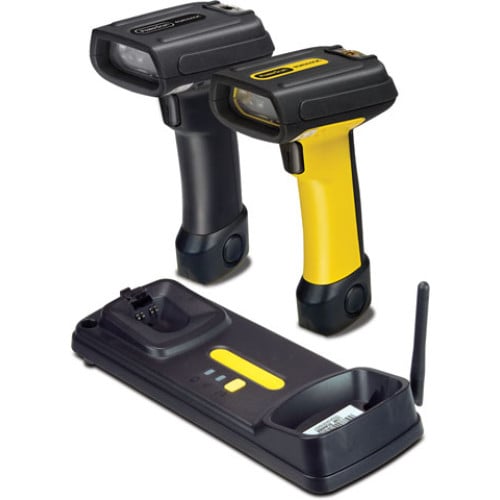

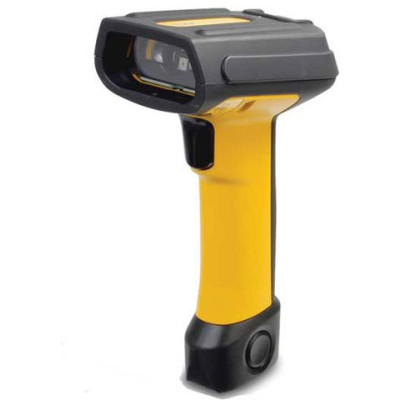

Datalogic Power Scan PBT 7100 Scanner

Datalogic PowerScan PBT9500 A newer version of this item is available.
It is replaced by the Datalogic PowerScan PBT9500.
The Datalogic Power Scan PBT 7100 features the fastest speed-to-read on the market - 390 scans/second. The Power Scan PBT 7100 also features the Datalogic "Green Spot" and loud beeper for good read feedback, Bluetooth Wireless Technology with up to 100 m / 328 ft range and connectivity through the Base Station or directly to other Bluetooth devices. Durability is paramount, with water and particulate sealing rating of IP65, a drop resistance to 2.0 m / 6.5 ft and a 25kV electrostatic protection (air discharge), making the Power Scan PBT 7100 ideal for tough environments.
Power Scan PBT 7100 Options
Part # DescriptionAvailabilityPriceOrder
PBT7100-YBK20-US PowerScan PBT7100, PBT7100, Kit, RS-232, Yellow/Black, No Pointer (Includes Power supply, US Line Cord and Cable (Part# CAB-433)). Check Availability Call for Details
PBT7100-YBK10-US Power Scan PBT 7100, Industrial Handheld Linear Imager Barcode Reader (Base, Power supply and USB Cable, no Pointer) - Color: Yellow/Black Check Availability Call for Details
PBT7100-YB-PTR Power Scan PBT 7100, Scanner (with Pointer) - Color: Yellow/Black Check Availability Call for Details
PBT7100-YB-PK30-US PowerScan PBT7100 Linear Imager, PowerScan 7100BT Industrial Handheld Linear Imager Barcode Reader (Keyboard wedge Kit, with Pointer Base, Power supply, Power cord, Cable CAB-436) Check Availability Call for Details
PBT7100-YB-PK20-US PowerScan PBT7100 Linear Imager, PowerScan 7100BT Industrial Handheld Linear Imager Barcode Reader (RS-232 Kit and Pointer) - Color: Yellow/Black Check Availability Call for Details
PBT7100-YB-PK10-US PowerScan PBT7100 Linear Imager, PowerScan 7100BT Industrial Handheld Linear Imager Barcode Reader (USB Kit and Pointer) - Color: Yellow/Black Check Availability Call for Details
PBT7100-YB Power Scan PBT 7100, Scanner (No Pointer) - Color: Yellow/Black Check Availability Call for Details
PBT7100-BBK22-US Power Scan PBT 7100, PowerScan 7100BT Industrial Handheld Linear Imager Barcode Reader (RS-232, US Power supply, Power cord, Cable and No Pointer) - Color: Black/Black Check Availability Call for Details
PBT7100-BBK21-US Power Scan PBT 7100, PowerScan 7100BT Industrial Handheld Linear Imager Barcode Reader (MAG, US Power supply, Power cord, Cable and No Pointer) - Color: Black/Black Check Availability Call for Details
PBT7100-BBK12-US Power Scan PBT 7100, PBT7100 B/B USB KIT, NO POINTER Power supply, P/C AND CAB-439 Check Availability Call for Details
PBT7100-BBK11-US Power Scan PBT 7100, PowerScan 7100BT Industrial Handheld Linear Imager Barcode Reader (MAG, US and No Pointer) - Color: Black/Black Check Availability Call for Details
PBT7100-BB-PTR Power Scan PBT 7100, Scanner (with Pointer) - Color: Black/Black Check Availability Call for Details
PBT7100-BB Power Scan PBT 7100, Scanner (No Pointer) - Color: Black/Black Check Availability Call for Details

Datalogic Power Scan PBT 7100 Details

Cordless Communications
  • Bluetooth Wireless Technology
    • Protocol
      • Bluetooth 2.0 Certified Class 1
      • Radio Frequency
        • 2.40 to 2.48 GHz
        • Radio Range (Open Air)
          • 100.0 m / 328.1 ft
        Decoding Capability
        • 1D / Linearcodes
          • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
          • Postal Codes
            • China Post
            • Stacked Codes
              • GS1 DataBar Expanded Stacked
                • GS1 DataBar Stacked
                  • GS1 DataBar Stacked Omnidirectional
                  Electrical
                  • Battery
                    • Battery Type
                      • Lithium-Ion, 2400 mAh
                      • Charge Time
                        • External Power
                          • 4 Hours
                        • Reads per Charge
                          • 22,000 in 16 Hours
                        • Current
                          • Operating (Typical)
                            • BC70X0
                              280 mA @ 5 VDC
                            • Standby/Idle (Typical)
                              • BC70X0
                                210 mA @ 5 VDC
                            • Input Voltage
                              • 5 VDC +/- 5%
                              • 7 - 14 VDC
                              Environmental
                              • Ambient Light
                                • 100,000 lux
                                • Drop Resistance
                                  • Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface
                                  • ESD Protection (Air Discharge)
                                    • 25 kV
                                    • Humidity (Non-Condensing)
                                      • 5 - 95%
                                      • Particulate and Water Sealing
                                        • IP65
                                        • Temperature
                                          • Operating
                                            • -20 to 50 °C / -4 to 122 °F
                                            • Storage/Transport
                                              • -40 to 60 °C / -40 to 140 °F
                                            Interfaces
                                            • RS-232 / IBM 46XX / USB Multi-Interface
                                              • RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
                                                Physical Characteristics
                                                • Colors Available
                                                  • Black
                                                    • Yellow/Black
                                                    • Dimensions
                                                      • Cradle
                                                        23.9 x 11.7 x 4.8 cm / 9.4 x 4.6 x 1.9 in
                                                      • Reader
                                                        20.3 x 7.6 x 11.4 cm / 8.0 x 3.0 x 4.5 in
                                                      • Weight
                                                        • Cradle
                                                          326.2 g / 11.5 oz
                                                        • Reader
                                                          354.4 g / 12.5 oz
                                                        Reading Performance
                                                        • Light Source
                                                          • Aiming
                                                            • 630 - 680 nm VLD
                                                            • Illumination
                                                              • LED Array 630 - 670 nm
                                                            • Print Contrast Ratio (Minimum)
                                                              • 15%
                                                              • Read Rate (Maximum)
                                                                • 390 reads/sec.
                                                                • Reading Angle
                                                                  • Pitch
                                                                    • +/- 65°
                                                                    • Roll (Tilt)
                                                                      • +/- 30°
                                                                      • Skew (Yaw)
                                                                        • +/- 65°
                                                                      • Reading Indicators
                                                                        • Beeper (Adjustable Tone and Volume)
                                                                          • Datalogic 'Green Spot' Good Read Feedback
                                                                            • Good Read LED
                                                                            • Resolution (Maximum)
                                                                              • 0.076 mm / 3 mils
                                                                              Reading Ranges - Typical Depth of Field
                                                                              • Minimum distance determined by symbol length and scan angle.
                                                                                • Printing resolution, contrast, and ambient light dependent.
                                                                                  • 5 mils
                                                                                    • 1.5 to 14.0 cm / 0.6 to 5.5 in
                                                                                  • 7.5 mils
                                                                                    • 0 to 44.0 cm / 0 to 17.3 in
                                                                                  • 10 mils
                                                                                    • 0 to 60.0 cm / 0 to 23.6 in
                                                                                  • 13 mils
                                                                                    • 0 to 80.0 cm / 0 to 31.5 in
                                                                                  • 20 mils
                                                                                    • 0 to 119.0 cm / 0 to 46.9 in
                                                                                  • 40 mils
                                                                                    • 2.0 to 240.0 cm / 0.8 to 94.5 in
                                                                                  • Reflective - 55 mils
                                                                                    • 5.0 to 300.0 cm / 2.0 to 118.1 in
                                                                                  • Reflective - 100 mils
                                                                                    • 13.0 to 530.0 cm / 5.1 to 208.7 in
                                                                                  Safety & Regulatory
                                                                                  • Agency Approvals
                                                                                    • The product meets necessary safety and regulatory approvals for its intended use.
                                                                                      • The Quick Reference Guide for this product can be referred to for a complete list of certifications.
                                                                                      • Environmental Compliance
                                                                                        • Complies to China RoHS
                                                                                          • Complies to EU RoHS
                                                                                          • Laser Classification
                                                                                            • Caution Laser Radiation - Do not stare into beam
                                                                                              • EN 60825-1 Class 1
                                                                                              Utilities
                                                                                              • Datalogic Aladdin
                                                                                                • Datalogic Aladdin configuration program is available for download at no charge
                                                                                                Warranty
                                                                                                • 3-Year Factory Warranty
