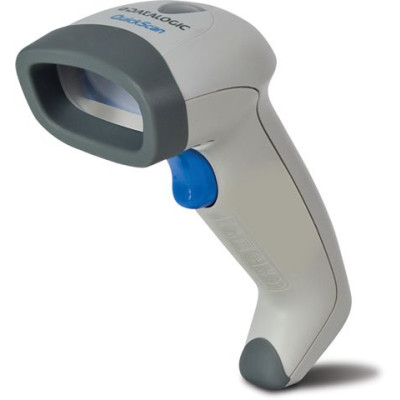

Datalogic QuickScan I: QD 2100 Scanner

The Datalogic QuickScan I: QD 2100 has been designed with durability in mind. One of the most vulnerable features of any scanner is damage to the scan window. When such incidents happen, the scanner may have to be replaced. The QuickScan I: QD 2100 was specifically designed so that a replacement window pack can be ordered to replace damaged or scratched windows without having to send the scanner away for repairs. This helps to reduce the total cost of ownership during the life of the scanner and helps to ensure that it is always available for use. The QuickScan I: QD 2100 is available with two multi-interface options: RS-232 / IBM 46XX / USB and RS-232 / USB / Keyboard Wedge / Wand and includes various packaging options so that it can be ordered as the scanner only or as a kit equipped with a scanner, cable and stand to facilitate hand-free reading options. The Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
Questions?
1-888-875-7170
We respond to every email

Form Factor

Connectivity

Scanner Capability

Scan Pattern

Scanner Type

Color

Included Cables ?

Ruggedness

QuickScan I: QD 2100 Options
Part # DescriptionAvailabilityPriceOrder
QD2130-BKK1S QuickScan I: QD 2100, USB Kit. 1D Linear Imager. Includes 6' straight USB cable and stand. Color: Black Ships Free Today $98.75
Retail $195
Save 49%
QD2130-BKK3S QuickScan I: QD 2100, PS/2 Kit. 1D Linear Imager. Includes PS/2 cable and stand. Color: Black Ships Free Today $98.75
Retail $195
Save 49%
QD2130-BKK1 QuickScan I: QD 2100, USB Kit. 1D Linear Imager. Includes 6' straight USB Cable. Color: Black Ships Free Today $87.74
Retail $170
Save 48%
QD2130-BK QuickScan I: QD 2100, SCANNER ONLY. 1D Linear Imager, PS/2/USB/Wand/RS-232 interfaces. Interface and power cables not included. Color: Black. For the full kit see (Part# QD2130-BKK1S). Ships Free Today $87.74
Retail $170
Save 48%
QD2130-WHK1 QuickScan I: QD 2100, USB Kit. 1D Linear Imager. Includes USB Cable. Color: White Ships Free Today $87.74
Retail $170
Save 48%
QD2110-BK QuickScan I: QD 2100, SCANNER ONLY. 1D Linear Imager, IBM/USB/RS-232 interfaces. Interface and power cables not included. Color: Black Ships Free Today $91.39
Retail $180
Save 49%
QD2110-WH QuickScan I: QD 2100, SCANNER ONLY. 1D Linear Imager, IBM/USB/RS-232 interfaces. Interface and power cables not included. Color: White Ships Free Today $91.39
Retail $180
Save 49%
QD2130-BKK13 QuickScan I QD2100, USB Kit. 1D Linear Imager. Includes 6' Coiled USB Cable. Color: Black Ships Free Today $110.84
Retail $200
Save 44%
QD2130-WHK3S QuickScan I: QD 2100, PS/2 Kit. 1D Linear Imager. Includes PS/2 cable and stand. Color: White See Replacement Call for Details
QD2130-WHK3 QuickScan I: QD 2100, PS/2 Kit. 1D Linear Imager. Includes PS/2 Cable. Color: White See Replacement Call for Details
QD2130-WHK1S QuickScan I: QD 2100, USB Kit. 1D Linear Imager. Includes USB cable and stand. Color: White See Replacement Call for Details
QD2130-WH QuickScan I: QD 2100, SCANNER ONLY. 1D Linear Imager, PS/2/USB/Wand/RS-232 interfaces. Interface and power cables not included. Color: White. For the full kit see (Part# QD2130-WHK1S). See Replacement Call for Details
QD2130-BKK3 QuickScan I: QD 2100, PS/2 Kit. Kit Includes: 1D Linear Imager, PS/2 Cable. Color: Black. See Replacement Call for Details
QD2110-BKK2 SCANNER ONLY. 1D Linear Imager, AUX Port/MGL interfaces. Interface and power cables not included. Color: Black Check Availability Call for Details

Datalogic QuickScan I: QD 2100 Details

Decoding Capability
  • 1D / Linear codes
    • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
    • Postal Codes
      • China Post
      • Stacked Codes
        • GS1 DataBar Expanded Stacked
          • GS1 DataBar Stacked
            • GS1 DataBar Stacked Omnidirectional
            Electrical
            • Current
              • Operating (Typical)
                • 340 mA @ 5 VDC
                • Standby/Idle (Typical)
                  • 190 mA @ 5 VDC
                • Input Voltage
                  • QD2110
                    4 -14 VDC
                  • QD2130
                    5 VDC +/- 10%
                  Environmental
                  • Ambient Light
                    • 100,000 lux
                    • Drop Resistance
                      • Withstands repeated drops from 1.5 m / 4.9 ft onto a concrete surface
                      • ESD Protection (Air Discharge)
                        • 20 kV
                        • Humidity (Non-Condensing)
                          • 5 - 95%
                          • Particulate and Water Sealing
                            • IP42
                            • Temperature
                              • Operating
                                • 0 to 50 ?C / 32 to 122 ?F
                                • Storage/Transport
                                  • -40 to 70 ?C / -40 to 158 ?F
                                Interfaces
                                • RS-232 / IBM 46XX / USB Multi-Interface
                                  • QD2100
                                  • RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
                                    • QD2130
                                    Physical Characteristics
                                    • Colors Available
                                      • Black
                                        • White
                                        • Dimensions
                                          • 17.0 x 7.1 x 6.6 cm / 6.7 x 2.8 x 2.6 in
                                          • Weight
                                            • 121.9 g / 4.3 oz
                                            Reading Performance
                                            • Light Source
                                              • Red LED 610-650 nm
                                              • Print Contrast Ratio (Minimum)
                                                • 15%
                                                • Read Rate (Maximum)
                                                  • 270 reads/sec.
                                                  • Reading Angle
                                                    • Pitch
                                                      • +/- 65?
                                                      • Roll (Tilt)
                                                        • +/- 45?
                                                        • Skew (Yaw)
                                                          • +/- 65?
                                                        • Reading Indicators
                                                          • Beeper (Adjustable Tone)
                                                            • Datalogic 'Green Spot' Good Read Feedback
                                                              • Good Read LED
                                                              • Resolution (Maximum)
                                                                • 0.102 mm / 4 mils
                                                                Reading Ranges - Typical Depth of Field
                                                                • Minimum distance determined by symbol length and scan angle.
                                                                  • Printing resolution, contrast, and ambient light dependent.
                                                                    • 4 mils
                                                                      • 2.0 to 11.0 cm / 0.8 to 4.3 in
                                                                    • 5 mils
                                                                      • 1.5 to 15.0 cm / 0.6 to 6.0 in
                                                                    • 7.5 mils
                                                                      • 0.8 to 25.0 cm / 0.3 to 10.0 in
                                                                    • 10 mils
                                                                      • 0.8 to 38.0 cm / 0.3 to 15.0 in
                                                                    • 13 mils
                                                                      • 1.9 to 45.0 cm / 0.7 to 18.0 in
                                                                    • 20 mils
                                                                      • 2.5 to 65.0 cm / 1.0 to 26.0 in
                                                                    Safety & Regulatory
                                                                    • Agency Approvals
                                                                      • The product meets necessary safety and regulatory approvals for its intended use.
                                                                        • The Quick Reference Guide for this product can be referred to for a complete list of certifications.
                                                                        • Environmental Compliance
                                                                          • Complies to China RoHS
                                                                            • Complies to EU RoHS
                                                                            • LED Classification
                                                                              • IEC 60825-1 Class 1 LED Product
                                                                              Utilities
                                                                              • Datalogic Aladdin
                                                                                • Datalogic Aladdin configuration program is available for download at no charge
                                                                                • Remote Host Download
                                                                                  • Lowers service costs and improves operations
                                                                                    • QD2110
                                                                                  Warranty
                                                                                  • 5-Year Factory Warranty
