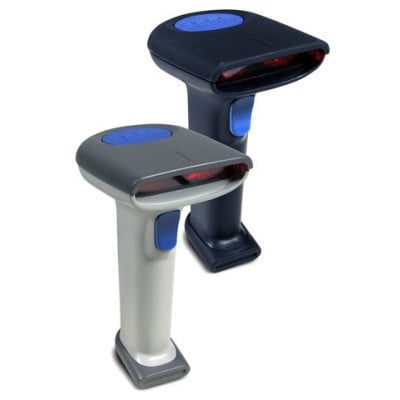

The Datalogic QuickScan 6500 is Datalogic's newest general purpose handheld scanner, featuring the latest in linear imaging technology. For retail, office, health care and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price, the QuickScan 6500 offers the best price/performance in the market. The Datalogic QuickScan 6500 provides many benefits including aggressive scanning performance, an ergonomic enclosure, excellent depth-of-field, snappy 1D and PDF417 bar code reading, bright targeting beam, and superior durability and reliability.
Aggressive linear imaging performance with
up to 14" reading on 100% UPC labels
Supports RSS and PDF-417 for future industry
compatibility
2005 Sunrise compliant
Multi-interface solution supports all popular
host terminal interfaces
Flash memory for easy software upgrades
Built tough to withstand common POS
abuse for many years
Attractive, yet durable design to complement
your point-of-sale
The QuickScan QS6500 is PSC’s newest general purpose
handheld scanner, featuring the latest in
linear imaging technology. For retail, office, healthcare
and light industrial customers looking for a handheld
scanner that has premium performance and durability
at an affordable price, the QuickScan QS6500
offers the best price/performance in the market.
The
QS6500 provides many benefits including aggressive
scanning performance, an ergonomic enclosure,
excellent depth-of-field, snappy 1D and PDF bar code
reading, bright targeting beam, and superior durability
and reliability.
Features
Benefits
Aggressive linear imaging performance
with up to 14” reading on 100% UPC
labels
Fast, ergonomic scanning of all supported
symbologies; increased productivity
Easily reads most symbologies, including highly truncated codes like RSS and MicroPDF-417
Supports most 1D symbologies,
including RSS-14
Current industry compatibility
Supports PDF-417, Micro-PDF, and UPC/
EAN Composite 2D Symbologies
Future industry compatibility
Multi-interface solution
All of the most popular interfaces are supported
Includes IBM, USB, KBW, and RS-232 interfaces
Flash memory for easy software upgrades
Lower cost of ownership since operating software
is easily upgraded
Scanner configuration parameters can be adjusted
using the Windows based software utility
New symbologies or updates for existing symbologies are easily added
Ergonomically comfortable over extended time periods
Increased productivity
Rubber over mold at all contact points
Protects scanner from POS abuse
Scanner survives multiple 5ft (1.5m) drops to
concrete
Enclosure wears better over time
Attractive, yet durable design to
complement your point-of-sale
Black and gray models match the most popular
POS terminal colors for an integrated and
professional look
Custom logo badges are available
QuickScan QS6500 Specifications
Mechanical
Dimensions
Height: 6.0" (16.5cm)
Width: 2.9" (7.4cm)
Length: 3.9" (9.9cm)
Weight
6.4 oz. (181.4 g)
Electrical
Operating Voltage
+4.5 to 14VDC ±5%
Operating Current
300mA @ 5VDC
Idle Current
200mA @ 5VDC
Environmental
Temperature Rating
Operating: 32° to 122° F (0° to 50°C)
Storage: -40° to 158° F (-40° to 70° C)
Humidity
Operating: 5 to 95% NC
Storage/Transport: 5 to 95% NC
Ambient Light Immunity
Artificial & Sunlight: 86,000 Lux
Shock
Multiple 5’ (1.5m) drops to concrete
Water & Dust
Sealed to resist airborne dust & particulates
Communications
RS-232
Keyboard Wedge
IBM 46XX
IBM USB
USB
Optical
Light Source
630nm Visible Red Diode
Scan Rate
450 scans/sec max
Sensor
2048 pixel linear imager
Scan Width
6.3" (16.5cm) @ 7" (17.8cm) from nose
Resolution
5 mils (.13mm)
Print Contrast
30% or greater
Pitch
±60°
Skew
±55°
Depth of Field*
Label Density
Range**
5 mil Linear
2.0" to 5.0" (5.1 to 12.7cm)
7.5 mils
1.0" to 7.0" (2.5 to 17.8cm)
10 mils
0" to 12" (0 to 30.5cm)
13 mils
0" to 14" (0 to 35.6cm)
20 mils
Up to 24" (61.0cm)
40 mils
Up to 40" (101.6cm)
*Depth of Field specifications are for 1D models only. PDF models will have slightly shorter Depth of Field ranges.
** Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.
