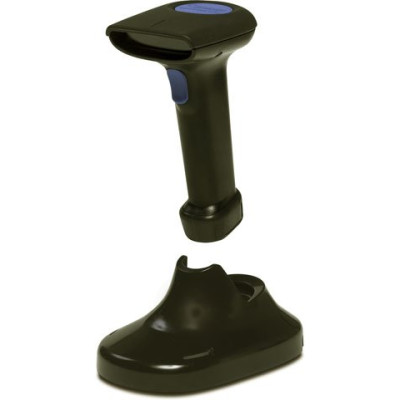

The QuickScan 6500BT combines the latest in linear imaging technology with certified Bluetooth cordless communications up to 33' away from the base unit. The QuickScan 6500BT is designed for customers seeking better performance in a handheld scanner for retail, health care, inventory, light commercial, and office applications. The QuickScan 6500BT offers aggressive scanning performance with up to 450 scans per second and improved durability and reliability resulting from the elimination of the moving parts typical in older technology laser handheld scanners. Datalogic is a part of Datalogic Scanning, inch, the recognized worldwide leader in high-performance data capture.
QuickScan QuickScan 6500BT
Linear Imager Featuring Bluetooth Wireless Technology
Features
Aggressive linear imaging performance with 450
scans per second
Bluetooth certified wireless communication with
33' / 10 m range
Upright charging cradle position enables
hands-free scanning
Out-of-range anti-theft alarm
Durable design is built tough to withstand
common abuse for many years
Flash memory for easy software upgrades
Multi-interface base station supports all
popular host terminal interfaces
Supports RSS and PDF-417 for future industry
compatibility
Batch mode allows items out-of-range to be
scanned and automatically transferred to host terminal when
in-range re-established
User replaceable battery
Faster performance, better durability, PDF capable and
cordless freedom
The QuickScan
QuickScan 6500BT combines the latest in linear imaging technology with
certified Bluetooth cordless communications. The QS6500 is designed
for customers seeking better performance in a handheld scanner for
retail, health care, inventory, light commercial, and office
applications. Both the QuickScan QS6500 and the QuickScan 6500BT offer
aggressive scanning performance and improved durability and
reliability resulting from the elimination of the moving parts
typical in older technology laser hand held scanners.
The QuickScan 6500BT reads almost all 1D bar code
symbologies at an extremely fast 450 scans per second while also
offering excellent reading performance on hard-to-read bar codes.
The QuickScan 6500BT also reads most stacked 2D codes like PDF-417 and Micro
PDF. The innovative charging-base station allows the product to scan
bar codes while its lithium ion battery is charging.
The QuickScan QuickScan 6500BT represents a great value by
combining reliability, speed, the ability to read PDF-417 codes, and
certified Bluetooth RF.
QuickScan QuickScan 6500BT Specifications
Mechanical
Dimensions
Scanner
Base
Station
Height
7.1" / 18.0
cm
2.9" / 7.4
cm
Width
2.9" / 7.4
cm
3.7" / 9.4
cm
Length
4.4" / 11.2
cm
6.1" / 15.5
cm
Weight
8.0 oz / 226.8
g
12.0 oz / 340.2
g
Electrical
Operating Voltage
+4.5 to 14VDC ±5%
Current
Operating: 220mA @ 5VDC or 120 mA @ 10V
Charging: 1,200mA @ 5VDC or 480 mA @ 10V
Battery
Li-Ion 1,000 mAH, User replaceable
Charge
via Cradle, full charge in 3.5 hours
Environmental
Temperature Rating
Operating: 32° to 122° F / 0° to 50° C
Storage: -40° to 158° F / -40° to 70° C
Humidity
Operating: 5 to 95% NC
Storage/Transport: 5 to 95% NC
Shock
Withstands multiple 5' / 1.5 m drops to
concrete
Vibration
Meets MIL STD-810E
Water & Dust
IEC 60529 rating IP52DW
Wireless
Communications
Protocol
Bluetooth 1.2 certified Class 2
Frequency
2.4 GHz Spread Spectrum with Adaptive Frequency
hopping
Range
Class 2 up to 30' / 10 m
Host
Communications
RS-232
Keyboard Wedge
IBM 46XX
IBM USB
USB
Wand Emulation
Optical
Ambient Light Immunity
Artificial & Sunlight: 80,000 Lux
Light Source
630nm Visible Red Diode
Scan Rate
450 scans/sec max
Sensor
2048 pixel linear imager
Scan Width
6.3" / 16.5 cm @ 7" / 17.8 cm from nose
Depth of Field: Range Comparisons
LABEL DENSITY
RANGE*
5 mils
2.0 - 4.5" / 5 - 11.4
cm
7.5 mils
1.0 - 6.0" / 2.5 - 16.2
cm
10 mils
0 - 10.5" / 0 - 26.7
cm
13 mils / 100% UPC
0 - 13" / 0 - 33
cm
20 mils
Up to 21" / 53.3
cm
40 mils
Up to 35" / 89
cm
* Minimum distance determined by symbol length and
scan angle. Printing resolution, contrast, and ambient light
dependent.
Resolution
5 mils / .13 mm
Print Contrast
30% or greater
Pitch
±60°
Skew
±55°
Decoding Capability
UPC A, E / EAN 8, 13 / JAN 8, 13 Add-ons (sub 2
or P2, sub 5 or P5 & C128)
Codabar/NW7
Code 39 (full ASCII)
Code 11
Code 16K
Code 93
Code 128
UK/Plessey
MSI/Plessey
RSS-14, Expanded, Stacked, Limited
ISBN / Bookland EAN
Pharmacode 39
Interleaved 2 of 5
Standard 2 of 5
IATA
RSS Composites
PDF-417
Micro-PDF
Safety & Regulatory
Electrical: Complies to:
Gost R
UL
cUL
IEC60950
Emissions: Complies to:
FCC-A
EN 55022-B
CISPR-22
VCCI-B
Radio
FCC Part 15C, R and TTE, IC and IDA
For RF
Approved countries, please contact PSC.
