Photo of Datalogic QuickScan Mobile: QM2100
Datalogic logo

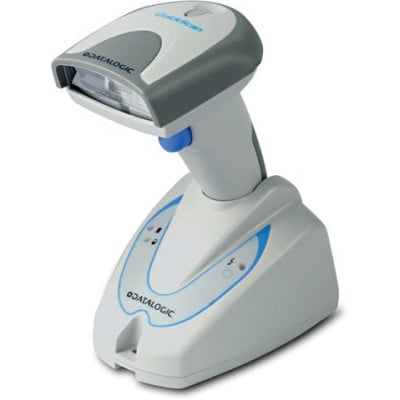

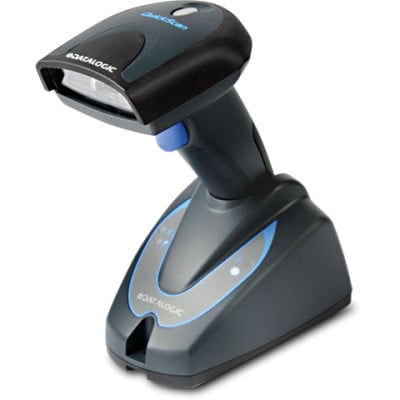

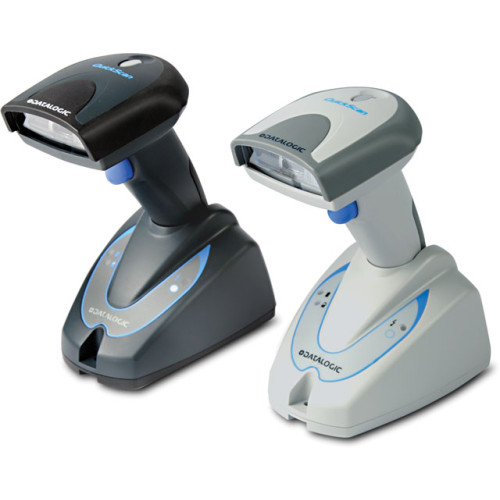

Datalogic QuickScan Mobile: QM2100 Scanner

Datalogic QuickScan I QBT2131 A newer version of this item is available.
It is replaced by the Datalogic QuickScan I QBT2131.
The QuickScan Mobile: QM2100 reader features Datalogic's cordless STAR-System, the market's most secure and reliable system for 433/910 MHz narrow band communications. Datalogic's STAR radio system is fast, easy to use and guaranteed Wi-Fi interference free. The Datalogic QuickScan Mobile: QM2100 reader's 40 ft / 12 m radio range capability provides a wide working area eliminating the restraints of cabled devices, making the workplace safer and more efficient. Solid-state electronics ensure superior reliability and durability versus laser devices and provides for fast and snappy reading performance. Standard multi-interface capability provides host connectivity via USB, RS-232, Keyboard Wedge and Wand Emulation. Convenient Plug & Scan kits provide for easy installation and the Scan-While-Charging feature combined with a long lasting user replaceable lithium-Ion battery allows for hands-free reading while simultaneously charging the battery. The Datalogic patented Batch Mode capability allows for the collection of data when out-of-range from the base station.
Questions?
1-888-875-7170
We respond to every email
QuickScan Mobile: QM2100 Options
Part # DescriptionAvailabilityPriceOrder
QM2130-BK-910K1 QuickScan I: QM2100, USB Kit. Linear Imager. Includes charging/communications base station and USB cable. Color: Black. See Replacement Call for Details
QM2130-WH-910LPK2 QuickScan I: QM2100, Magellan Kit. Linear Imager. Includes charging/communications base station and Magellan AUX Port Cable (Part# 90G001092). Color: White. Check Availability Call for Details
QM2130-WH-910K1 QuickScan I: QM2100, USB Kit. Linear Imager. Includes charging/communications base station and USB cable. Color: White. Check Availability Call for Details
QM2130-WH-910 QuickScan I: QM2100, Base Station Kit. Linear Imager. Color: White. Includes charging/communications base station. Does not include necessary cables or power supply. For the full kit see (Part# QM2130-WH-910K1). Check Availability Call for Details
QM2130-BK-910-C322 QuickScan I: QM2100, BLK, 910 MHz, USB KIT, SH5204 Check Availability Call for Details
QM2130-BK-910 QuickScan I: QM2100, Base Station Kit. Linear Imager. Includes communications/charging base station. Color: Black. Does not included necessary cables. For the full kit see (Part# QM2130-BK-910K1). Check Availability Call for Details
QM2110-BK-910 QuickScan Mobile Handheld Reader, QuickScan Mobile 2130 (910 MHz, IBM Interface, Scanner and Base) - Color: Black Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
90ACC1893 US power supply, 5V, AC/DC Ships Free Today $23.46
90G000008 Cable, CAB-327, RS-232, DB-9 RCPT, E/P, STRT, 2M. Ships Free Today $18.87
90A051945 Cable, USB cable (Type A), 6 ft. straight Ships Free Today $19.36
90A051230 Cable, RS-232 (Serial), 6 feet, Straight, 9-Pin Female Connection. Ships Free Today $19.95
90A051922 Cable, CAB-412, SH3314, USB Type A, OPT-Power, Coiled Ships Free Today $24.40
90A051891 Cable, RS-232, 6 feet, Coiled, 9 Pin Female, CAB-408. Ships Free Today $24.63
90ACC1886 Power cord, US, 2 Pin, Compatible with Datalogic. Ships Free Today $12.34
90G001092 Cable, CAB362, RS-232, RJ, 6 feet POT Magellan to Gryphon, Heron, Dragon Ships Free Today $25.00
90A051330 Cable, RS-232, 6 feet, Coiled, 9 Pin Female Connector, Requires Power supply (Part# 90ACC1893). Ships Free Today $23.46
90ACC1882 Universal Power, AC/DC Power supply, Requires, but does not included, cord (Part# 90ACC188) Ships Free Today $23.46
90ACC1885 Power cord (EU 2-Pin) Ships Free Today $12.34
90G001080 Cable, 25 pin RS-232 cable for Datalogic scanners Ships Free Today $19.00
90G001020 Cable, ATXT cable, For Datalogic scanners Ships Free Today $18.78
90G001050 Cable, CAB-325, STRT, IBM3151 34XX
Ships Free in 3-5 Days
$18.78
90G001030 Cable, CAB-323, WAND EM.STRT DB-9 PIN SQUEEZE
Ships Free in 3-5 Days
$18.78
90G001000 Cable, CAB-320,25M RS-232 CB STRAIGHT, POWER FROM TERMINAL
Ships Free in 3-5 Days
$18.78
90ACC1887 Power cord (UK 2-Pin)
Ships Free in 3-5 Days
$12.34
90A401007 Base Station (910MHz, Black) for the QuickScan Mobile
Ships Free in 3-5 Days
$99.31
Retail $202
Save 50%
90A401006 Base Station (910MHz, White) for the QuickScan Mobile
Ships Free in 3-5 Days
$151.50
Retail $202
Save 25%
90A051903 Cable, USB (IBM) SRT.Cable, D120 D220 GRYPHON, D130 HERON, CAB41
Ships Free in 3-5 Days
$35.74
Retail $44
Save 18%
90A051740 Cable, CAB-391 S-IBM/PS/2 Wedge Mini-din External Power supply (requires (Part# PG110) power supply)
Ships Free in 3-5 Days
$24.63
90A051710 Cable, (CAB-389 RS-232/Beetle, 9P M-CONN STR)
Ships Free in 3-5 Days
$18.78
90A051700 Cable, (RS-232/Beetle 9P, Male Coiled)
Ships Free in 3-5 Days
$23.46
90A051490 Cable, (CAB-375 DEC VDT Straight, 4P Phone CONN)
Ships Free in 3-5 Days
$46.86
Retail $63
Save 25%
90A051470 Cable, CAB-373 WYSE VDT 60/120/160/185/370 Straight Wedge Cable 4-pin Telephone Connector
Ships Free in 3-5 Days
$47.80
Retail $69
Save 30%
90A051360 Cable, CAB-365 IBM PS/2 Coiled, MiniDin Wedge
Ships Free in 3-5 Days
$23.46
90A051350 Cable, CAB-364,25M COILED, RS-232. Requires Power supply (Part# 90ACC1919), not included.
Ships Free in 3-5 Days
$23.46
90A051340 Cable, CAB-363 RS-232 Coiled, 25-Pin FE DCE
Ships Free in 3-5 Days
$23.46
90A051210 Cable, Cab-348 Wand Emulation, Coiled, 9-pin Male
Ships Free in 3-5 Days
$23.46
Protect Your Product
Datalogic Service Plans (W-QM-3)
SERVICE PLUS 2 DAYS QUICKSCAN MOBILE 3-YEARS
Ships in 3-5 Days
$50.00
+ Add to Quote
Datalogic Service Contract - 3 year (W-QM21-3)
2 DAY 3 Year EXT
Ships in 3-5 Days
$33.00
+ Add to Quote
Datalogic Service Contract - 5 year (Q-QM21-5)
QM2100 QUICKSCAN 5 yearS QUICK REPLACEMENT COMPREHENSIVE CONT
Ships in 3-5 Days
$97.00
+ Add to Quote
Datalogic Service Contract - 3 year (E-QM21-3)
QSCAN QM2100 EofC 5 DYS 3 yearS
Ships in 3-5 Days
$21.00
+ Add to Quote
Datalogic Service Contract - 5 year (E-QM21-5)
WARRANTY, SERVICE PLUS 5-DAY, 5 YEARS, QUICKSCAN QM2100
Ships in 3-5 Days
$55.00
+ Add to Quote

Datalogic QuickScan Mobile: QM2100 Details

The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Mobile QM2100 handheld reader is the perfect entry level cordless solution for general purpose data collection applications.
For small to mid-size business owners, the freedom of dependable wireless devices has been priced out of reach due to features and functionality that are just not necessary for basic data collection tasks. For simple point-to-point connectivity (single reader to single base station), the QuickScan Mobile reader offers security and reliability with Datalogic's STAR Cordless System. It's fast, easy to use and guaranteed Wi-Fi interference free.

Outstanding bar code reading performance and reliability make the QuickScan Mobile reader ideal for use at the point of sale, plus this multi-purpose device can also double for inventory, price checking and shelf replenishment activities. A 12 m / 40 ft radio range provides a wide working area and eliminates the restraints caused by cabled devices, providing a safer and more efficient work environment.

Standard multi-interface capabilities (QM2130) provide host connectivity via USB, RS-232, Keyboard Wedge and Wand Emulation while IBM interface models (QM2110) provide connectivity via IBM46XX, USB and RS-232 emulation. Convenient Plug & Scan kits provide for easy installation and include everything required to get up and running quickly.

Features
  • Multi-purpose device for inventory, price checking and shelf replenishment activities
  • 100% Compatible with Datalogic STAR Cordless System
  • Radio range (open air) 12 m / 40 ft for point-to-point connectivity
  • Radio frequencies available in 433 MHz or 910 MHz
  • User replaceable lithium-ion battery
  • Scan-while-charging capability
  • Latch mechanism secures reader in cradle providing stable mobility for use on carts
  • Batch mode capability
The Datalogic QuickScan Mobile: QM2100 is also known as the Data Logic QuickScan Mobile: QM2100 .
