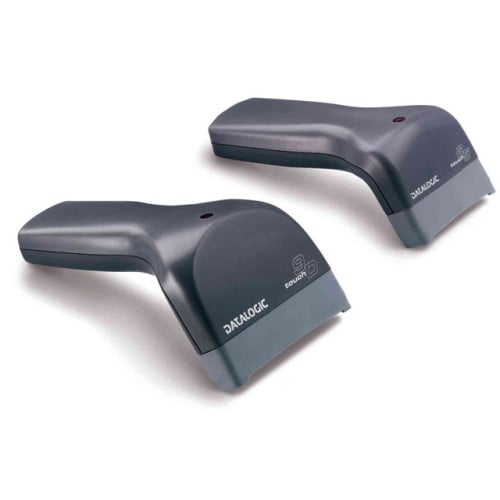

Datalogic Touch Scanner

General Description

The Datalogic Touch CCD contact readers represent the ideal product whenever a cost-effective solution is required, without compromising reading performance and product quality. Touch provide a complete "all in one" multi-interface solution, including RS232, USB, Wedge and Pen emulation. The interface can be changed by simply substituting the cable and configuring the reader properly. A scan rate of 256 scans/sec guarantees outstanding performance in terms of reading promptness, especially on poorly printed or damaged codes, where several decoding attempts may be required. Furthermore, the Touch family benefits from PUZZLE SOLVER, a decoding technique introduced and patented by Datalogic. It allows the readers to collect partial data from successive scans and combine it to obtain complete information, rather than approaching the decoding process as a "one scan" confined operation. This increases "good read" results considerably. The Touch Pro models also add built-in Data Formatting and Data Editing features that allow the user to shape the collected data according to whatever format is required by the application software. Among the other new features, Datalogic has introduced Electronic Article Surveillance (EAS) technology to the Touch 65 Pro EAS model. EAS is a system that helps reduce shoplifting losses, used to identify items as they pass through a gated area by using tags and labels. The Touch 65 Pro EAS is provided with an integrated EAS antenna and special EAS cable for easy connection and compatibility with EAS Systems, allowing cashiers to scan bar code labels and deactivate EAS tags with one smooth motion.

Features

Scan rate 256 scans/sec

USB, RS232, Wedge and Pen in a single model

RSS code reading available

Enhanced multistandard architecture

65 and 90 mm reading window

PUZZLE SOLVER™ decoding system

Complete data formatting and data editing (Pro models)

EAS dedicated model

Sunrise 2005 Compliant

Specifications

Electrical Characteristics

Power Supply: 5 Vdc ± 5%, Directly from the terminal or PC in USB, Wedge and Pen mode, or via an external PG5 power supply in RS232 mode

Consumption: 150 mA max.

Mechanical Characteristics

Dimensions: 164 x 77.5 x 63 mm (Touch 65); 175 x 100 x 80 mm (Touch 90)

Weight (approx.): 1160 g (Touch 65); 195 g (Touch 90)

Case Material: ABS

Cable Length: 2 m (6.6 ft) linear

Performance

Light Source: Visible red LED

Max. Resolution: 0.10 mm / 4 mils (Touch 65); 0.13 mm / 5 mils (Touch 90)

Scan Rate: 256 scans/sec

Print Contrast Ratio: 15% (min)

Reading Field: 65 mm (Touch 65); 88 mm (Touch 90)

Reading Distance: 0 to 50 mm on EAN 13 code MAG1

Readable Bar codes: 2/5 family, Code 39, Code 32, Code CIP 39, Code 128, EAN128, EAN/UPC, ISBN/ISSN, CODABAR, Code 93, ISBT128, MSI, Plessey, Telepen, Delta IBM, Code 11, Code 49, Code 16K, RSS

Reading Indicators: LED and adjustable tone "beeper"

Reading Mode: Single or autodiscrimination code

Programming Method: Manual: Reading special bar codes; Automatic: (with RS232) S/W commands through the serial port

Sm@rtSet™: Windows configuration program

Data Management: Touch 65/90: Data formatting (Header, Teminator, Code ID, Code Length, etc.); Touch 65/90 Pro: Data formatting and data editing (string deletion and insertion, character replacement, code concatenation, etc.)

Interfaces: USB, RS232, Wedge, Pen

Utilities: OLEPOS and JAVAPOS

Environment

Ambient Light Conditions: 30,000 lux max. (contact with code surface)

Operating Temperature: 0 to 55 °C

Storage Temperature: -20 to 70 °C

Humidity: 90% non condensing

Drop Resistance: Withstands drops from 1.2 m onto a concrete surface

Environmental Protection: IP30
