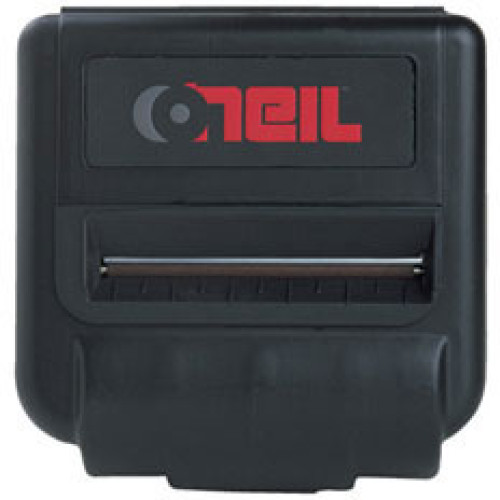

Photo of Datamax-O'Neil 4t
Datamax-O'Neil logo

Datamax-O'Neil 4t Portable Printer

The 4t, the Windows -compatible portable printer generates a full four-inch-wide (104 mm) printout utilizing multiple fonts and sizes, bar codes, custom logos, graphics, and signatures. It operates easily using wireless input and flash memory for simple updates in the field. It activates when data is sent and automatically goes back to sleep when not in use. The microFlash4t also comes standard with IrDA-compliant wireless infrared communications technology. Data can be sent from a handheld computer from up to three feet (one meter) away, without any cables to get tangled or damaged.

Print Method ?

Printer Type ?

Interface Options

Maximum Print Width ?

Print Resolution ?

Print Speed ?

4t Options
Part # DescriptionAvailabilityPriceOrder
200114-100 4t, 4" Direct thermal, 203 dpi, 2.5 ips, Linerless, IrDA, Serial, standard belt clip. Not Used with swivel clip. Ships Today $663.56
Retail $935
Save 29%
200246-100 4t, 4" Direct thermal, 203 dpi, 2.5 ips, IrDA, Serial, stainless belt clip. Not Used with swivel clip. Ships in 24-48 Hours $609.75
Retail $885
Save 31%
200115-100 4t, Portable Direct thermal Printer, 203 dpi, 4 inch Print width, 2.5 ips, Linerless and Swivel Clip Ships in 24-48 Hours $663.56
Retail $935
Save 29%

Datamax-O'Neil 4t Details

Data Sheet

  • Prints full size, multi-part delivery receipts and invoices at point of delivery
  • Rugged enough to be used in the front seat of delivery vehicle or carried into receiving area
  • Powered by vehicle's 12-volt system (without voltage adapter), or used remotely with internal battery pack
  • Contains up to 200 sheets of 8.5" x 11" or A4 paper

Specifications

Physical Characteristics:

Size

15.5” x 11.75” x 4.25” 3.93 x 298.45 x 107.95 mm

Weight

101.4oz / 2875g

Environment:

Operating Temp

-20º C to 40º C

Storage Temp

-40º C to 70º C

Charging Temp

5º C to 40º C

Relative Humidity

10% to 90% noncondensing

ESD Protection

8kV Air, 4 kV Contact

Print Technology:

Print Head

9 pin impact

Print Speed

180 Characters per inch

Print Head Life

100 Million Dots

Ribbon Cartridge

2,000,000 Characters

Fonts & Languages:

Memory Capacity

Flash/RAM Memory: 4/1 Mbit

Available Fonts

10 CPI Pica/Elite; 12 CPI Pica/Elite

Int’l Characters

Arab-T, Arab-S, Arab-E, Cyrillic (CY110 & CY210), Greek (GRDOS & GRWIN), Hebrew (HB110, HB210, HB310), Latin

Power Source (Input):

DC Jack 1

12-15 (AC Adapter) spike and surge protected

DC Jack 2

12-15V (Cigarette Adapter) spike and surge protected

Optional Battery

12V Nickel Metal Hydride 3600 mAh

Battery Characteristics:

Type

12V NIMH 3600mAH (DR36)

Endurance

Approx. 224 invoices on one charge

Battery Life

80% of original capacity after 400 cycles

Recharged

3-4 hours (printer connected to an AC Adapter)

Communications:

RS-232 Serial

Up to 38.4k baud. Cables available for most popular laptops and handhelds.

IrDA

IrDA compliant infrared data communications up to 115.2k baud.

Media:

Paper

Fan-fold paper. 3” to 9.5” wide/A4

Number of Copies

Original + 3 copies

Capacity

200 Sheets

Agency Approvals:

Agency

FCC B, CE, C-Tick

Warranty:

Warranty

1 Year (including printer case)

Optional Accessory:

Softcase with storage for AC, Cigarette adapters, Data cable, and Notebook/ Hand held computers

Mounting Brackets - Locking/Non-locking

Battery

External Battery Charger

Accessories

Accessory List

Part Number

Description

Bag

750044-000

8i Carrying Case (Softcase)

Bag For Cradle

750063-000

Softcase, Std Cradle

Mounting Bkt.

220084-000

8i Mounting Bracket (locking)

220142-000

Mf8i Mounting Bracket (economy)

Power Adapters

220140-000

Ac Adapter (US) 19v, 45w, 2.37a

220141-000

Kit, Ac Adapter (Euro Cable) Eos 19v

220108-000

Kit, Truck Power

Battery

550032-000

Battery, 12v, 3500mah, O'Neil

Cig Adapter

510002-002

Cigarette Lighter Adapter 5 Amp Fuse, 6', Ul.

Cables

210147-000

Data Cable - Db9f - 7' (non Coiled)

Manual

110076-000

User Guide, Mf8i
