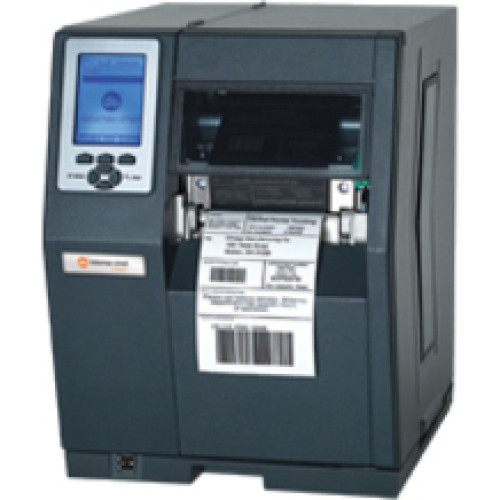

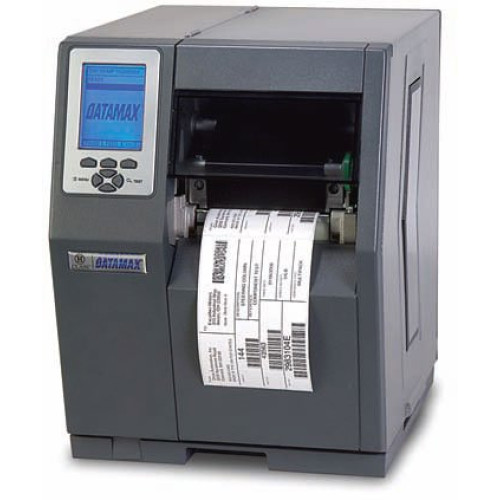

Datamax-O'Neil H-6212X Barcode Label Printer
Part #: C62-00-48E00004 | SKU: DAT127609

The Datamax-O-Neil H-6212X thermal barcode printer family is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. Datamax-O-Neil H-6212X printers provide throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. Datamax-O-Neil H-6212X printers offer the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications. In addition, Datamax-O-Neil H-6212X printers are designed with options to address evolving RFID applications.

Datamax-O'Neil H-6212X Barcode Label Printer

Part Details: H-6212X, Thermal transfer Printer (203 dpi, 12 ips Print speed, 8MB Flash, PLZ, Basic Peel Present, Internal Rewind, 3 inch Hub)

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232), USB
Manufacturer Datamax-O'Neil
Max Label Width 6.7"
Max Roll Outer Diameter 8
Model Name H-6212X
Print Resolution 203 dpi
Print Speed 12 ips
Printer Type Industrial
Ribbon Core Size 1 inch

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.61"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Mirror Printing
    • Peel Facility
    • Rewinder
    • Media Supply Hub
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Standard 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • GS1 DataBar
    • HIBCC
    • EAN/JAN-13
    • EAN/JAN-8

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: H-6212X
  • Product Name: H-Class H-6212X Label Printer
  • Product Line: H-Class

Physical Characteristics

  • Height: 16.4"
  • Width: 15"
  • Depth: 19.3"
  • Form Factor: Desktop
  • Weight (Approximate): 53 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 6.70"
  • Media Type:
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Perforated Label
    • Ticket Stock
    • Black Mark
    • Roll Fed
    • Continuous Form
    • Tag Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Label Taken Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • H-Class H-6212X Label Printer
    • Software CD
    • H-Class H-6212X Label Printer
    • Software CD

Memory

  • Standard Memory: 16 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLI
    • PLZ

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
