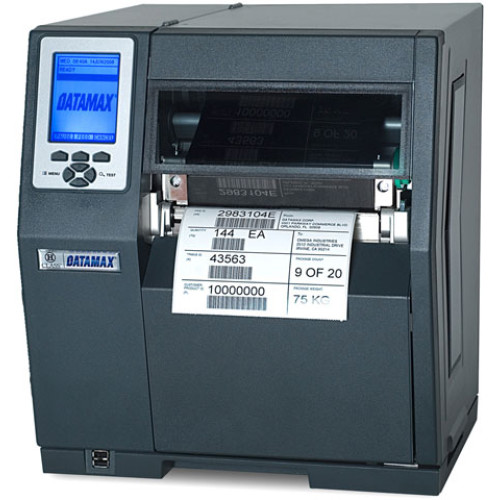

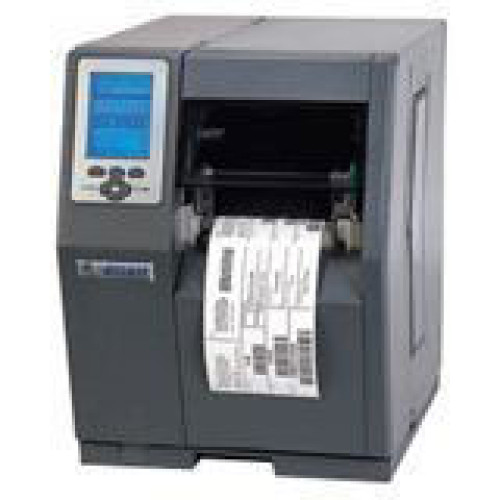

C93-00-48040004 - Datamax-O'Neil H6308 Bar code Printer

The H6308 allows up to 6.4" or 162mm wide printing, a large graphic display provide optimum viewing and control of all printer functions, a high-speed 32 bit/200MHz multi-tasking processor decreases processing times to increase data throughput, Standard 16MB DRAM and 8MB FLASH memory assures the space needed for seamless processing of the most demanding applications.The H6308 provides Standard Ethernet, USB, Parallel and Serial interfaces ensure easy host connectivity across multiple platforms,Standard SDIO and USB Host device ports provide support for additional memory and application versatility

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
C93-00-48040004 Datamax-ONeil H-6308 Printer, H6308 8MB TALL BI-TT CUTTER 3 PLASTIC MEDIA HUB
Ships Free in 3-5 Days
$2,964.33
Retail $4502.60
Save 34%

C93-00-48040004 Details

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.40"
  • Recommended Use: Label Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: H-6308
  • Product Name: H-6308 Thermal Label Printer
  • Product Line: H-Class

Physical Characteristics

  • Height: 13"
  • Width: 15"
  • Depth: 18.9"

Media Types & Handling

  • Maximum Label Width: 6.70"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Other

  • Platform Supported: PC
  • Additional Information: Graphics Support : .PCX, .BMP, .IMG, and Datamax ASCII Format files

Warranty

  • Limited Warranty: 2 Year

Cutter

  • Cutting Method: Automatic
Part # Description Availability Price Order
NSC-OSMC-NEW-24 Datamax-O'Neil Service Plan, Minimize downtime and extend the life of your equipment with an On-Site Service Plan for new printers. When trouble occurs, a technician will arrive on-site in 48 hours with repair parts in-hand.
Ships Free in 3-5 Days
$442.65
Retail $557
Save 20%

The Datamax-O'Neil C93-00-48040004 is also known as DMX-H6308TTCUT or C930048040004 .
