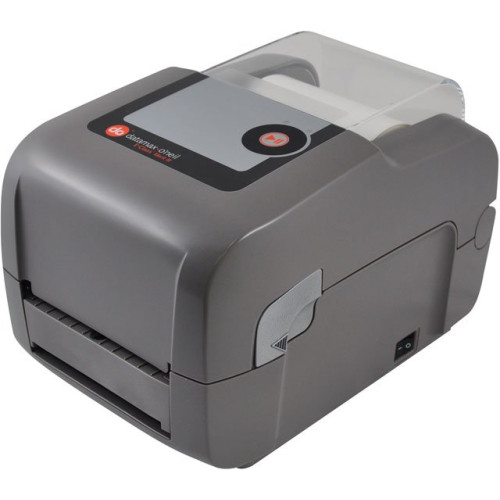

EA2-00-0J000A00 - Datamax-O'Neil E-Class: E-4205 A Bar code Printer

The Datamax-O-Neil E-Class: E-4205 A is the E-Class advanced model, designed for applications that need networking communications, faster print speed, or special media compatibility. The E-Class: E-4205 A includes all the features and options of the E-4204, plus it includes parallel and Ethernet communications ports, a positionable media indexing sensor and prints at up to 5 inches per second.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
EA2-00-0J000A00 E-Class: E-4205 A, Direct thermal only, Serial, Parallel, USB and Ethernet interfaces, 203 dpi, 4.25" print width, 5"/sec print speed, 16MB DRAM/64MB Flash, DPL, adjustable media sensor, tear bar, LED/Button UI, US power cord.

EA2-00-0J000A00 Details

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Tear Bar
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • Data Matrix
    • QR Code
    • Aztec Code
    • GS1 DataBar
    • TCIF
    • Micro PDF-417
    • K-Mart NON EDI
    • UPC 2 and 5 Digit Addendums
    • TLC 39

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4205A
  • Product Name: E-Class E-4205A Mark III Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.4"
  • Width: 8"
  • Depth: 11.1"
  • Form Factor: Desktop
  • Weight (Approximate): 5.29 lb
  • Color: Warm Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Continuous Label
    • Roll Fed
    • Tag
    • Perforated Label
    • Gap
    • Black Bar
    • Notch
  • Media Thickness: 10 mil
  • Media Sensor: Adjustable Media Sensor
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLI
    • PLZ
    • PLE
    • DPL

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LED

Other

  • Platform Supported: PC
Part # Description Availability Price Order
TSP-US-DLP-2 BCI Service Contracts, True Support contract 2-year - Desktop Label Printers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $54 per year for 2 years, billed annually.
Ships Free in 3-5 Days
$54.00
NSC-DMC-NEW-24 Datamax-O'Neil Service Contract - 2 Year, 24 Month Depot Maintenance Agreement For New Zebra/Sato/Datamax Printr
Ships Free in 3-5 Days
$258.43
Retail $325
Save 20%

The Datamax-O'Neil EA2-00-0J000A00 is also known as DMX-E4205ADTSUL or EA2000J000A00 .
