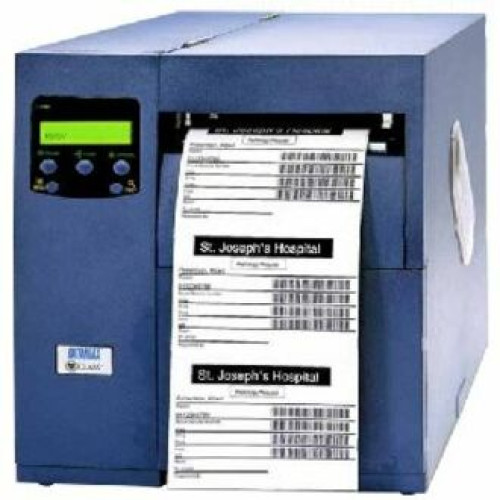

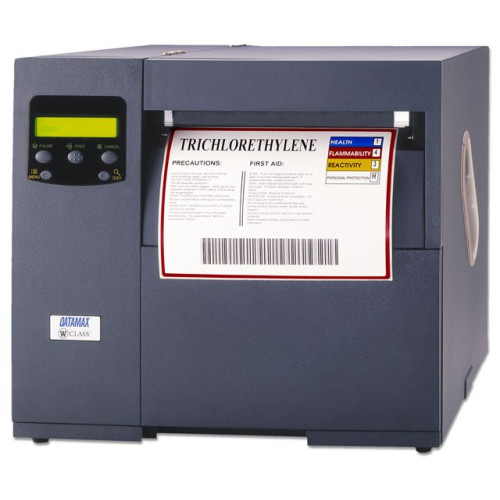

G62-00-21400007 - Datamax-O'Neil W6208 Bar code Printer

The W6208 features an all-metal construction designed to withstand adverse work environments. This makes it ideal for heavy-duty applications in the automotive chemical transportation and paper-processing industries. It is equipped with a 32-bit 90-MHz true multi-tasking Motorola ColdFire processor and 16MB of standard memory which provides accelerated first-label output and variable-data printing. It is an ideal printer for compliance labeling applications including ODETTE EAN-128 and AIAG labels.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
G62-00-21400007 W6208, Thermal transfer, 203 dpi, 8 ips, 6.61" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes rewinder & US power cord. Order cables separately. See accessories.
Information:   |  Download Datamax-O'Neil W6208 driver  |  Specifications  |
Accessories:   |  No accessories available  |  Bar code Software  |  Datamax-O'Neil W6208 service contract  |
Supplies:   |  Datamax-O'Neil W6208 Label  |  Datamax-O'Neil W6208 Ribbon  |  Datamax-O'Neil W6208 Print head  |

G62-00-21400007 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 8 ips
  • Maximum Print Width: 6.62"
  • Maximum Label Width: 6.7"
  • Maximum Label Length: 99.99"
  • Media Sensor:
    • Reflective
    • See Through
  • Input Voltage: 110 V AC
  • Input Voltage Range:
    • 90 to 132 V AC
    • 180 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 2MB
  • Mobile Printer: No

General Information

  • Manufacturer: Datamax
  • Product Name: W-6208 Label Printer

Physical Characteristics

  • Dimensions: 14.8" (375.92mm) x 13.8" (350.52mm) x 18.50" (470mm)
  • Weight: 55 lb (24.95 kg)

Included Features

  • Included Features:
    • Internal Rewinder
    • Media Supply Hub 3"

Agency Approvals

  • Agency Approvals:
    • UL
    • Canadian
    • European
    • FCC Class A
    • CE

Other

  • Package Contents:
    • W-6208 Label Printer
    • Accessories CD
    • Black Power Cord With US Plug

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"

Environmental Conditions

  • Temperature: 32°F (0°C) to 100°F (38°C) Operating

Warranty

  • Manufacturer Warranty: 5 Year(s)

The Datamax-O'Neil G62-00-21400007 is also known as DMX-W6208R or G620021400007 .
