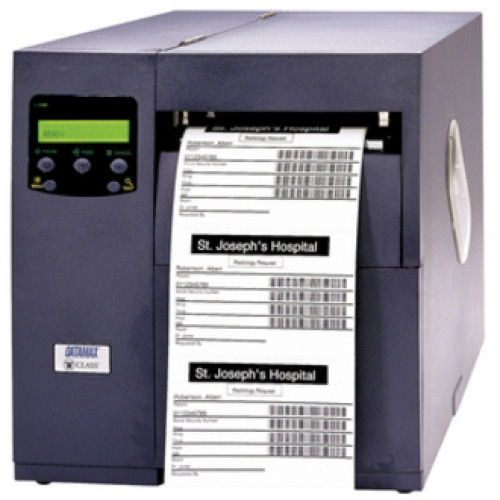

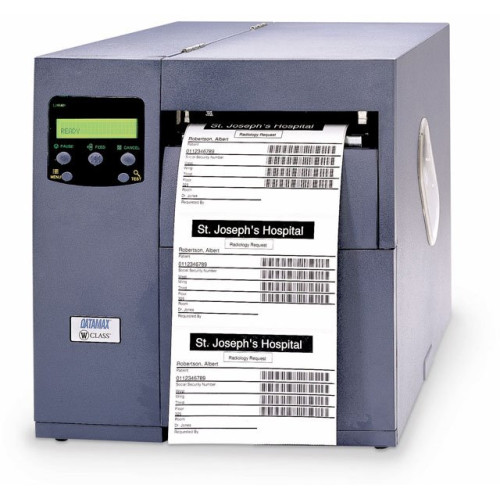

Datamax-O'Neil W-6308 Barcode Label Printer
Part #: G63-00-21200007 | SKU: DAT60322

The W-6308 features a tough all-metal chassis designed to withstand adverse work environments making it ideal for heavy-duty industrial applications. It is equipped with a 32-bit 90-MHz true multi-tasking Motorola ColdFire processor and 16MB of standard memory which provides accelerated first-label output and variable-data printing. It is an ideal printer for compliance labeling applications including ODETTE EAN-128 and AIAG labels.

Datamax-O'Neil W-6308 Barcode Label Printer

Part Details: W-6308, Thermal transfer Printer (300 dpi, 6 inch Print width, 8 ips Print speed, Serial and Parallel Interfaces, Peel-Present and Rewind)

Additional Information

Interface Options Parallel, Serial (RS-232)
Manufacturer Datamax-O'Neil
Max Label Width 6.7
Max Roll Outer Diameter 8
Model Name W-6308
Print Resolution 305 dpi
Print Speed 8 ips
Printer Type Industrial
Printing Technology Thermal Transfer

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 6.40"
  • Recommended Use: Label Print
  • Features:
    • Rewinder
    • Peel Facility
    • Rewind
  • Barcode Symbology Supported:
    • Code 39
    • Interleaved 2 of 5
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • LOGMARS
    • UPC-A
    • UPC-E
    • UPC 2 or 5 Digit Extension
    • EAN-8
    • EAN-13
    • EAN With 2 or 5 Digit Extension
    • UCC/EAN 128
    • Code 93
    • MSI PLESSEY
    • POSTNET
    • PDF-417
    • UPS Maxi Code
    • Data Matrix
    • Telepen
    • Code 128 MOD 43

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: W-6308
  • Product Name: W-6308 Thermal Label Printer

Physical Characteristics

  • Height: 14.8"
  • Width: 13.8"
  • Depth: 18.5"

Media Types & Handling

  • Maximum Label Width: 6.70"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emissions Standard:
    • CE
    • FCC Class A
  • Additional Information:
    • Alphanumeric font size: From .035" to .64"
    • Fonts and graphics can be printed in four directions: 0°, 90°,180° and 270°
    • Graphics Support: .PCX, .BMP and .IMG files
    • Modified IBM Code: Page 850

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Warranty

  • Limited Warranty: 5 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: DPL
Extended Details
