Photo of Datamax-O'Neil J12-00-0J000U00 Datamax-O'Neil logo

Earn up to $200 back on a new Datamax O'Neil printer when you trade in any Datamax O'Neil or equivalent printer.
Offer valid through December 31, 2014. Contact us for details.

Datamax-O'Neil E4203

Direct thermal, 203 dpi, 3 ips, 4" print width, serial, parallel and USB interfaces, 2MB DRAM, 1MB flash. Includes US power cord. Order cables separately. See accessories.

This part is replaced by J32-00-0J000U00.
Call for Details

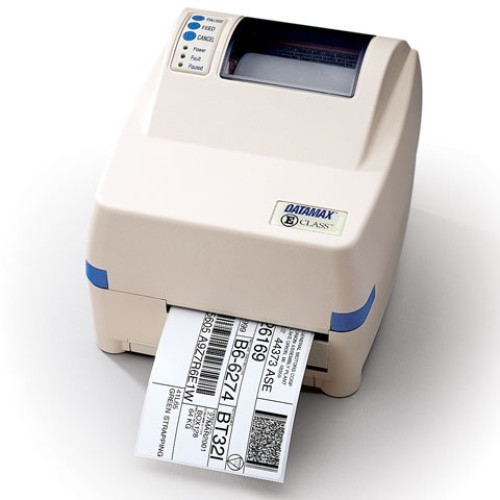

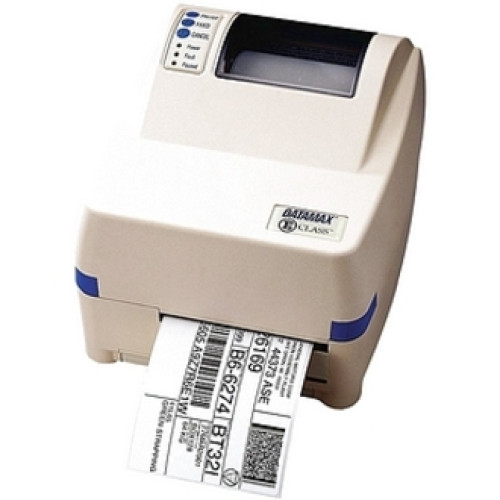

Datamax-O'Neil E4203 Printer

The E4203 printer was designed from the ground up to be more price, feature, and value competitive than any other printer in its class. The E4203 can print a wide variety of labels ranging from small office shipping labels to compliance and general purpose product identification labels and tags. Medical laboratories, automobile service shops, shipping/mail centers, and inventory stock rooms are all typical examples of the types of businesses that can benefit from the E4203. and with PDF417 and MaxiCode 2D bar code capabilities, the E4203 can print complex transportation symbols and label formats. The E4203 printer is available in Direct thermal or Thermal transfer mode. All units ship with product documentation.

Full specifications (PDF)

Manufacturer part number: J12-00-0J000U00

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4203
  • Product Name: E-4203 Thermal Label Printer

Physical Characteristics

  • Height: 7.1"
  • Width: 8.8"
  • Depth: 10"

Interfaces/Ports

  • USB: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • E-4203 Label Printer
    • US Power Cord
    • E-4203 Label Printer
    • US Power Cord
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emissions Standard:
    • CE
    • FCC Class A
  • Additional Information:
    • See-through media window
    • Flash upgradeable firmware
    • A unique case top for direct thermal application
    • Graphics Supported: .PCX, .BMP and .IMG files
    • External power supply: Specify appropriate power supply and cord when ordering

Media Types & Handling

  • Maximum Label Width: 4.30"
  • Maximum Label Length: 24"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Size: 4.30" x Roll Paper
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 4"

Memory

  • Standard Memory: 2 MB
  • Memory Technology: DRAM
  • Flash Memory: 1 MB

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 110 V AC
