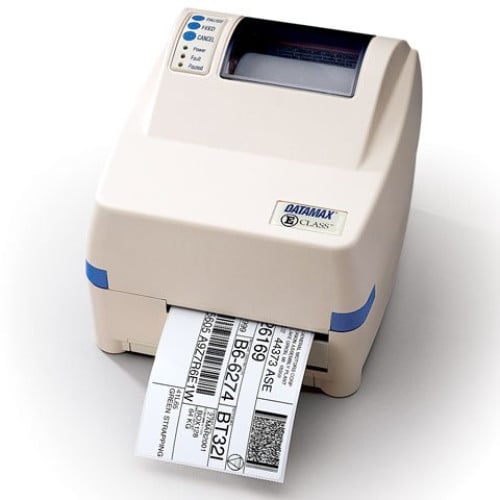

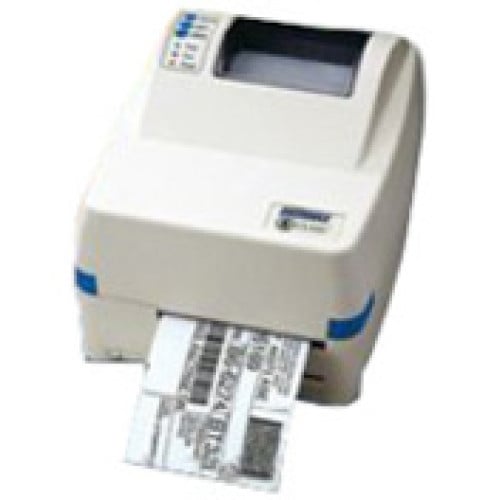

J12-00-1J000U00 - Datamax-O'Neil E4203 Bar code Printer

The E4203 is a lightweight, space-saving line of thermal printers designed with leading edge technology for a multitude of label and tag printing applications. engineered for small size but packed with big features including an advanced 32-bit multi-tasking processor with two megabytes of memory, serial, parallel, and USB communication interfaces, and a three-button control panel. The E4203 are the most affordable entry-level printing solution available in the marketplace today.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
J12-00-1J000U00 E4203, Thermal transfer, 203 dpi, 3 ips, 4" print width, parallel, serial, & USB interfaces, 2MB DRAM, 1MB flash. Includes US power cord. Order cables separately. See accessories.

J12-00-1J000U00 Details

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4203
  • Product Name: E-4203 Thermal Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.1"
  • Width: 8.8"
  • Depth: 10"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emissions Standard
    • FCC Class A
    • CE Mark
  • Additional Information:
    • See-through media window
    • Flash upgradeable firmware
    • A unique case top for direct thermal application
    • Graphics Supported: .PCX, .BMP and .IMG files
    • External power supply: Specify appropriate power supply and cord when ordering

Media Types & Handling

  • Maximum Label Width: 4.30"
  • Maximum Label Length: 24"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 4"

Memory

  • Standard Memory: 2 MB
  • Memory Technology: DRAM
  • Flash Memory: 1 MB

Warranty

  • Limited Warranty: 1 Year

The Datamax-O'Neil J12-00-1J000U00 is also known as DMX-E4203UAR or J12001J000U00 .
