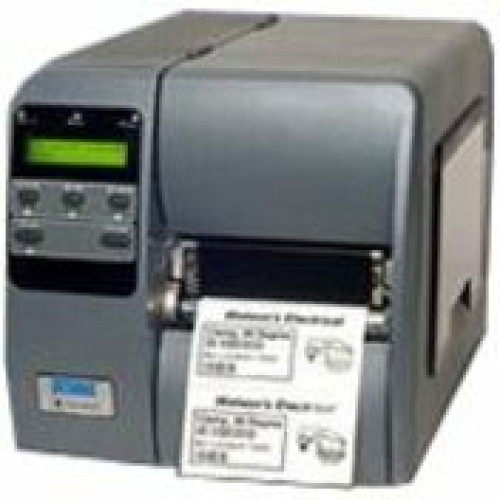

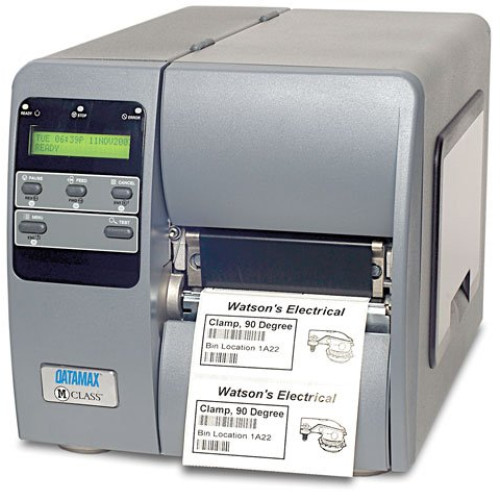

K22-00-18400001 - Datamax-O'Neil M4208 Bar code Printer

The M4208 is designed to address emerging markets for thermal printers, including healthcare, light industrial, retail and shipping applications. With a truly modular design, the M4208 offer versatility that is unparalleled in the thermal printing industry

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
K22-00-18400001 M4208, Thermal transfer, 203 dpi, 4 inch Print width, 8 ips Print speed, Serial / Parallel / USB Interface, 8MB DRAM, 2MB Flash, Metal Cover and Internal Rewind

K22-00-18400001 Details

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.25"
  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Sensor:
    • Reflective
    • See Through
  • Printer Language: DPL
  • Input Voltage Range:
    • 90 to 132 V AC
    • 180 to 264 V AC
  • RAM Memory: 8MB
  • Flash Memory: 2MB

General Information

Physical Characteristics

  • Dimensions:
    • 10.3" (261.62mm) x 9.8" (248.92mm) x 18.06" (459mm)
    • 10.3" (261.62mm) x 9.8" (248.92mm) x x 18.06" (459mm)
  • Weight: 27 lb (12.25 kg)

Included Features

  • Included Features: Rewinder

Agency Approvals

  • Agency Approvals:
    • UL
    • Canadian Standard
    • European Standard
    • FCC Class A
    • CE Mark

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"

Environmental Conditions

  • Temperature: 40°F (4°C) to 95°F (35°C) Operating

The Datamax-O'Neil K22-00-18400001 is also known as DMX-M4208R or K220018400001 .
