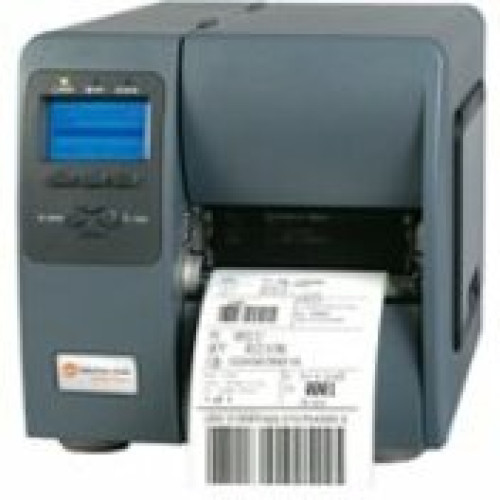

KA3-00-48001000 - Datamax-O'Neil M4308 Bar code Printer

The Datamax-O-Neil M4308 offers users a durable, technologically advanced thermal printer featuring a 300 dpi resolution and an 8 ips printing speed with the design principles that have proven successful in other Datamax-O-Neil printers, in a smaller footprint for use in emerging market applications. The M4308 is the most feature-rich printer available to address the desktop/light industrial marketplace with the performance and value required in these applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
KA3-00-48001000 Datamax-ONeil M-4308 Mark II Printer, M-4308 300 DPI TT PLZ FIXED MEDIA HANGER
Ships Free in 3-5 Days
$984.12
Retail $1593
Save 38%

KA3-00-48001000 Details

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Mirror Printing
    • Rotate Printing
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Standard 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • GS1 DataBar
    • HIBCC
    • EAN/JAN-13
    • EAN/JAN-8

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4308
  • Product Name: M-Class Mark II M-4308 Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"
  • Form Factor: Desktop
  • Weight (Approximate): 27 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Perforated Label
    • Ticket Stock
    • Black Mark
    • Continuous Form
    • Tag Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLI
    • PLZ
    • DPL
    • ZPL

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Other

  • Country of Origin: United States
  • Platform Supported: PC

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Part # Description Availability Price Order
NSC-OSMC-NEW-24 Datamax-O'Neil Service Plan, Minimize downtime and extend the life of your equipment with an On-Site Service Plan for new printers. When trouble occurs, a technician will arrive on-site in 48 hours with repair parts in-hand.
Ships Free in 3-5 Days
$442.65
Retail $557
Save 20%

The Datamax-O'Neil KA3-00-48001000 is also known as DMX-M4308TTPLZ or KA30048001000 .
