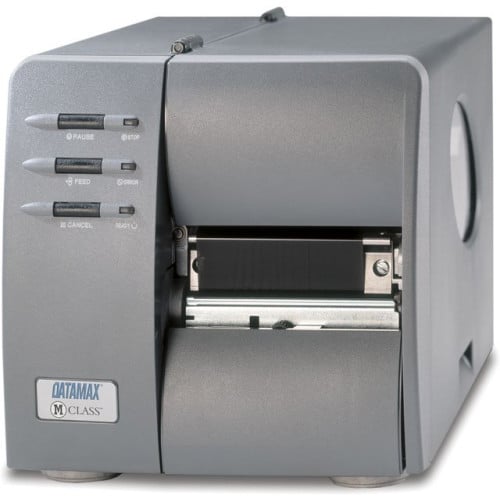

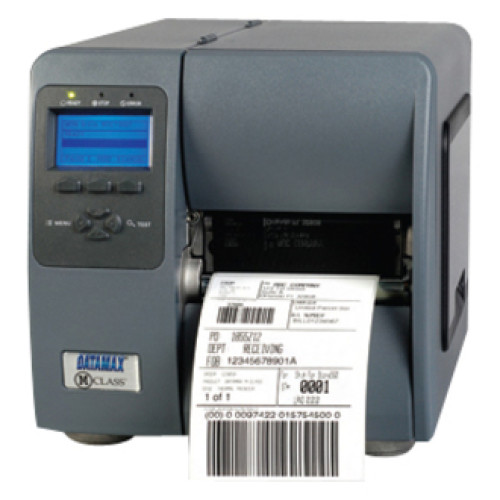

KD2-00-08000Y07 - Datamax-O'Neil M4206 Bar code Printer

The M4206 is the newest addition to the Class Family of Datamax-O-Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O-Neil I-Class printers. The M4206 was designed to exceed the expectations of the most demanding users. The M4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal Transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's bar coding and labeling requirements. The M-Class printer is intended to address the needs of new users of bar coding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
KD2-00-08000Y07 M4206, II Direct thermal Printer (203 dpi, 4 inch Print width, 6 ips Print speed, LAN and 8MB) Ships Free Today $790.88
Retail $1311
Save 39%

KD2-00-08000Y07 Details

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Tear Bar
    • LCD Display
    • Cutter
    • Peel Facility
    • Rewinder
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4206
  • Product Name: M-Class Mark II M-4206 Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Die-cut Label
    • Roll Fed
    • Continuous Label
    • Fanfold
    • Perforated Label
    • Tag Stock
    • Ticket Stock
  • Media Size: Custom Size
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 7.99"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Package Contents:
    • M-Class Mark II M-4206 Label Printer
    • Power Cord
    • CD-ROM
    • Documentation
    • M-Class Mark II M-4206 Label Printer
    • Power Cord
    • CD-ROM
    • Documentation

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Cutter

  • Cutting Method: Automatic

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: DPL
Part # Description Availability Price Order
301978 Datamax-O'Neil Label, 4" x 5" Direct thermal paper label. 1,200 labels/roll, 4 roll case.
Ships in 3-5 Days
$181.89
301970 Datamax-O'Neil Label, 4" x 6" Direct thermal paper label. 1000 labels/roll, 4 roll case. Also available as a roll (Part# 301970-R). Ships Today $111.62
301969-R-Compatible AirTrack Label, 3" x 2" Direct thermal paper label. 3000 labels/roll, single roll. Also available as a case (Part# 301969-COMPATIBLE).
Ships in 7+ Days
$43.46
301969-R Datamax-O'Neil Label, 3" x 2" Direct thermal paper label. 2009 labels/roll, single roll. Also available as a case (Part# 301969). Ships Today $29.95
301969 Datamax-O'Neil Label, 3" x 2" Direct thermal paper label. 2009 labels/roll, 8 roll case. Also available as a roll (Part# 301969-R). Ships Today $217.79
NSC-OSMC-NEW-24 Datamax-O'Neil Service Plan, Minimize downtime and extend the life of your equipment with an On-Site Service Plan for new printers. When trouble occurs, a technician will arrive on-site in 48 hours with repair parts in-hand.
Ships Free in 3-5 Days
$442.65
Retail $557
Save 20%

The Datamax-O'Neil KD2-00-08000Y07 is also known as DMX-M42062DLAN8 or KD20008000Y07 .
