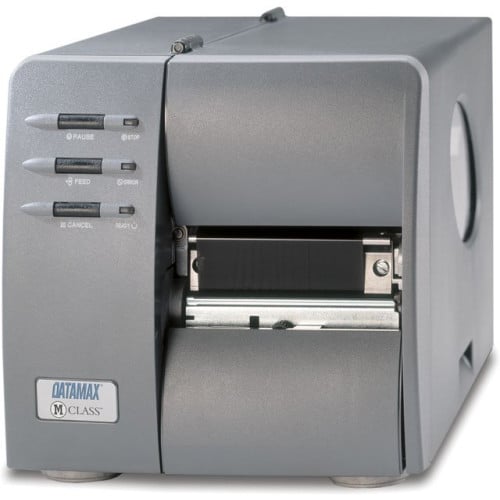

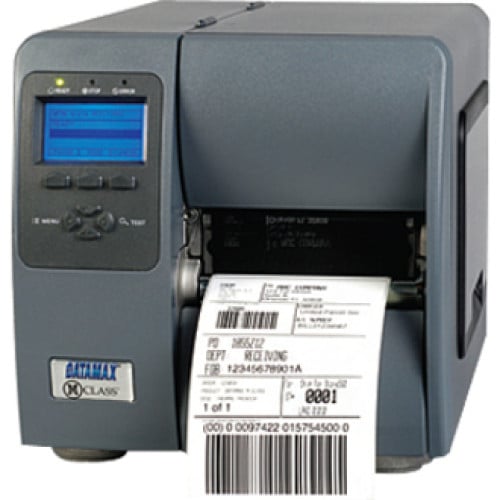

KD2-00-46000007 - Datamax-O'Neil M4206 Bar code Printer

The M4206 is the newest addition to the Class Family of Datamax-O-Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O-Neil I-Class printers. The M4206 was designed to exceed the expectations of the most demanding users. The M4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal Transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's bar coding and labeling requirements. The M-Class printer is intended to address the needs of new users of bar coding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
KD2-00-46000007 M4206, Thermal transfer Printer (203 dpi, 4 inch Print width, 6 ips Print speed, 8MB Flash and Euro/Brit Plug)
Ships Free in 3-5 Days
$694.28
Retail $1170
Save 40%

KD2-00-46000007 Details

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Clear Media Side Door
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4206 Mark II
  • Product Name: M-Class M-4206 Mark II Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"
  • Form Factor: Desktop
  • Weight (Approximate): 27 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLI
    • PLZ

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Power Description

  • Power Source: AC Supply
Part # Description Availability Price Order
423076 Datamax-O'Neil Label, 3" x 1" Thermal transfer polyester label. Not perforated. 5300 labels/roll, single roll.
Ships in 3-5 Days
$89.33
420970 Datamax-O'Neil Duratran II, 4" x 6" Thermal transfer paper label. 1,000 labels/roll, 4 roll case. Also available as a roll (Part# 420970-R). Ships Today $60.48
420968 Datamax-O'Neil Duratran II, 4" x 4" Thermal transfer paper label. 1,500 labels/roll, 4 roll case. Also available as a roll (Part# 420968-R). Ships Today $77.89
226116-R Datamax-O'Neil Ribbons, 4 inch x 1182 ft, Black, Max Wax. Single roll. Also available as a case (Part# 226116).
Ships in 3-5 Days
$23.84
221719 Datamax-O'Neil SDR Resin, 4.25" x 1182' Black Resin Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with polyester labels. Also available as a single roll (Part# 221719-R).
Ships in 3-5 Days
$1,186.24
NSC-OSMC-NEW-24 Datamax-O'Neil Service Plan, Minimize downtime and extend the life of your equipment with an On-Site Service Plan for new printers. When trouble occurs, a technician will arrive on-site in 48 hours with repair parts in-hand.
Ships Free in 3-5 Days
$442.65
Retail $557
Save 20%

The Datamax-O'Neil KD2-00-46000007 is also known as DMX-M42068TEURO or KD20046000007 .
