Photo of Datamax-O'Neil KD2-00-48000000
Watch Product Video
View larger image Datamax-O'Neil logo

Datamax-O'Neil M4206

II Thermal transfer, 4" width, Serial, Parallel & USB interfaces, real-time clock (RTC)

$854.41

Free Shipping

Ships Today

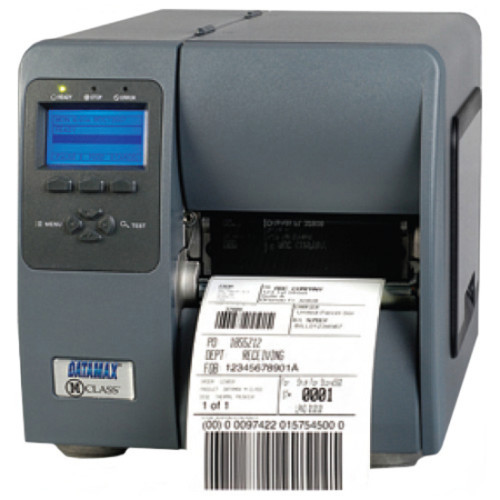

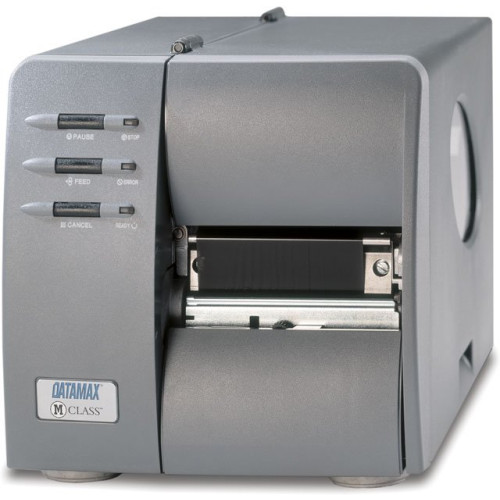

Datamax-O'Neil M4206 Printer

The M4206 is the newest addition to the Family of Datamax-O-Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O-Neil I-Class printers. The M4206 was designed to exceed the expectations of the most demanding users. The M4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's bar coding and labeling requirements. The M-Class printer is intended to address the needs of new users of bar coding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.

Full specifications (PDF)

Manufacturer part number: KD2-00-48000000

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Tear-off
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS
    • Macro PDF

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4206
  • Product Name: M-Class Mark II M-4206 Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Continuous Label
    • Die-cut Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor: Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Other

  • Platform Supported: PC

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: DPL
