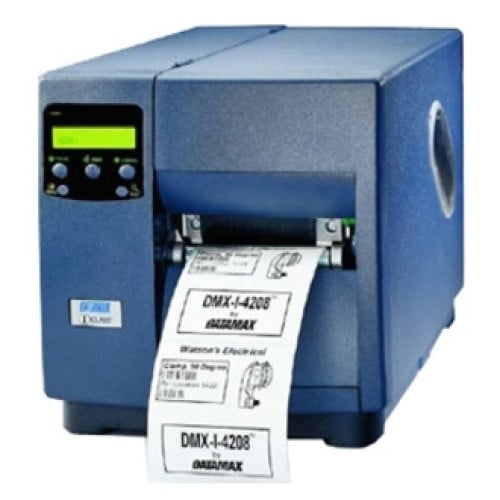

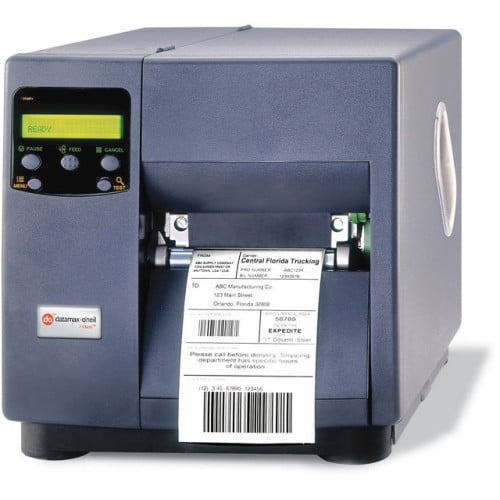

R44-00-18400007 - Datamax-O'Neil I4406 Bar code Printer

The I4406 Printer from Datamax-O-Neil is perfect for applications that demand printing very small labels high-resolution graphics or two-dimensional bar codes. With a 406 dpi (16 dots-mm) printhead and the ability to accurately maintain print registration the I4406 produces small labels for applications such as tracking small parts with high resolution bar code labels printing high quality graphics for identifying wiring harnesses cosmetic labels or adding an intricate Datamatrix Aztec or PDF-417 bar code label to a package. When it comes to reliability ease of use maintenance and high performance there is just one choice: the I4406. It's the industry's answer to your high performance high-resolution printing needs.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
R44-00-18400007 I4406, Thermal transfer Printer (400 dpi, 4.1 inch Print width, 6 ips Print speed, Serial and Parallel Interfaces, Internal Rewinder and Media Hub)

R44-00-18400007 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 406 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.1"
  • Maximum Label Width: 4.65"
  • Media Sensor:
    • Reflective
    • See Through
  • Printer Language: DPL
  • Input Voltage: 110 V AC - Auto-switching
  • Input Voltage Range: 90 to 132 V AC
  • RAM Memory: 16MB
  • Flash Memory: 2MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 12.7" (322.58mm) x 12.62" (320.55mm) x 18.6" (472mm)
    • 12.7" (322.58mm) x 12.62" (320.55mm) x x 18.6" (472mm)
  • Weight: 20.5 kg (45.19 lb)

Included Features

  • Included Features:
    • Media Hub
    • Internal Rewinder

Agency Approvals

  • Agency Approvals:
    • UL
    • Canadian
    • European
    • CE
    • FCC Class A

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"

Environmental Conditions

  • Temperature: 32°F (0°C) to 100°F (38°C) Operating

The Datamax-O'Neil R44-00-18400007 is also known as DMX-I4406R or R440018400007 .
