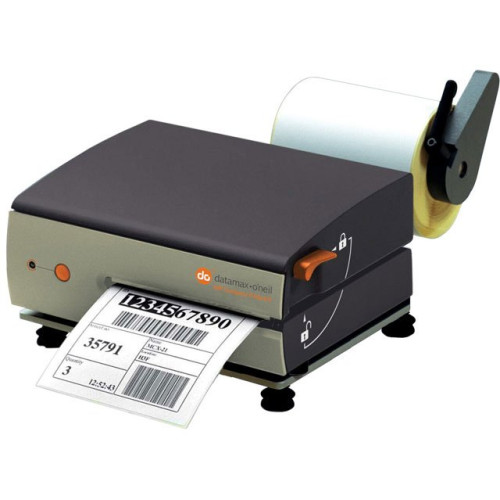

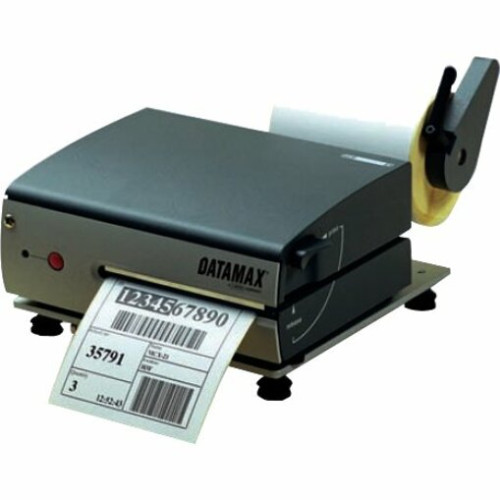

XA1-00-08001000 - Datamax-O'Neil MP Compact 4 Mark II Bar code Printer

The Datamax-O-Neil MP Compact 4 Mark II shares the same small footprint size of most desktop-sized entry level printers and the industrial grade ruggedness of table top-sized mid-range printers. The MP Compact 4 Mark II the first to truly combine rugged reliability in a small footprint. The MP Compact 4 Mark II has an incredibly small footprint which allows it to be used in applications where space is limited. The compact size takes up less than half the space of a traditional desktop label printer but with the same duty cycle and strength. The MP Compact 4 Mark II printer is constructed on a solid cast metal frame and protected with metal die cast covers. Unlike other small printers, the MP Compact 4 Mark II industrial printer is built to withstand the rigors of a warehouse or high volume printing application.

We respond to every email
Part # Description Availability Price Order
XA1-00-08001000 MP Compact4 Mark II, PRINTER, megapixel COMPACT4, DIRECT THERMAL, SERIAL/PARALLEL/USB, Real-time clock, 4MB FLASH/8MB DRAM, 200 dpi PRINTER, 5 ips, PLZ

XA1-00-08001000 Details

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 200 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • QR Code
    • PDF-417
    • Data Matrix
    • Maxi Code
    • EAN-13

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: MP
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: Compact4
  • Product Name: MP Compact4 Mark II Label Printer
  • Product Line: Compact

Physical Characteristics

  • Height: 4.1"
  • Width: 9.1"
  • Depth: 10.2"
  • Form Factor: Desktop
  • Weight (Approximate): 7.70 lb


  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Fanfold
    • Tag
    • Ticket
    • Gap
    • Notch
    • Black Mark
  • Media Thickness: 7.10 mil
  • Media Sensor: Transmissive Media Sensor
  • Maximum Roll Diameter: 5.90"

Fonts & Emulation

  • Language Emulation:
    • DPL
    • PLB
    • PLI
    • PLZ

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply


  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet


  • Platform Supported: PC


  • Limited Warranty: 1 Year

The Datamax-O'Neil XA1-00-08001000 is also known as XA1-00-08001000 or XA10008001000 .
