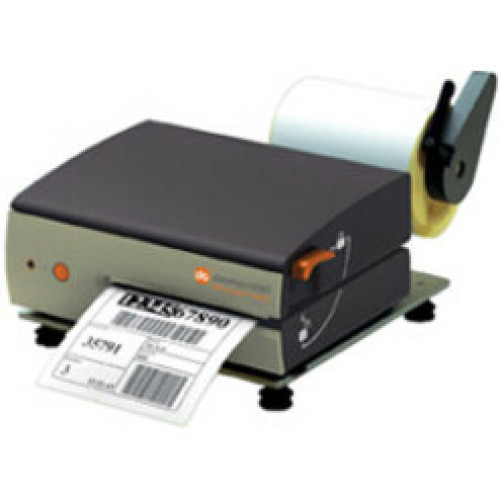

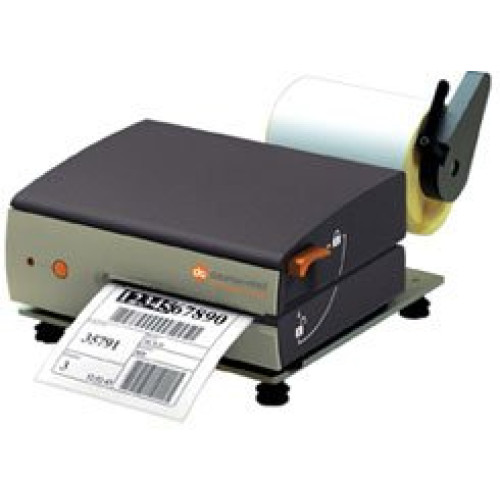

XD3-00-07001U00 - Datamax-O'Neil MP Compact 4 Mobile Mark II Bar code Printer

The Datamax-O-Neil MP Compact 4 Mobile Mark II printer features a small footprint, industrial grade ruggedness, and high mobility which make it the perfect printer for lift truck and mobile cart printing solutions. The MP Compact 4 Mobile Mark II is constructed on a solid cast metal frame and protected with metal die cast covers. Unlike other small printers, the MP Compact 4 Mobile Mark II industrial printers are built to withstand the rigors of a warehouse or high volume printing application. Loading paper is easy too: The levers are large and easy to manage - so easy that the operation can be done single handed while wearing a leather or latex glove. The paper path is slotted through the side of the printer with no covers to open or clamshells to unlock. A variety of interface options is available.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
XD3-00-07001U00 MP Compact4 Mobile Mark II, PRINTER, 200 dpi, WIRELESS, DC POWER, DPL WITH PLZ EMULATION, USB CABLE
Ships Free in 3-5 Days
Call for Details
Information:   |  Download Datamax-O'Neil MP Compact 4 Mobile Mark II driver  |  Specifications  |  Datamax-O'Neil's MP Compact 4 Mobile Mark II page  |
Accessories:   |  No accessories available  |  Bar code Software  |
Supplies:   |  Datamax-O'Neil MP Compact 4 Mobile Mark II Label  |

XD3-00-07001U00 Details

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 200 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Mirror Printing
  • Barcode Symbology Supported:
    • QR Code
    • PDF-417
    • Data Matrix
    • Maxi Code
    • EAN-13

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: MP Compact4 Mobile
  • Product Name: MP Compact4 Mark II Mobile Label Printer

Physical Characteristics

  • Height: 4.9"
  • Width: 9.1"
  • Depth: 10.2"
  • Form Factor: Portable
  • Weight (Approximate): 9.90 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Die-cut Label
    • Continuous Label
    • Fanfold
    • Ticket
    • Tag
    • Gap
    • Notch
    • Black Mark
  • Media Thickness: 7.10 mil
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 4.51"
  • Maximum Roll Diameter: 4"

Fonts & Emulation

  • Language Emulation:
    • PLI
    • DPL
    • PLZ
    • PLB

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Other

  • Platform Supported: PC

Power Description

  • Input Voltage: 48 V DC

The Datamax-O'Neil XD3-00-07001U00 is also known as XD3-00-07001U00 or XD30007001U00 .
