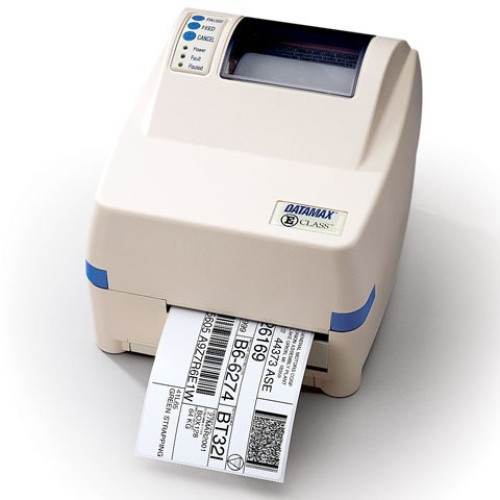

J13-00-1J000U00 - Datamax E4304 Bar code Printer

The E4304 is a small compact Thermal Printer designed for a variety of on-demand printing applications requiring more definition than 203 dpi. In addition to a 4.1 print width serial and parallel communication interfaces the E4304 includes a 300 dpi printhead 4 inches per second (ips) print speed and casework to accommodate a 5 outside diameter (OD) roll of labels. The E4304 can print a variety of labels ranging from small office shipping labels to postal and transportation labels. Moreover with 300 dpi the E4304 can also print complex 2D bar code symbologies including PDF417 Datamatrix MaxiCode and QRCode. Developed in response to customer requirements the E4304 includes all the features needed to make it a perfect choice for your high resolution low to medium volume desktop labeling needs.

We respond to every email
Part # Description Availability Price Order
J13-00-1J000U00 E4304, Thermal transfer, 300 dpi, 4 ips, 4.1" print width, parallel, serial, & USB interfaces, 2MB DRAM, 1MB flash. Includes US power cord. Order cables separately. See accessories.
Information:   |  Download Datamax E4304 driver  |  Specifications  |  Datamax's E4304 page  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Datamax E4304 service contract  |
Supplies:   |  Datamax E4304 Printer  |  Datamax E4304 Ribbon  |  Datamax Print head  |

J13-00-1J000U00 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 4 lps
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
  • Media Sensor:
    • See Through
    • Reflective
  • Printer Language: DPL
  • Input Voltage Range: 110 to 220 V AC
  • RAM Memory: 2MB
  • Flash Memory: 1MB

General Information

Physical Characteristics

  • Dimensions:
    • 7.05" (179.07mm) x 8.77" (222.76mm) x 10" (254mm)
    • 7.05" (179.07mm) x 8.77" (222.76mm) x x 10" (254mm)
  • Weight: 5.2 lb (2.36 kg) - Printer

Environmental Conditions

  • Temperature: 4°C (39°F) to 35°C (95°F) Operating

The Datamax J13-00-1J000U00 is also known as Datamax-Pioneer DMX-E4304U or J13001J000U00 .
