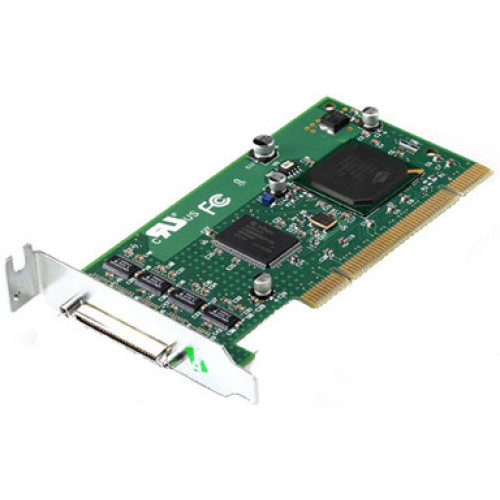

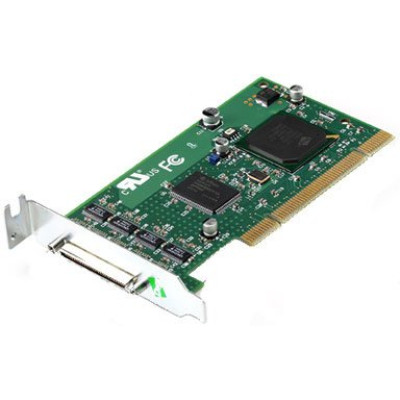

Digi AccelePort Xp

The Digi AccelePort Xp makes device connectivity easy with excellent throughput, an unrivaled feature set, high reliability, and ease of installation. It features Application Specific Integrated Circuit (ASIC), an 80 Mhz RISC processor and a bus mastering design to reduce CPU utilization. External options connect to the adapter using a SCSI HD-68 connector, reducing cable clutter and increasing connection reliability. It is capable of supporting data speeds of 921.6 Kbps bi-directionally on all ports. Its accessories include PortAssist Manager software, DB-9, DB-25 and RJ-45 connector options that include on-board connectors, fan-out cables, external I/O boxes and rack-mountable chassis.
AccelePort Xp Options
Part # DescriptionAvailabilityPriceOrder
77000845 AccelePort Xp, Universal PCI (3.3V and 5V, 4-Port Low Profile, RS-232) Check Availability Call for Details
77000838 AccelePort Xp, Universal PCI (3.3V and 5V, 4-Port RS-232 RJ45 on Board) Check Availability Call for Details
77000833 AccelePort Xp, Universal (30-Pack, 8-Port) Check Availability Call for Details
77000708 AccelePort Xp, Universal PCI (3.3V and 5V, 16-Port RS-232) Check Availability Call for Details
77000707 AccelePort Xp, Universal PCI card (3.3V & 5V), 8 RS-232 serial ports, Single HD-68 female connector, DB-25, RJ45, DB-9 connector box with HD-68M 6-foot connector cable, 80 MHz RISC processor, 921.6 Kbps throughput, 15 kV surge protection on all signals Check Availability Call for Details
77000706 AccelePort Xp, Universal PCI card (3.3V & 5V), 4 RS-232 serial ports, Single HD-68 female connector, DB-25, RJ45, DB-9 connector box with HD-68M 6-foot connector cable, 80 MHz RISC processor, 921.6 Kbps throughput, 15 kV surge protection on all signals Check Availability Call for Details
76000587 AccelePort Xp, Accessory, 16-Port 2U 19" Rack, DB-25M Connectors, For use with two 8-port AccelePort Xp cards Check Availability Call for Details
70001550 AccelePort Xp, Universal PCI card (3.3V & 5V), 16 RS-232 serial ports, Dual HD-68 female connectors, DB-25, RJ45, DB-9 connector box with HD-68M 6-foot connector cable, DB-25 and DB-9 4-foot fan out cables - male or female, DB-25 or RJ45 desktop or 19" rack mountable enclosures with 2 HD-68 connector cables, 80 MHz RISC processor, 921.6 Kbps throughput, 15 kV surge protection on all signals Check Availability Call for Details
70001549 AccelePort Xp, Universal PCI (3.3V and 5V, 4-Port RS-232 with DB-25 Male Cable) Check Availability Call for Details
70001548 AccelePort Xp, Universal PCI card (3.3V & 5V), 8 RS-232 serial ports, Single HD-68 female connector, DB-25, RJ45, DB-9 connector box with HD-68M 6-foot connector cable, DB-25 and DB-9 4-foot fan out cables - male or female, 80 MHz RISC processor, 921.6 Kbps throughput, 15 kV surge protection on all signals Check Availability Call for Details
