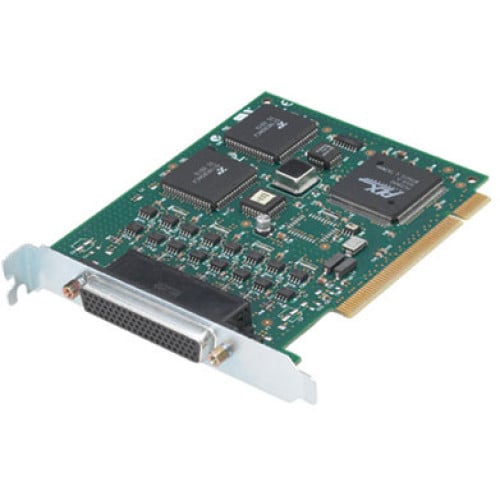

Photo of Digi ClassicBoard
Digi logo

Digi ClassicBoard

The Digi ClassicBoard has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The Digi ClassicBoard offers 4 or 8-Port RS-232 and RS-422 models with a choice of DB-25, DB-9 or RJ-45 connectors. Each model is available with 16C654 UARTs with a 64 byte FIFO, delivering optimum throughput up to 460.8 Kbps with built-in surge protection on every signal. The absence of DIP switches or jumpers to set, makes installation a breeze. ClassicBoard can be used in applications using sensors, switches, measurement devices, factory automation, EDI, industrial control processing and data collection.
ClassicBoard Options
Part # DescriptionAvailabilityPriceOrder
77000771 ClassicBoard, PCI (5V), Powered 5V Serial Ports, 4 RS-232 serial ports, DB-9, DB-25 or RJ45 connectors, Supports speeds up to 460.8 Kbps, 32-bit PCI slot, Full-duplex operation, Multi-strike surge suppression on every signal, 16C654 UARTs providing automatic flow control and 64-byte FIFO, Supports auto configuration of all PCI interrupts Check Availability Call for Details
77000770 ClassicBoard, PCI (5V), Powered 5V Serial Ports, 8 RS-232 serial ports, DB-9, DB-25 or RJ45 connectors, Supports speeds up to 460.8 Kbps, 32-bit PCI slot, Full-duplex operation, Multi-strike surge suppression on every signal, 16C654 UARTs providing automatic flow control and 64-byte FIFO, Supports auto configuration of all PCI interrupts Check Availability Call for Details
77000578 ClassicBoard, PCI (5V), 8 RS-232 serial ports, DB-9, DB-25 or RJ45 connectors, Supports speeds up to 460.8 Kbps, 32-bit PCI slot, Full-duplex operation, Multi-strike surge suppression on every signal, 16C654 UARTs providing automatic flow control and 64-byte FIFO, Supports auto configuration of all PCI interrupts Check Availability Call for Details
77000576 ClassicBoard, PCI (5V), 4 RS-232 serial ports, DB-9, DB-25 or RJ45 connectors, Supports speeds up to 460.8 Kbps, 32-bit PCI slot, Full-duplex operation, Multi-strike surge suppression on every signal, 16C654 UARTs providing automatic flow control and 64-byte FIFO, Supports auto configuration of all PCI interrupts Check Availability Call for Details
77000434 ClassicBoard, ISA, 8 RS-232 serial ports, DB-9, DB-25 or RJ45 connectors, Supports speeds up to 460.8 Kbps, 32-bit PCI slot, Full-duplex operation, Multi-strike surge suppression on every signal, 16C654 UARTs providing automatic flow control and 64-byte FIFO, Supports auto configuration of all PCI interrupts Check Availability Call for Details
