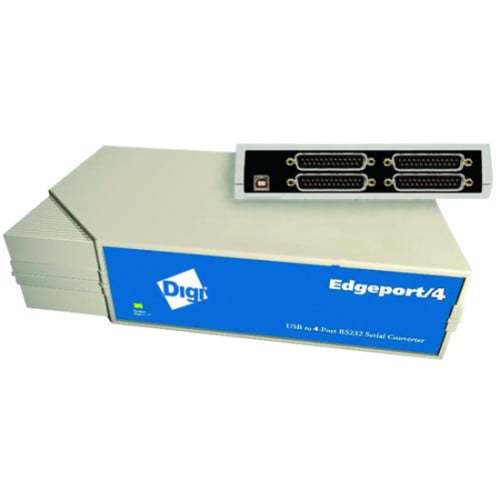

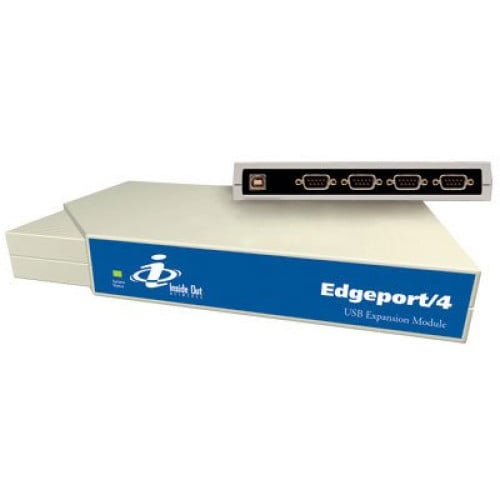

Digi Edgeport USB-to-Serial Converter Data Networking
Part #: 301-1000-04 | SKU: DIG18525

Digi's Edgeport USB-to-Serial Converter offers instant I/O expansion for peripheral device connectivity. It is available in multiple configurations for maximum flexibility and scalability. Accessories include the Edgeport/E USB Ethernet adapter, rack mount kits, PCI to USB 1.1 card and USB cables. Unmatched operating system support includes Windows NT, Windows 2000, Windows CE, Windows XP and more. It is an ideal solution for point-of-sale, mobile computing, industrial automation, medical and more.

Digi Edgeport USB-to-Serial Converter Data Networking

Part Details: USB-to-Serial converter - 4-serial port - DB-9 connector - Baud rate: up to 230 kbps - USB-IF certified - Tri-State - Device status and COM port LED display - Rack-mountable - Hot-swappable

Additional Information

Manufacturer Digi
Model Name Edgeport USB-to-Serial Converter

General Information

  • Product Type: Multiport Serial Adapter
  • Brand Name: Digi
  • Manufacturer: Digi International
  • Product Name: Edgeport/4 Multiport Serial Adapter
  • Product Line: Edgeport

Technical Information

  • Host Interface: USB
  • Baud Rate: 230 Kbps (Maximum)
  • IRQ: No additional IRQ or memory address requirements
  • Protocols: RS-232
  • UART Type: 64-byte FIFOs per port per direction

Physical Characteristics

  • Height: 4.4"
  • Width: 7.2"
  • Form Factor: External Hot-swappable
  • Dimensions: 1" Height x 7.2" Width x 4.4" Depth
  • Thickness: 1"
  • Weight (Approximate): 10 oz

Interfaces/Ports

  • Ports: 1 x 4-pin Type A - USB
  • Ports Expandability: 4 x 9-pin DB-9 - Serial

Other

  • Certifications & Standards:
    • FCC Part 15 Class B
    • CE
    • EN55022
    • Class B
    • 50082-1
    • 55024
    • 60950
    • UL 1950
    • CSA No. 950
  • Compatibility: Plug-and-play compliant
  • System Requirements:
    • Windows 95 (OSR2), 98, SE, 2000, Me, CE, XP, XP Embedded, NT 4.0, NT Embedded
    • Linux
    • Macintosh
    • 1 USB type A (downstream) port
  • Additional Information:
    • Tri-state LED displays device status and COM port activity
    • Automatic port reacquisition
    • Full hardware and software flow control<br>
    • POWER REQUIREMENTS:<br> - No external power supply (USB-powered)

Warranty

  • Limited Warranty: 5 Year
  • Additional Warranty Information: Money back guarantee - 30 days

Environmental Conditions

  • Humidity: 0 to 95% Non-condensing Relative Humidity Operating
  • Temperature: 32°F (0°C) to 131°F (55°C) Operating
