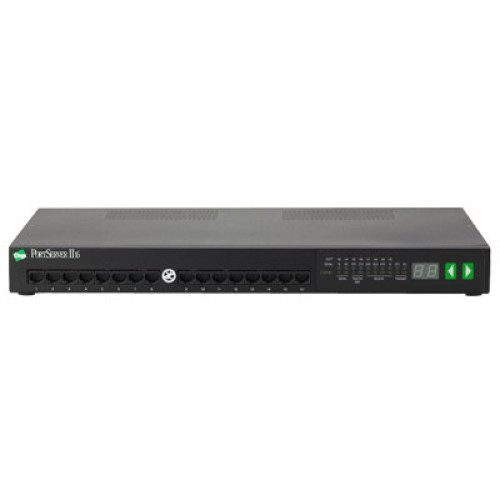

Digi PortServer II Data Networking
Part #: 70000901 | SKU: DIG18565

PortServer II from Digi features 16 individual EIA-232 serial ports, expandable to 64 serial ports by attaching PORTS modules, which can be configured for asynchronous or synchronous WAN transmissions with 56Kbps. It also features LAN-to-LAN routing, ideal for distributed workgroups or retail point-of-sale applications. Other notable characteristics include Digi Port Authority-Remote for monitoring, support for Rlogin, Telnet and Reverse Telnet on each port, support for SNMP MIB-II and RealPort drivers for Windows and UNIX to provide local COM port and TTY functionality.

Digi PortServer II Data Networking

Part Details: PortServer II, 16-Port Terminal Server, 10 Mbps Ethernet LAN, SNMP management, 256K EPROM non-volatile memory, LED line status indicators, 115.2 Kbps throughput

Additional Information

Manufacturer Digi
Model Name PortServer II

General Information

  • Product Type: Terminal Server
  • Brand Name: Digi
  • Manufacturer: Digi International
  • Product Name: PortServer II 16 Terminal Server
  • Product Line: PortServer

Physical Characteristics

  • Height: 2.2"
  • Width: 12"
  • Depth: 8.8"
  • Weight (Approximate): 2.20 lb
  • Color:
    • Black
    • Green

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 17
  • Network (RJ-45): Yes

Other

  • Certifications & Standards:
    • FCC Part 15, Class B
    • EN55022, Class B
    • AS3548
    • EN50082-2
    • EN 60950
    • UL 1950
    • CSA 22.2 No 950
  • Additional Information:
    • 115.2 Kbps throughput on asynchronous ports
    • Digi RealPort software provides local serial port functionality
    • Connectivity Technology: Cable
    • Ports may be shared between multiple hosts running different operating systems
    • Cost-effective Frame Relay can connect remote PortServer II terminal servers to a central site
    • 56 Kbps on synchronous WAN ports
    • LAN-to-LAN routing with RIP
    • Power Supply Form Factor: External
    • Password access, PAP, CHAP and RADIUS security
    • External logging and tracking
    • Automatic IP configuration through RARP and BootP
    • Solaris Ready<br><br> Digi Port Authority Remote:
    • Remote monitoring application
    • Status ports
    • Status Ethernet<br><br> Realport Software:
    • Local emulation of UNIX TTY and Microsoft COM ports
    • Transparent printing under UNIX
    • Single TCP/IP connection per 16 port block reduces Ethernet traffic and minimizes host CPU utilization

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Processor & Chipset

  • Processor Manufacturer: IDT
  • Processor Speed: 20 MHz

Warranty

  • Limited Warranty: 5 Year

Media & Performance

  • Media Type Supported: Coaxial
