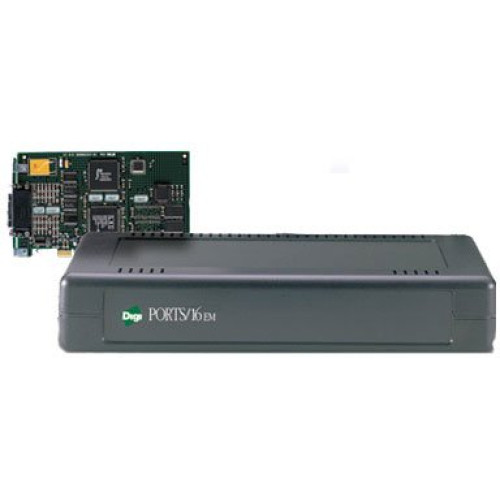

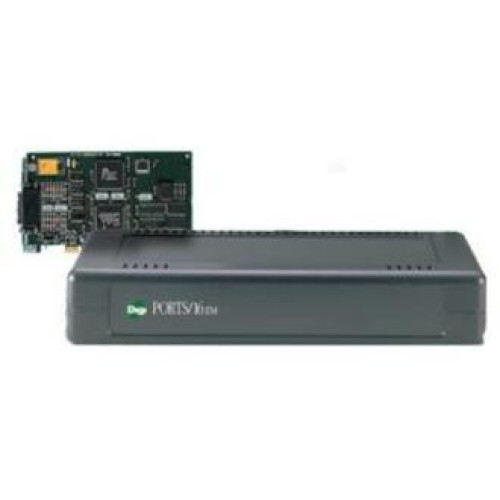

Digi AccelePort Xem Data Networking
Part #: 70001208 | SKU: DIG18568

Digi's AccelePort Xem offers high-performance serial computing, ideal for connecting modems, terminals, printers, instruments and other serial devices. This flexible system enables you to connect up to 64 RS-232 or RS-422 serial ports to a Universal PCI (3.3V & 5V) or ISA-based computer. It is especially well suited for applications that are expected to start small and grow over time to as many as 64 ports. The device offers an expandable, modular and intelligent serial communication solution designed specifically for small to mid-size multi-user installations.

Digi AccelePort Xem Data Networking

Part Details: AccelePort Xem, Universal PCI Card (3.3V/5V), 16 RS-232 asynchronous serial ports, DB-25 male connector, Up to 115.2 Kbps throughput per port, On-board IDT 3081 RISC processor, Patented Front End Processor/Operating System

Additional Information

Manufacturer Digi
Model Name AccelePort Xem

Technical Information

  • Data Transfer Rate: Up to 115.20 Kbps
  • Host Interface: PCI
  • Control Signals:
    • CTS
    • RTS
    • DTR
    • DSR
    • DCD
  • Protocols: EIA-232

General Information

  • Product Type: Multiport Serial Adapter
  • Brand Name: Digi
  • Manufacturer: Digi International
  • Product Name: 8em-PCI DB-25 Multiport Serial Adapter

Physical Characteristics

  • Form Factor: Plug-in Card

Interfaces/Ports

  • Ports Expandability: 8 x 25-pin DB-25 - Serial

Other

  • Certifications & Standards:
    • FCC Part 15
    • Class A
    • ICES-003 Class A
    • EN55022
    • Class A
    • EN50082-2
    • UL 1950
    • CSA 22.2 No 950
    • EN60950
    • AS3548
  • Compatibility: SOFTWARE COMPATIBILITY:<br> - AIX<br> - Digital OpenVMS<br> - Digital UNIX<br> - HP-UX<br> - Linux<br> - Microsoft Windows 95 and 98, Windows NT *<br> - Novell NetWare*<br> - OS/2<br> - QNX<br> - SCO OpenServer*<br> - SCO UnixWare*<br> - Sun Solaris SPARC<br> - Sun Solaris x86<br> - UNIX SVR4<br><br> *Drivers ship with product on CD-ROM.
  • Additional Information:
    • High-speed dial-in/dial-out remote I/O connections for high-performance remote access systems<br>
    • AccelePort Xem Host Adapter:<br> - PCI host expansion slot<br> - On-board IDT 3051 RISC processor with its patented Front End Processor/Operating System (FEP/OS)<br> - Female HD44 connector to connect the first Digi PORTS Module via a 5-foot (1.5 m) cable<br>
    • Digi PORTS Modules:<br> - Jumper-free installation<br> - EBI technology uses HD44 female connectors on the PORTS Modules to daisy-chain additional ports via a 16-inch (40.6 cm) cable<br> - Auxiliary power supply is required when using two or more PORTS Modules<br> - Can also connect to other Digi EBI products including EPC/CON Concentrators, PortServer II, and MODEM/Xem<br>
    • Environmental requirements:<br> - Air movement: 30 CFM forced

Environmental Conditions

  • Altitude: 0 ft to 12000 ft
  • Humidity: 5 to 90% Non-condensing Relative Humidity Operating
  • Temperature: 50°F (10°C) to 131°F (55°C) Operating

Power Description

  • Input Current: 1.80 A
  • Input Voltage: 5 V DC 5%

Warranty

  • Limited Warranty: 5 Year
  • Additional Warranty Information: 30-day money-back guarantee

Processor & Chipset

  • Processor: 1 x IDT 3051 RISC On-board
