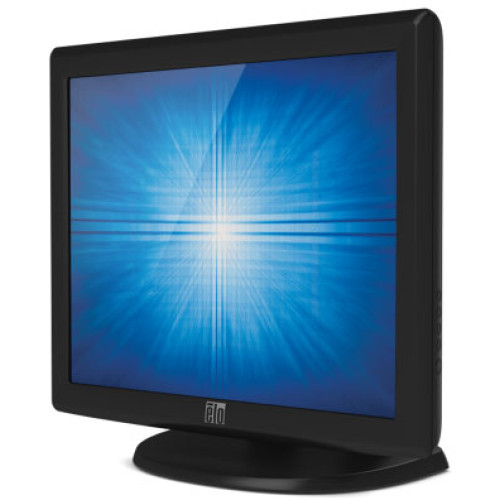

Elo 1715L Touch screen Monitor

The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo's quality and reliability into an integrated, affordable touchmonitor.

Features

• Entry-level monitor with Elo quality
• "Designed for touch" features such as a stable tilt base
• Long-lasting product cycle
• Available with IntelliTouch Surface Wave Technology or AccuTouch Five-Wire Resistive Technology
• Sealed touchscreen
• Dual serial/USB interface
• Removable base and VESA mounting option
• Mounting holes on base bottom for tabletop security
• Controls on the side rather than the front, plus lockout function for public use
• Digital on-screen display (OSD)
• Worldwide agency approvals

Specifications

Model	1715L
Series	1000
Availability	Worldwide
Case/bezel color	Dark gray
Display	Size: 17.0" diagonal Type: Active matrix TFT LCD Aspect ratio: 5 x 4
Useful screen area	Horizontal: 13.3" (338 mm) Vertical: 10.6" (270 mm)
Monitor dimensions	Width: 15.4" (391 mm) Height (inc. base): 14.4" (366 mm) Depth (inc. base): 8.0" (203 mm)
Optimal (native) resolution	1280 x 1024
Other supported resolutions	1280 x 1024 at 60 or 75 Hz 1280 x 960 at 60 Hz 1152 x 864 at 75 Hz 1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz 832 x 624 at 75 Hz (Mac) 800 x 600 at 56, 60, 72 or 75 Hz 720 x 400 at 70 Hz 720 x 350 at 70 Hz 640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
Colors	16.2 million with dithering
Brightness LCD panel	250 cd/m2 (typical)
Brightness LCD panel with touchscreen	AccuTouch: 205 cd/m2 (typical) IntelliTouch: 230 cd/m2 (typical)
Response time	25 msec (typical)
Viewing angle (typical, from center)	Horizontal (left/right): +/-70° or 140° total Vertical (up/down): 63°/60° or 123° total
Contrast ratio	450:1 (typical)
Input video format	RGB analog only
Input sync format	Separate horizontal and vertical sync, composite sync and sync-on-green
Input video signal connector	Mini D-Sub 15-Pin VGA type
Input frequency	Horizontal: 31.5-80 kHz Vertical: 56.3-75 Hz
Power supply	Type: Internal, with jack to accept power from optional external brick Monitor input voltage: 100-240 VAC, 50/60 Hz Optional input voltage: +12 VDC +/-5%
Power dissipation	50 W max.
Temperature	Operating: 0°C to 40°C Storage: -20°C to 60°C
Humidity	Operating: 20%-80% Storage: 10%-90% noncondensing
Weight (approx.)	Actual: 15.2 lb (6.9 kg) Shipping: 21.2 lb (9.6 kg)
Warranty	Backlight lamp life: typical 30,000 hours to half brightness MTBF: 50,000 hours demonstrated
Agency approvals	UL, cUL, FCC, CE, TUV-GS, VCCI, IC, C-Tick
On-screen display (OSD)	Digital OSD
User's controls	OSD buttons: menu, up, down, select, power OSD: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall, language (English, German, Spanish, Japanese, French) OSD disable/enable: power, OSD menu
Mounting options	Threaded-through mounting holes, under base Removable base, 100 mm VESA mount
