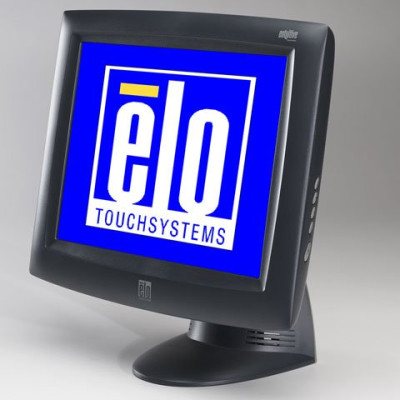

Elo 1525L Touch screen Monitor
This product has been discontinued. It is replaced by the Elo 1529L.
The 1525L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
| Information: | Specifications | Ask a question | |
| Accessories: | Accessories/Options | |
| Part # | Description | Availability | Price | Order |
|---|---|---|---|---|
| F74054-000 | Entuitive 1525L, 15" IntelliTouch (surface wave), USB, Anti-glare, 1529 Short base, Dark gray | Check Availability | Call for Details | |
| F36693-000 | Entuitive 1525L, 15" AccuTouch (resistive), USB, Anti-glare, Desktop, Short base, Dark gray | Check Availability | Call for Details | |
| F17099-000 | Entuitive 1525L, 15" CarrollTouch (infrared), with serial interface, black. | Check Availability | Call for Details | |
| E75784-000 | Entuitive 1525L, 15" AccuTouch (resistive), with serial interface, black. | Check Availability | Call for Details | |
| E74617-000 | Entuitive 1525L, 15" IntelliTouch (surface wave), with USB interface & keyboard emulation MSR, black. | Check Availability | Call for Details | |
| E70597-000 | Entuitive 1525L, 15" IntelliTouch (surface wave), with serial interface, black. | Check Availability | Call for Details | |
| D71579-000 |
This part is replaced by D30809-000. Entuitive 1525L, 15" AccuTouch (resistive), with USB interface & keyboard emulation MSR, black. |
Call for Details | ||
| D61906-000 | Entuitive 1525L, 15" Entuitive, LCD Touchcomputer, IntelliTouch, USB, Windows XP, MSR (KB), Color: Gray | Check Availability | Call for Details | |
| D58125-000 | Entuitive 1525L, 15" LCD All-in-One Desktop, IntelliTouch Touch, USB interface, Three-track Magnetic Stripe Reader (MSR), Microsoft Windows XP, Color: Dark gray | Check Availability | Call for Details | |
| A85238-000 |
This part is replaced by D85900-000. Entuitive 1525L, 15" IntelliTouch (surface wave), with serial interface & serial MSR, black. |
Call for Details | ||
| A85217-000 | Entuitive 1525L, 15" IntelliTouch (surface wave), with USB interface & HID MSR, black. | Check Availability | Call for Details | |
| A62620-000 | Entuitive 1525L, 15" LCD Desktop Touchmonitor, MSR, CarrollTouch Touch Technology, USB Touch Interface and Anti-glare Surface Treatment, Color: Dark gray | Check Availability | Call for Details | |
| A40174-000 | Entuitive 1525L, 15" AccuTouch (resistive), with serial interface & serial MSR, black. | Check Availability | Call for Details | |
| 947098-000 | Entuitive 1525L, 15" AccuTouch (resistive), with USB interface, black. | Check Availability | Call for Details | |
| 726256-000 | Entuitive 1525L, 15" IntelliTouch (surface wave), with USB interface, black. | Check Availability | Call for Details | |
| 139882-000 | Entuitive 1525L, 15" AccuTouch (resistive), with USB interface & HID MSR, black. | Check Availability | Call for Details | |
Elo 1525L Details
Features
- "Designed for touch" features such as a stable tilt base
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology, CarrollTouch Infrared Technology, IntelliTouch Surface Wave Technology, or Surface Capacitive.
- Serial or USB touch interface
- Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Internal power supply
- Long-lasting product cycle
- Worldwide agency approvals
Specifications
| Model | 1525L |
| Series | 3000 |
| Availability | Worldwide |
| Case/Bezel color | Dark gray |
| Display | Size:
15"
diagonal Type: Active matrix TFT LCD Aspect ratio: 4 x 3 |
| Useful screen area | Horizontal:
11.9" (304 mm) Vertical: 8.9" (228 mm) |
| Monitor dimensions | Width:
15.37" (390 mm) Height (inc. base): 15.40" (391 mm) Depth (inc. base): 8.2" (208 mm) |
| Optimal (native) resolution | 1024 x 768 at 60, 70 or 75 Hz |
| Other supported resolutions | 1024 x 768 at
65 Hz (Sun) 832 x 624 at 75 Hz (Mac) 800 x 600 at 56, 60, 72, and 75 Hz 720 x 400 at 70 Hz 720 x 350 at 70 Hz 640 x 480 at 60, 66 (Mac), 72 and 75 Hz |
| Colors | 16 million |
| Brightness LCD panel |
300 cd/m2 (typical) |
| Brightness LCD panel with touchscreen |
AccuTouch:
246 cd/m2 (typical) CarrollTouch: 276 cd/m2 (typical) IntelliTouch: 276 cd/m2 (typical) Surface capacitive: 237 cd/m2 (typical) |
| Response time | 25 msec (typical) |
| Viewing angle
(typical, from center) |
Horizontal (left/right):
+/-75° or 150° total Vertical (up/down): 75/50° or 125° total |
| Contrast ratio | 500:1 |
| Input video format | Analog (no proprietary video card needed) |
| Input video signal connector | Mini D-Sub 15-Pin VGA type |
| Input frequency |
Horizontal: 31.5 - 60 kHz Vertical: 56 - 75 Hz |
| Power supply | Type:
Internal power supply Input (line) voltage: 100 - 240 VAC, 50 - 60 Hz |
| Power dissipation | TBD |
| Temperature | Operating:
0°C to 40°C Storage: -30°C to 60°C |
| Humidity | Operating:
20% - 80% Storage: 5% - 95% noncondensing |
| Weight (approx.) |
Actual:
14.7
lb (6.67 kg) Shipping: 20.45 lb (9.28 kg) |
| Warranty | Monitor:
3 years Backlight lamp life: min 40,000 hours to half brightness |
| Agency approvals | UL/cUL, TUV-GS, CE, FCC/IC/VCCI/C-Tick Class B |
| Speakers | Two built-in, rear-facing 1W speakers in display head |
| On-screen display (OSD) | Digital OSD |
| User's controls | Side:
auto, enter, +/-, menu, power OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time, language (English, German, Spanish, Japanese, French) OSD disable/enable: power, volume, and/or OSD menu |
| Mounting options | 75mm
VESA
mount Removable base Wall-mountable when installed by qualified personnel Optional stability plate |
| Other features | Sealing |
The Elo 1525L
is also known as the
Elo Touch Solutions 1525L
.
|
|
|
|
|
|
|
|
|
