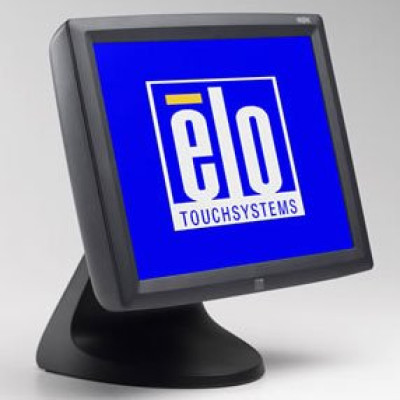

Photo of Elo 1529L
Elo logo

Elo 1529L Touch screen Monitor

The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR), biometric fingerprint reader, and a choice of either a 2 x 20 vacuum fluorescent rear-facing customer display (VFD) or the first consumer-touchable 12.1" rear-facing customer display. The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt base that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color. Also available is the 1529L TouchComputer, a silent, fanless integrated all-in-one touchcomputer within the footprint of a 15" LCD monitor.
Questions?
1-888-875-7170
We respond to every email
1529L Options
Part # DescriptionAvailabilityPriceOrder
F46991-000 Entuitive 1529L, 15" LCD, TouchMonitor, AccuTouch (resistive) Touch Technology, Dual Serial/USB Interface (no hub) See Replacement Call for Details
F14716-000 Entuitive 1529L, 15" LCD, TouchMonitor, AccuTouch (resistive) Touch Technology, dual Serial/USB Interface (no USB hub), Tall stand. Color: Gray See Replacement Call for Details
E926109 Entuitive 1529L, 15" IntelliTouch (surface wave) touch technology, Dual Serial/USB touch interface, Anti-glare surface treatment, Color: Gray See Replacement Call for Details
E733714 Entuitive 1529L, 15" IntelliTouch (surface wave) touch interface, USB touch interface, MSR keyboard emulation, Anti-glare surface treatment, Color: Gray See Replacement Call for Details
E659634 Entuitive 1529L, 15" AccuTouch (resistive) touch technology, USB touch interface, MSR keyboard emulation, with US power supply, Anti-glare surface treatment. Color: Gray See Replacement Call for Details
E641269 Entuitive 1529L, 15" LCD, TouchMonitor, IntelliTouch (surface wave) Touch Technology, dual Serial/USB Interface (no USB hub), Tall stand. Color: Beige See Replacement Call for Details
E619005 Entuitive 1529L, 15" AccuTouch (resistive) touch technology, Dual Serial/USB touch interface, RoHS, Anti-glare surface treatment, Color: Gray Check Availability Call for Details
E582772 Entuitive 1529L, 15" LCD, TouchMonitor, AccuTouch (resistive) Touch Technology, dual Serial/USB Interface (no USB hub), Tall stand. Color: Gray See Replacement Call for Details
E564135 Entuitive 1529L, 15" LCD, TouchMonitor, AccuTouch (resistive) Touch Technology, USB Interface, USB HID Mag Stripe Reader (Driver may be required) and US Power supply. Color: Dark gray See Replacement Call for Details
E273617 Entuitive 1529L, 15" IntelliTouch (surface wave) technology, USB touch interface, MSR human interface device, Anti-glare surface treatment, Color: Gray See Replacement Call for Details
E229149 Entuitive 1529L, 15" IntelliTouch touch (surface wave) technology, Dual Serial/USB touch interface, Anti-glare surface treatment, Color: Beige See Replacement Call for Details
E101984 Entuitive 1529L, 15" LCD, TouchMonitor, IntelliTouch (surface wave) Touch Technology, dual Serial/USB Interface (no USB hub), Tall stand. Color: Gray See Replacement Call for Details
C23311-000 Entuitive 1529L, 15" LCD, TouchMonitor, AccuTouch (resistive) Touch Technology, dual Serial/USB Interface (no USB hub), Short stand. Color: Beige See Replacement Call for Details
A16263-000 Entuitive 1529L, 15" LCD, TouchMonitor, AccuTouch (resistive) Touch Technology, USB Interface, USB Mag Stripe Reader See Replacement Call for Details
F41297-000 Entuitive 1529L, 15" LCD, TouchMonitor, AccuTouch (resistive) Touch Technology, USB with hub, Keyboard Emulation Mag Stripe Reader Check Availability Call for Details
E998829 Entuitive 1529L, 15" LCD All-in-One Desktop, CarrollTouch Touch Technology, USB Touch Interface, Windows XP, and Anti-glare Surface Treatment, Color: Dark gray Check Availability Call for Details
E980630 Entuitive 1529L, 15" LCD Desktop Touchmonitor, Surface Capacitive Touch Technology, Dual Serial-USB No Hub Interface, Tall Stand and, Color: Dark gray Check Availability Call for Details
E937444 Entuitive 1529L, 3000 Series 1529L Multifunction 15 inch LCD Desktop Touchmonitor (IntelliTouch Touch Technology, Dual Serial/USB Touch Interface, 1D Scanner and Antiiglare Surface Treatment) - Color: Dark gray Check Availability Call for Details
E908294 Entuitive 1529L, 3000 Series 1529L Multifunction 15 inch LCD Desktop Touchmonitor (CarrollTouch Touch Technology, Serial-USB Interface, USB Hub, 1D Scanner and Tall Stand) Color: Dark gray Check Availability Call for Details
E831960 Entuitive 1529L, 3000 Series 1529L Multifunction 15 inch LCD Desktop Touchmonitor (Acoustic Pulse Technology, USB Hub Interface, MSR-Keyboard, Fingerprint and Short Stand) - Color: Dark gray Check Availability Call for Details
E817828 Entuitive 1529L, 15" Acoustic Pulse technology, USB hub interface, Short stand, Color: Beige Check Availability Call for Details
E796307 Entuitive 1529L, 3000 Series 1529L Multifunction 15 inch LCD Desktop Touchmonitor (AccuTouch Touch Technology, USB Touch Interface, USB Hub, Display, MSR HID, Short Stand and Anti-glare Surface Treatment) - Color: Dark gray Check Availability Call for Details
E795441 Entuitive 1529L, 3000 Series 1529L Multifunction 15 inch LCD Desktop Touchmonitor (CarrollTouch Touch Technology, USB Touch Interface, Short Stand, HID MSR, and Antiiglare Surface Treatment) - Color: Dark gray Check Availability Call for Details
E785333 Entuitive 1529L, 15" LCD, TouchMonitor, AccuTouch (resistive) Touch Technology, dual Serial/USB Interface (no USB hub), Tall stand. Color: Beige Check Availability Call for Details
E780194 Entuitive 1529L, 1529L, 15", LCD Touch Screen Monitor, With Card Reader, Desktop, USB, Gray Check Availability Call for Details
E77078-000 Entuitive 1529L, 1529L, 15 inch LCD, Desktop, IntelliTouch, Serial/USB, Beige Check Availability Call for Details
E767165 Entuitive 1529L, 3000 Series 1529L Multifunction 15 inch LCD Desktop Touchmonitor (CarrollTouch Touch Interface, USB Touch Interface, MSR Keyboard, Display, and Anti-glare Surface Treatment) - Color: Gray Check Availability Call for Details
E759287 Entuitive 1529L, 1529L INTELLITOUCH XP EMB 1.0GHz, OUTDR CNTR ONLY Check Availability Call for Details
E700641 Entuitive 1529L, 15" Acoustic Pulse Recognition technology, USB hub interface, Short stand, Color: Dark gray Check Availability Call for Details
E688262 Entuitive 1529L, 3000 Series 1529L Multifunction 15 inch LCD Desktop Touchmonitor (CarrollTouch Technology, Serial-USB Interface, USB Hub, Display, Keyboard MSR, 2D Scanner and Short Stand) - Color: Dark gray Check Availability Call for Details

Page: 1 2 3 »

Accessories

Part # DescriptionAvailabilityPriceOrder
E005277 Accessories, Power brick (12V, 4.16A, 50W, US) for the 1517L, 1739L, 1729L, 1939L, and 2244L. Ships Free Today $28.93
E177037 Magnetic Strip Reader for 1515L touchsystems, Gray, Field Installable Ships Free Today $59.42
D82064-000 Black, soft tip stylus pen for Intellitouch monitors Ships Free Today $22.62
E245090 Accessories, Replacement Stand For 1515L, Dark gray Ships Free Today $47.85
E860319 Front Mount Bezel (Converts Rear to Front Mount) for the 1739L Ships Free Today $82.56
E252977 1529L Accessories, Short stand for 1529L Ships Free Today $46.80
E147211 "L" brackets for 1739L and 1939L Ships Free Today $16.90
E163604 Front Mount Bezel, Converts Rear Mount to Front Mount, for the 1939L Ships Free Today $93.53
E579652 Rack Mount Bracket, 19 inch Ships Free Today $82.56
E604766 Black Power Cable for 1529L And 1000 Series Ships Free Today $15.75
E042259 Cable, AC Power, 6 feet, Compatible with ELO Power Brick Ships Free Today $21.50
E203787 "L" (Side-Mount) Bracket Kit for 1590L and 1537L Ships Free Today $16.90
E622897 Accessories, Remote on-screen display Ships Free Today $26.05
ELO-1529LMSR MSR FOR 1529L AND 1529L TOUCHCOMPUTER, Dark gray
Ships Free in 3-5 Days
$85.00
See Price in Cart
E939253 Rack mount bracket for 1739L
Ships Free in 3-5 Days
$72.04
E931018 Service Contract - 2 year, Extended Warranty for 42" to 46" LCD Touchmonitor.
Ships Free in 3-5 Days
$192.08
E912553 Service Contract - 1 year, Extended Warranty for EMC-1 CPU Module.
Ships Free in 3-5 Days
$51.73
E900527 IDS ON-SITE EXCHANGE 3200L (CONTIGUOUS US ONLY)
Ships Free in 3-5 Days
$192.08
E887099 EXTERNAL POWER BRICK AND CABLE LVL 5 ARGENTINA
Ships Free in 3-5 Days
$28.19
E845500 Service Contract - 1 year, Extended Warranty for 32" IDS LCD.
Ships Free in 3-5 Days
$113.05
See Price in Cart
E826525 KIT, 2ND 320GB HDD KIT ESYXX B/C SERIES REV-B
Ships Free in 3-5 Days
$68.85
E809156 Service Contract - 2 year, Extended Warranty for EMC-2 CPU Module.
Ships Free in 3-5 Days
$76.06
E808755 Service Contract - 2 year, Extended Warranty for EMC-1 CPU Module.
Ships Free in 3-5 Days
$76.06
E794114 Service Contracts - 2 year, Extended Warranty for Touchcomputers, must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships Free in 3-5 Days
$159.86
E779043 Service Contract - 1 year, Extended Warranty for EMC-2 CPU Module.
Ships Free in 3-5 Days
$63.17
E755062 Service Contract - 1 year, Extended Warranty for 42" and 46" IDS.
Ships Free in 3-5 Days
$151.30
See Price in Cart
E739803 Service Contracts - 2 year, Extended Warranty for Touchcomputers, must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships Free in 3-5 Days
$157.25
See Price in Cart
E691354 Service Contract - 1 year, Advanced Unit Replacement Warranty for Touch Computers. Must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships Free in 3-5 Days
$125.80
See Price in Cart
E595376 3239L BRACKET KIT
Ships Free in 3-5 Days
$13.21
E521635 Accessories, Power supply (for the 1725L, 1727L, 1747 and 1767L)
Ships Free in 3-5 Days
$76.50
See Price in Cart
E512729 Service Contract - 2 year, Extended Warranty for 32" LCD Touchmonitor.
Ships Free in 3-5 Days
$153.41
E484257 1938L Accessories, Mounting Bracket Kit (for the 1938L)
Ships Free in 3-5 Days
$16.90
E480320 Accessories, Power Brick (12V DC) for 1900L and 2200L
Ships Free in 3-5 Days
$27.12
E450339 1928L, Power cable for 1928L power brick
Ships Free in 3-5 Days
$20.52
E448370 Touch screen Accessories, External Power Brick, Medical Grade for 1528L and 1928L. Requires Power Cable: (Part# E450339). Ships Free Today $57.70
E445655 Service Contract - 1 year, Extended Warranty for 32" LCD Touchmonitor.
Ships Free in 3-5 Days
$114.73
E335194 1928L, Gray stand for 1915L and 1928L
Ships Free in 3-5 Days
$42.60
E330676 Service Contract - 1 year, Extended Warranty for IDS 2.2GHz Computer.
Ships Free in 3-5 Days
$51.01
E319500 Service Contracts - 1 year, Extended Warranty for Touchcomputers, must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships Free in 3-5 Days
$87.55
See Price in Cart
E295293 Vesa check stand mount for the 1529L
Ships Free in 3-5 Days
$16.90
E295006 Vesa Check Stand Mount for the 1529L Ships Free Today $61.52
E264383 STAND, 1517L. GRAY
Ships Free in 3-5 Days
$47.85
E220928 Service Contract - 1 year, Advanced Unit Replacement Warranty for Touch Computers. Must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships Free in 3-5 Days
$125.80
See Price in Cart
E214976 Panel mount brackets for 17" Mount LCD
Ships Free in 3-5 Days
$93.50
See Price in Cart
E184020 Service Contract - 2 year, Extended Warranty for 55"to 65" LCD Touchmonitor.
Ships Free in 3-5 Days
$230.76
E145919 15D2, Magnetic stripe reader (3-track) for the 15D1 and 17D2 Touchcomputers
Ships Free in 3-5 Days
$57.32
E126594 Service Contract - 1 year, Extended Warranty for IDS 3.0 GHz Computer.
Ships Free in 3-5 Days
$62.07
E063587 Service Contract - 1 year, Extended Warranty for 55"to 65" LCD Touchmonitor.
Ships Free in 3-5 Days
$192.08
E028025 2 GB DDR, MEMORY LOW PROFILE, D SERIES REV C TOUCH COMPUTERS Ships Free Today $47.45
D84822-000 Rack Mount Bracket for 15" Touchmonitors
Ships Free in 3-5 Days
$161.50
See Price in Cart
E191105 Accessory, Universal Accessories, Stand, Gray, For the 1715L Gray Ships Free Today $60.29
E323425 Front mount bezel for 1537L Ships Free Today $72.04

Elo 1529L Details

1529L Multifunction 15" LCD Desktop Touchmonitor (3000 Series)

Features

  • Higher brightness, better contrast, and wider viewing angle than most 15" LCDs
  • "Designed for touch" features such as a stable tilt base
  • Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch Surface-Wave Technology or CarrollTouch Infrared Technology
  • Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface driver (HID) class specification 1.1
  • Optional rear-facing customer display available as either a 20x2 USB vacuum fluorescent display (VFD) or a 12.1" LCD monitor with or without touch.
  • Optional biometric fingerprint recognition device
  • USB hub available on certain configurations
  • Choice of gray or beige finish, as well as short or tall monitor stand
  • Single power supply for all optional devices
  • Cables hidden from user's view
  • Built-in speakers located in display head
  • Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
  • Mounting holes on base bottom for tabletop security
  • Base removable, VESA mounting option
  • Controls on the side rather than the front, plus lockout function for public use
  • Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
  • Diagnostic LEDs for touch and video
  • Long-lasting product cycle
  • Worldwide agency approvals

Specifications

Model 1529L
Series 3000
Availability Worldwide
Case/Bezel color Dark gray or beige
Base Short or tall stand
Display Size: 15" diagonal
Type: Active matrix TFT LCD
Aspect ratio: 4 x 3
Useful screen area Horizontal: 11.98" (304 mm)
Vertical: 8.98" (228 mm)
Monitor dimensions
(max, with short stand)
Width: 13.99" (355 mm)
Height (inc. base): 11.27" (286 mm)
Depth (inc. base): 10.44" (265 mm)

Dimensions vary with stand type and position

Optimal (native) resolution 1024 x 768
Other supported resolutions 1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
Colors 16.2 million colors, 6 bit with dithering
Brightness
LCD panel
350 cd/m2 (typical)
Brightness
LCD panel with touchscreen
AccuTouch: 287 cd/m2 (typical)
CarrollTouch: 322 cd/m2 (typical)
IntelliTouch: 322 cd/m2 (typical)
Response time 25 msec (typical)
Viewing angle
(typical, from center)
Horizontal (left/right): ±75° or 150° total
Vertical (up/down): 75°/50° or 125° total
Contrast ratio 400:1
Power dissipation 30 W typical
Input video format RGB analog; DVI-D
Input video signal connector Mini D-Sub 15-Pin VGA type; DVI-D connector
Input frequency Horizontal: 31E0 kHz
Vertical: 56E5 Hz
Power supply Type: AC/DC input internal power supply
AC input (line) voltage: 85E65 VAC, 47E3 Hz.
DC input (line) voltage: 12.0V ± 0.75V
Power: 50 W max.; only AC power cable supplied; 12V power supply optional
Temperature Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity Operating: 20E0%
Storage: 5E5%
noncondensing
Weight
(approx., with all options)
Actual: 14.44 lb (6.55 kg)
Shipping: 21.16 lb (9.60 kg)
Warranty Monitor: 3 years
Backlight lamp life: min 40,000 hours to half brightness
Agency approvals UL/cUL (*recognized component), FCC-A, TÃœV-GS, CE, VCCI, C-Tick
Speakers Two watt/channel speakers located in display head
On-screen display (OSD) OSD lockouts for power and user controls
User's controls OSD control menu: menu, up, down, select, power
OSD controls: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, OSD language (English, French, German, Spanish, Japanese), input select
OSD disable/enable: power, OSD menu
Mounting options 75 mm VESA mount
Removable base
Other features ENERGY STAR
2 stage DPMS
VESA DDC Plug and Play
Kensington lock

Optional Peripherals

LCD Customer Display
Colors 16.2 million colors, 6 bit with dithering
Optimal resolution 800 x 600
Brightness
LCD panel
180 cd/m2
Brightness
LCD panel with touchscreen
IntelliTouch: 166 cd/m2
Contrast ratio 150:1
Useful screen area Horizontal: 9.69" (246 mm)
Vertical: 7.26" (184.5 mm)
Input video format RGB analog
Input video signal connector Mini D-Sub 15-Pin VGA Type
VFD Customer Display
Type Vacuum Fluorescent Display (VFD), 2 rows, 20 characters/row
Characters 5 x 7 dot matrix configuration, 9.5 mm height, 6.2 mm width, pixel addressable
Format/color ASCII/blue-green
Fingerprint Reader
Type Optical
Verifying time <1 sec
Sensing prism hardness 7 Mohs
Resolution 356 x 292 pixels
Image speed Capture: 600 ms/frame
Transfer: 500 bytes/ms
Image capture error rate <0.1%
Magnetic Stripe Reader
Tracks 3
Message format ASCII
Card speed 3 to 50 inch/sec (7.6 to 127 cm/sec)
The Elo 1529L is also known as the Elo Touch Systems 1529L .
